2U Dual Processor Rackmount Servers

Flexible Solution for High-Demand Workloads

The industry's broadest portfolio of performance-optimized 2U dual-processor servers to match your specific workload requirements

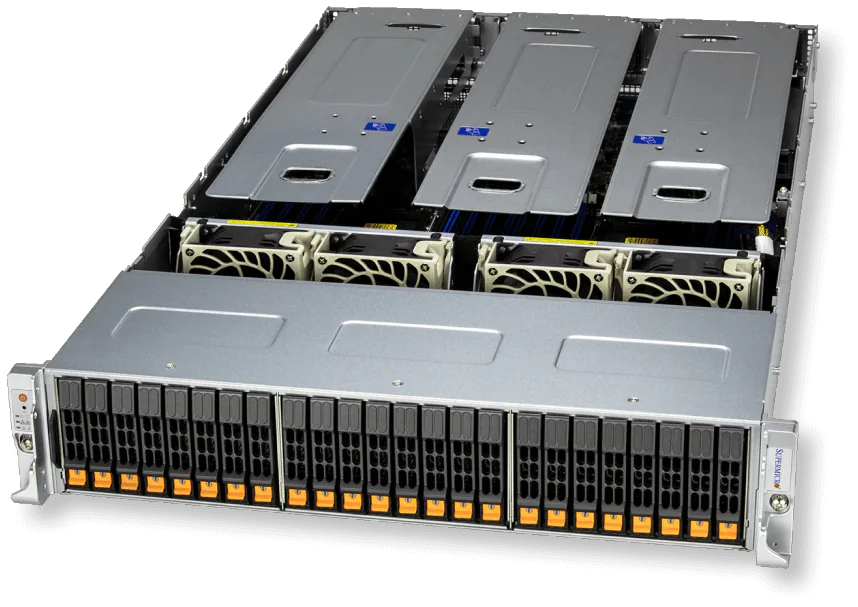

X14 DP Hyper with Intel Xeon 6

Flagship Rackmount Servers for a New Generation of Performance and Efficiency

CPU: Intel Xeon 6700 series processors with E-cores
Memory: Up to 32 DIMMs, 2TB DDR5
Drives: Up to 24 hot-swap 2.5" NVMe/SATA
PCIe: Up to 8 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

X14 DP CloudDC with Intel Xeon 6

OCP DC-MHS modular design for scale-out data centers

CPU: Intel Xeon 6700 series processors with E-cores
Memory: Up to 32 DIMMs, 2TB DDR5
Drives: Up to 24 2.5" NVMe/SAS/SATA
PCIe: Up to 4 PCIe 5.0 x16 slots + 2 PCIe 5.0 AIOM slots + 1 DC-SCM

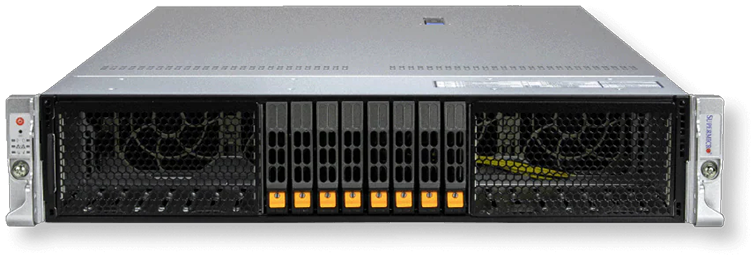

X13/H13 Hyper with PCIe 5.0

Next-Generation Performance with Maximum Flexibility for Enterprise Applications

CPU: 5th/4th Gen Intel Xeon Scalable Processors or AMD EPYC 9004 Series Processors
Memory: Up to 32 DIMMs, 8TB DDR5, support for Intel Optane Persistent Memory
Drives: Up to 24 hot-swap 2.5” NVMe/SATA or 12 hot-swap 3.5” NVMe/SATA
PCIe: Up to 4 PCIe 5.0 x16 or 8 PCIe 5.0 x8 slots

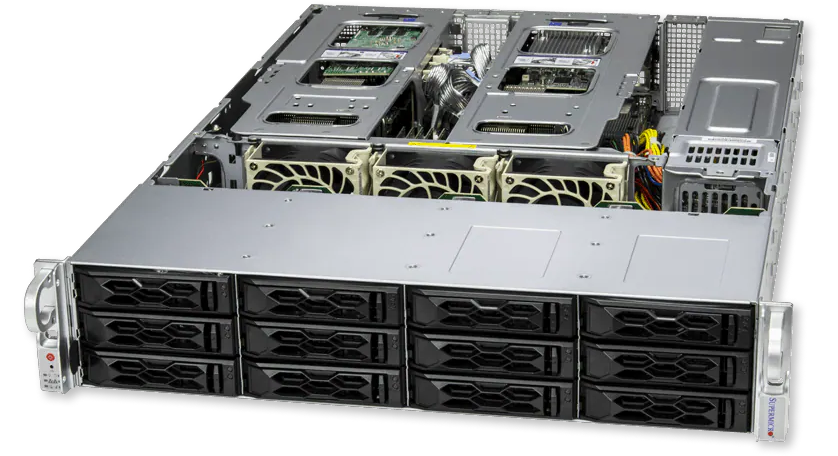

X13 DP CloudDC with PCIe 5.0

Next-Generation All-in-One Servers Providing High Storage and Expansion Capacity and Flexible I/O Options for Cloud Scale Data Centers

CPU: 5th/4th Gen Intel Xeon Scalable Processors
Memory: Up to 16 DIMMs, 4TB DDR5, support for Intel Optane Persistent Memory
Drives: Up to 12 hot-swap 3.5" NVMe/SAS/SATA
PCIe: Up to 4 PCIe 5.0 x16 (FHHL) slots

X12/H12 Hyper and Ultra with PCIe 4.0

Ultimate Performance and Configurability for Enterprise Applications

CPU: 3rd Gen Intel Xeon Scalable Processors or AMD EPYC 7003/7002 Series Processors
Memory: Up to 32 DIMMs, 8TB DRAM or 12TB Intel Optane Persistent Memory
Drives: Up to 24x 2.5" or 12x 3.5" Hot-swap SATA/SAS/NVMe
PCIe: Up to 8 PCIe 4.0 slots

X12 CloudDC with PCIe 4.0

High-performance Storage with Flexible I/O Options for Custom Applications

CPU: 3rd Gen Intel Xeon Scalable Processors
Memory: Up to 16 DIMMs, 4TB DRAM or with 6TB Intel Optane Persistent Memory
Drives: Up to 12 hot-swap 3.5" NVMe/SAS/SATA
PCIe: Up to 4 PCIe 4.0 x16 (FHHL) slots

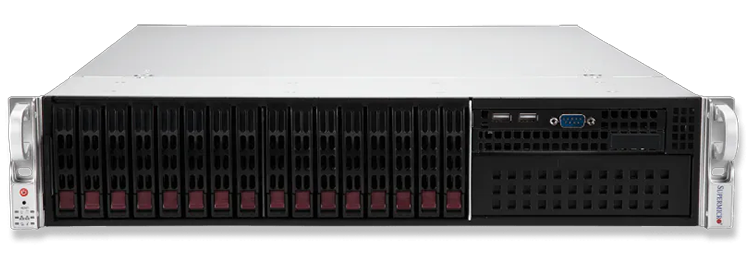

X13/X12/H12/X11 Mainstream

Cost-effective servers for enterprise server and data center applications

CPU: 5th, 4th, 3rd or 2nd Gen Intel Xeon Scalable Processors or AMD EPYC 7003/7002 Series Processors
Memory: Up to 16 DIMMs, 4TB
Drives: Up to 16 hot-swap SAS/SATA (NVMe via AOC) + optional DVD-ROM
PCIe: Up to 6 PCIe 5.0 slots (X13), 6 PCIe 4.0 slots (X12/H12) or 6 PCIe 3.0 slots (X11)

X14 DP Hyper with Intel Xeon 6

X14

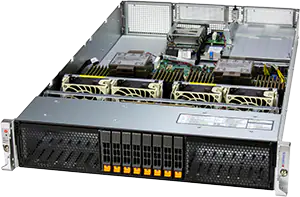

SYS-222H-TN

2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots

CPU: 2
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 32
Drive Size: 2.5"
Drive: 8
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Native)

X14 DP CloudDC with Intel Xeon 6

X14

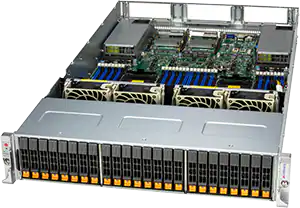

SYS-222C-TN

2U CloudDC with DC-MHS, 24 hot-swap 2.5" NVMe/SATA/SAS bays, 6 PCIe 5.0 x16\/x8 slots and 2 PCIe 5.0 x16 AIOM slots

CPU: 2
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 32
Drive Size: 2.5"
Drive: 24
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X13/H13 Hyper with PCIe 5.0

X13

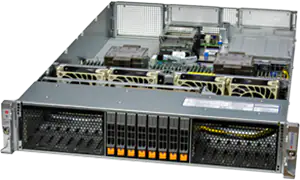

SYS-221H-TNR

2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 8
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X13

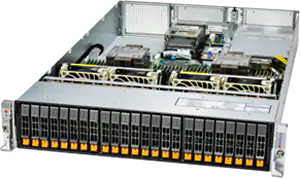

SYS-221H-TN24R

2U Hyper with 24 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 24
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X13

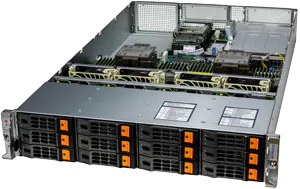

SYS-621H-TN12R

2U Hyper with 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 3.5"
Drive: 12
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

H13

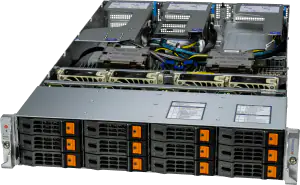

AS-2025HS-TNR

2U Hyper with 12 hot-swap 3.5" NVMe/SAS/SATA bays and up to 4 PCIe 5.0 x16 slots

CPU: 2
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 24
Drive Size: 3.5"
Drive: 12
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

H13

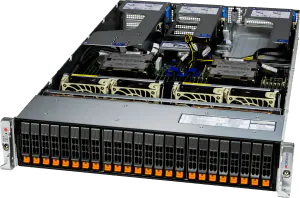

AS-2125HS-TNR

2U Hyper with\u00a024 hot-swap 2.5" NVMe/SATA bays and 1 PCIe 5.0 x16 slot

CPU: 2
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 24
Drive Size: 2.5"
Drive: 24
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X13 DP CloudDC with PCIe 5.0

X13

SYS-621C-TN12R

2U DP CloudDC with 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 12
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X12/H12 Hyper and Ultra with PCIe 4.0

X12

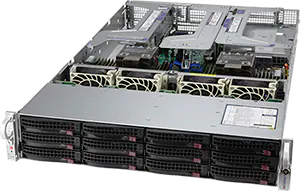

SYS-620U-TNR

2U Ultra with 12 NVMe/SAS/SATA bays and 8 PCIe slots

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 3.5"
Drive: 12
Networking: 2x 10G, 4x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

X12

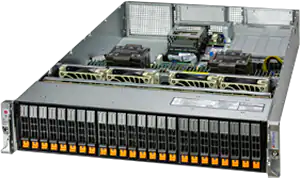

SYS-220H-TN24R

2U DP Hyper with 24 hot-swap NVMe/SAS/SATA bays and PCIe 4.0

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 24
Networking: 2x 1G, 4x 1G, 4x 10G, 2x 25G, 4x 25G, 2x 100G, AIOM
Interface: SAS (Optional)
NVMe (Optional)
SATA (Optional)

X12

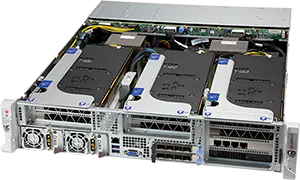

SYS-220HE-FTNRD

2U Hyper with 6 SAS/SATA bays and DC PSU

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 6
Networking: 2x 1G, 4x 1G, 4x 10G, 2x 25G, 4x 25G, 2x 100G, AIOM
Interface: SAS (Optional)
NVMe (Optional)
SATA (Optional)

X12

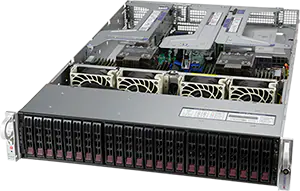

SYS-220U-TNR

2U Ultra with 24 NVMe\/SAS\/SATA bays, 8 PCIe slots

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 24
Networking: 2x 10G, 4x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

X12

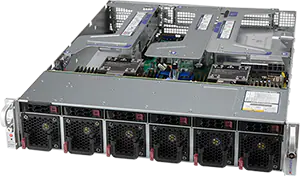

SYS-220U-MTNR

2U Ultra with 6 NVMe/SAS/SATA bays and 8 PCIe slots

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 6
Networking: 2x 10G, 4x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

X12

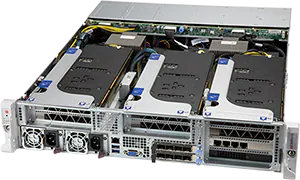

SYS-220HE-FTNR

2U Hyper with 6 NVMe/SATA bays

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 12
Networking: 2x 1G, 4x 1G, 4x 10G, 2x 25G, 4x 25G, 2x 100G, AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X12

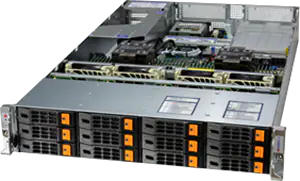

SYS-620H-TN12R

2U Hyper with 12 NVMe/SAS/SATA bays and up to 8 PCIe slots with GPU support

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 32
Drive Size: 3.5"
Drive: 12
Networking: 2x 1G, 4x 1G, 4x 10G, 2x 25G, 4x 25G, 2x 100G, AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

H12

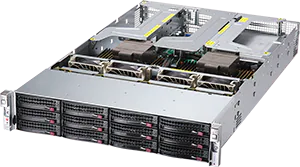

AS-2024US-TNR

2U DP Ultra with up to 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 4.0 slots

CPU: 2
CPU Type: AMD EPYC 7002/7003 series processors
DIMM Slots: 32
Drive Size: 3.5"
Drive: 12
Networking: AIOM
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

H12

AS-2024US-TRT

2U Ultra with 12 SATA bays and 4 PCIe 3.0 x16 slots

CPU: 2
CPU Type: AMD EPYC 7002/7003 series processors
DIMM Slots: 32
Drive Size: 3.5"
Drive: 12
Networking: 2x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

H12

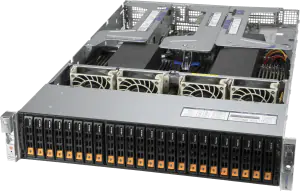

AS-2124US-TNRP

2U Ultra with 24 NVMe bays and dual 10GbE + dual 10G SFP+

CPU: 2
CPU Type: AMD EPYC 7002/7003 series processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 24
Networking: 4x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

X12 CloudDC with PCIe 4.0

X12

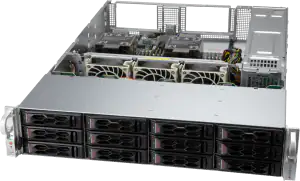

SYS-620C-TN12R

2U CloudDC with 12 3.5" NVMe/SAS/SATA bays and up to 4 PCIe 4.0 x16 slots

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 12
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Native)

X13/X12/H12/X11 Mainstream

X13

SYS-621P-TR

2U Mainstream with 6 PCIe 5.0 slots and dual 1GbE LAN

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 1G
Interface: NVMe (Optional)
SATA (Native)

X13

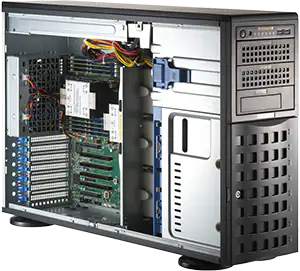

SYS-741P-TR

DP 4U rackmount tower workstation with 1GbE for virtualization and enterprise server applications

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 1G
Interface: NVMe (Optional)
SATA (Native)

X13

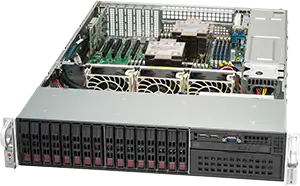

SYS-221P-C9R

2U Mainstream with 5 PCIe 5.0 slots and dual 1GbE LAN

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 16
Networking: 2x 1G
Interface: SAS (Native)
NVMe (Optional)
SATA (Native)

X13

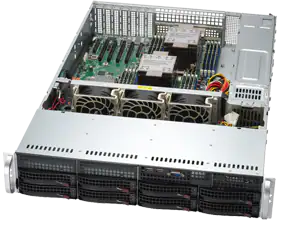

SYS-621P-TRT

2U Mainstream with 6 PCIe 5.0 slots and dual 10GbE LAN

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 10G
Interface: NVMe (Optional)
SATA (Native)

X13

SYS-741P-TRT

DP 4U rackmount tower workstation with 10GbE for virtualization and enterprise server applications

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 10G
Interface: NVMe (Optional)
SATA (Native)

X13

SYS-221P-C9RT

2U Mainstream with 5 PCIe 5.0 slots and dual 10GbE LAN

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 16
Networking: 2x 10G
Interface: SAS (Native)
NVMe (Optional)
SATA (Native)

X12

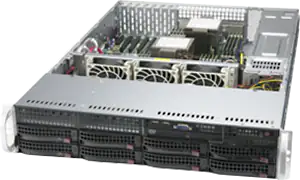

SYS-620P-TRT

2U Mainstream with 8 hot-swap SATA bays, PCIe 4.0 slots and 10GbE

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 10G
Interface: NVMe (Optional)
SATA (Native)

X12

SYS-620P-TR

2U Mainstream with 8 hot-swap SATA bays and 6 PCIe 4.0 slots

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 1G
Interface: NVMe (Optional)
SATA (Native)

X12

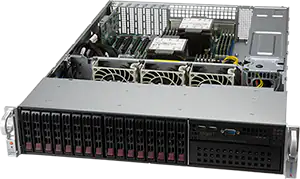

SYS-220P-C9R

2U Mainstream with 8 hot-swap SAS + 8 SATA bays and 5 PCIe 4.0 slots

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 16
Networking: 2x 1G
Interface: SAS (Native)
NVMe (Optional)
SATA (Native)

X12

SYS-220P-C9RT

2U Mainstream with 8 hot-swap SAS + 8 SATA bays and 5 PCIe 4.0 slots

CPU: 2
CPU Type: 3th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 16
Networking: 2x 10G
Interface: SAS (Native)
NVMe (Optional)
SATA (Native)

H12

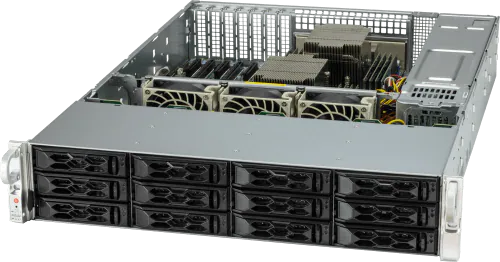

AS-2024S-TR

2U Mainstream with dual AMD EPYC and 6 PCIe 4.0 slots

CPU: 2
CPU Type: AMD EPYC 7002/7003 Series processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 12
Networking: 2x 1G
Interface: NVMe (Native)
SATA (Native)

X11

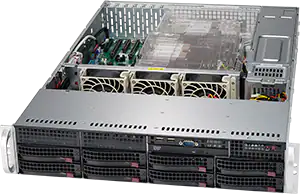

SYS-6029P-TR

2U Mainstream with 8 hot-swap 3.5" SATA bays and 6 PCIe 3.0 slots

CPU: 2
CPU Type: 2th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 1G
Interface: SAS (Optional)
NVMe (Native)
SATA (Native)
NVMe (Optional)

X12

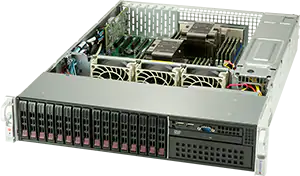

SYS-2029P-C1R

2U Mainstream with 8 SAS + 8 SATA hot-swap bays and 5 PCIe 3.0 slots

CPU: 2
CPU Type: 2th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 16
Networking: 2x 1G
Interface: SAS (Native)
SATA (Native)
SATA (Optional)

X11

SYS-6029P-TRT

2U Mainstream with 8 hot-swap 3.5" SATA bays, 6 PCIe 3.0 slots and 10GbE

CPU: 2
CPU Type: 2th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 2x 10G
Interface: SATA (Native)
NVMe (Native)
SATA (Optional)
NVMe (Optional)

H12

SYS-2029P-C1RT

2U Mainstream with 8 SAS + 8 SATA hot-swap bays, 5 PCIe 3.0 slots and 10GbE

CPU: 2
CPU Type: 2th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 16
Networking: 2x 10G
Interface: SAS (Optional)
SATA (Native)
SATA (Optional)
