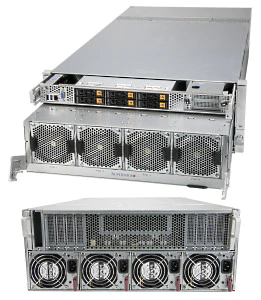

SuperMicro A+ Server 4124GO-NART
Small Footprint, High Performance

SuperMicro A+ Server 4124GO-NART


Supermicro Products
SuperMicro Products
SuperMicro A+ Server 4124GO-NART
#AS-4124GO-NART
Get a Quote!

Click here to jump to more pricing!

Key Features:

  • High Performance Computing
  • AI / Deep Learning

Specifications:

Product SKUs
AS -4124GO-NART
  • A+ Server 4124GO-NART
Motherboard
Super H12DGO-6
Processor/Cache
CPU
  • Dual AMD EPYC™ 7002 Series Processors
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 128 Cores (64 per CPU)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU Support
  • Supports HGX A100 8-GPU 40GB (HBM2) or 80GB(HBM2e) with NVLink/NVSwitch GPU interconnect and PCI-E Gen4 host CPUs
System Memory
Memory Capacity
  • 32 DIMM slots
  • Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type
  • 3200MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2600 BMC
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • Provided by AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA Connector (front)
COM Port
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash ROM
Management
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Pricing Notes:
