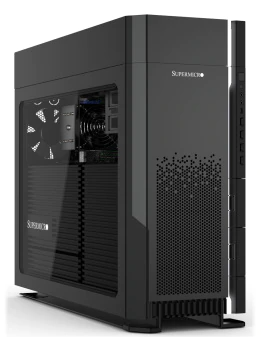

SuperMicro A+ SuperWorkstation 5014A-TT
Small Footprint, High Performance

SuperMicro A+ SuperWorkstation 5014A-TT


SuperMicro Products
SuperMicro A+ SuperWorkstation 5014A-TT
#AS-5014A-TT
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Key Features:

  • Media and Entertainment Content Creation
  • Product Design and Engineering Simulation
  • AI and Deep Learning

Specifications:

Product SKUs
SuperWorkstation
  • AS -5014A-TT (Black)
Motherboard
Super M12SWA-TF
Processor/Cache
CPU
  • Single AMD Ryzen™ Threadripper™ PRO 3000WX Series processor
  • Socket sWRX8/SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM
  • 8-channel memory bus
On-Board Devices
Chipset
  • AMD WRX80
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • 10G LAN: Single LAN via Marvel AQC110C 10G Ethernet Controller
  • 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI)
Audio
  • 7.1 channel HD Audio by Realtek LC4050H + ALC1220
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 GbE Ethernet LAN port (shared with IPMI)
USB
  • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
  • 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)
  • 5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
  • 2 USB 2.0 via header
Video
  • 1 VGA port (dedicated for IPMI)
Audio
  • 7.1 HD Audio with optical S/PDIF
Serial Port / Header
  • 1 COM port (rear)
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
Management
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
