Super Micro

All-Flash NVMe

Highest Performing Storage Solutions for Advanced Computing


X14 All-Flash NVMe X13/H13/X12 All-Flash NVMe X12/H12 Hyper and Ultra

Overview

Highlights

  • Maximum throughput and density for performance-intensive storage applications
  • Enhanced support for EDSFF E3.S form factor drives
  • Ultra-high density - up to 960TB in 1U or 1.92PB in 2U

Innovations

  • Symmetrical dual processor architecture shortens data paths to reduce latency
  • Supports up 8 CXL 2.0 devices for increased shared memory pool
  • New support for the OCP Data Center Modular Hardware System (DC-MHS)

Optimized for:

  • Enterprise Applications
  • Data Center
  • Hyperscale / Hyperconverged
  • Software-defined Storage
  • Data Warehousing

X14 All-Flash NVMe

The Architecture for Low-Latency, High-Throughput Storage

  • Storage: Up to 32 hot-swap E3.S drives or 16 hot-swap E3.S drives + 8 fixed E3.S 2T CXL Type 3 bays
  • CPU: Dual Intel Xeon 6700 series processors with E-cores
  • Memory: Up to 32 DIMMs, 8TB DDR5
  • Expansion: Up to 3 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

X13/H13/X12 All-Flash NVMe

Revolutionary Storage Density, Performance, and Capacity

  • Storage: Up to 24 E1.S (9.5mm or 15mm)/2.5" U.2 NVMe, or 32 E3.S
  • CPU: Dual 5th/4th Gen Intel Xeon Scalable or Single AMD EPYC 9004 Series processors
  • Memory: Up to 32 DIMMs, 8TB DDR5
  • Expansion: Up to 2 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

X12/H12 Hyper and Ultra with PCIe 4.0

Ultimate Performance and Configurability for Enterprise Applications

  • CPU: 3rd Gen Intel Xeon Scalable Processors or AMD EPYC 7003/7002 Series Processors
  • Memory: Up to 32 DIMMs, 8TB DRAM or 12TB with Intel Optane Persistent Memory
  • Drives: Up to 24x 2.5" or 12x 3.5" Hot-swap SATA/SAS/NVMe
  • PCIe: Up to 8 PCIe 4.0 slots

X14 All-Flash NVMe

X13

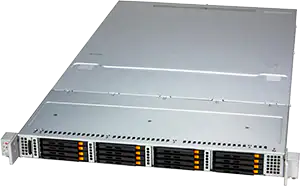

SSG-122B-NE316R

1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0

  • CPU: 1
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: 4th/5th Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 6
  • Networking: 1x 1G, AIOM
  • Interface: NVMe (Native)

X13

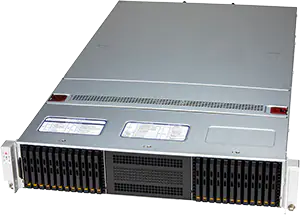

SSG-222B-NE3X24R

2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0

  • CPU: 1
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: 4th/5th Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 3.5"
  • Drive: 8
  • Networking: 1x 1G, AIOM
  • Interface: NVMe (Native)

back to top

X13/H13/X12 All-Flash NVMe

H13

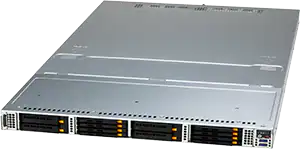

SSG-121E-NE3X12R

1U front-loading all-flash storage server with 8 E3.S NVMe drives and 4 E3.S 2T CXL bays

  • CPU: 2
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: NA
  • DIMM Slots: 32
  • Drive Size: E3.S 1T
  • Drive: 8
  • Networking: AIOM
  • Interface: NVMe (Native)

H13

ASG-1115S-NE3X12R

1U front-loading all-flash storage server with 4x E3.S CXL (16.8mm) + 8x hot-swap E3.S (7.5mm) NVMe drive bays and PCIe 5.0

  • CPU: 1
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: AMD EPYC 9004 Series Processors
  • DIMM Slots: 24
  • Drive Size: E3.S 1T
  • Drive: 8
  • Networking: AIOM
  • Interface: NVMe (Native)

X13

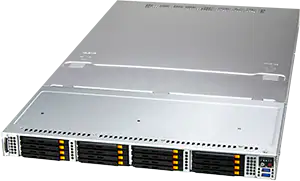

SSG-121E-NE316R

1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0

  • CPU: 2
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
  • DIMM Slots: 32
  • Drive Size: E3.S 1T
  • Drive: 16
  • Networking: AIOM
  • Interface: NVMe (Native)

X13

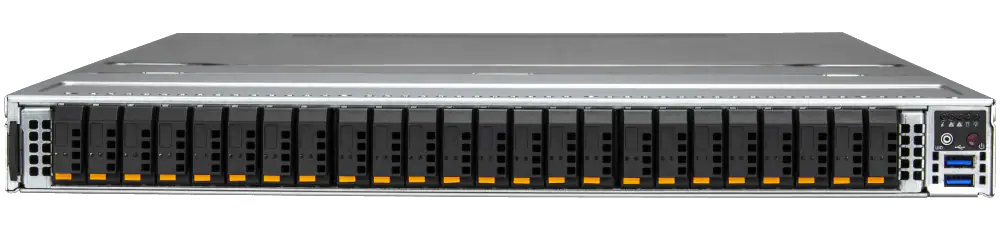

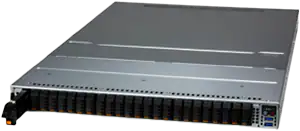

SSG-121E-NES24R

1U front-loading all-flash storage server with 24 E1.S NVMe drives and PCIe 5.0

  • CPU: 2
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
  • DIMM Slots: 32
  • Drive Size: E3.S
  • Drive: 24
  • Networking: AIOM
  • Interface: NVMe (Native)

X13

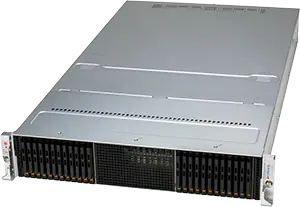

SSG-221E-NE324R

2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0

  • CPU: 2
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
  • DIMM Slots: 32
  • Drive Size: E3.S 1T
  • Drive: 24
  • Networking: AIOM
  • Interface: NVMe (Native)

H13

ASG-1115S-NE316R

1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0

  • CPU: 1
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: AMD EPYC 9004/9005 Series Processors
  • DIMM Slots: 24
  • Drive Size: E3.S 1T
  • Drive: 16
  • Networking: AIOM
  • Interface: NVMe (Native)

H13

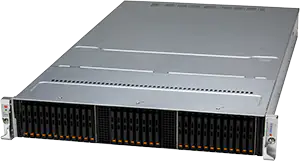

ASG-2115S-NE332R

2U front-loading all-flash storage server with 32 E3.S NVMe drives and PCIe 5.0

  • CPU: 1
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: AMD EPYC 9004/9005 Series Processors
  • DIMM Slots: 24
  • Drive Size: E3.S 1T
  • Drive: 32
  • Networking: AIOM
  • Interface: NVMe (Native)

X12

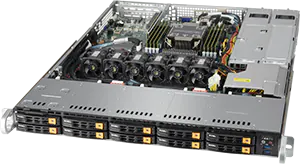

SSG-110P-NTR10

1U UP front-loading storage server with 10 hot-swap 2.5" NVMe bays and PCIe 4.0

  • CPU: 1
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 8
  • Drive Size: 2.5"
  • Drive: 10
  • Networking: 2x 10G
  • Interface: NVMe (Native)

back to top

X12/H12 Hyper and Ultra with PCIe 4.0

H12

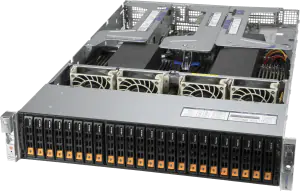

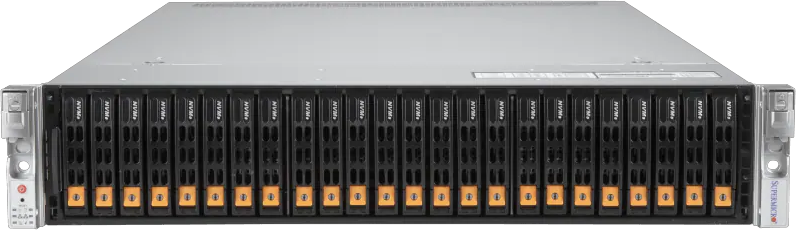

AS-2124US-TNRP

2U Ultra with 24 NVMe bays and dual 10GbE + dual 10G SFP+

  • CPU: 2
  • Max GPU: NA
  • Supported GPUs: NA
  • CPU Type: AMD EPYC 7002/7003 Series Processors
  • DIMM Slots: 32
  • Drive Size: 2.5"
  • Drive: 24
  • Networking: 4x 10G
  • Interface: NVMe (Native)
    SAS (Optional)
    SATA (Optional)
