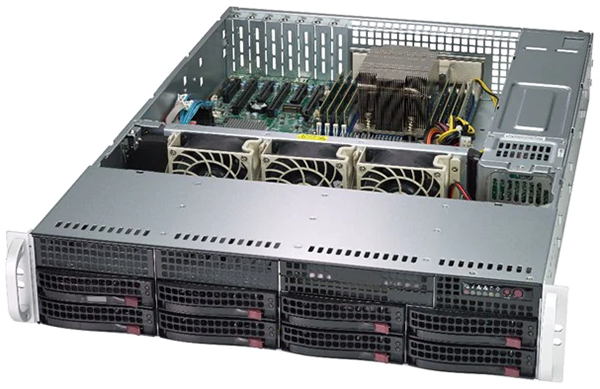

Supermicro A+ Server 2013S-C0R
SuperServer 8 Hot-Swap 3.5" SAS3/SATA3 Drive Bays  (on-board Broadcom 3008 IR mode),  1 M.2 NVMe SSD slot Supported

Overview:

Key Features

• Cloud and Virtualization needs
• Connectivity/Storage Computer Nodes
• Database Processing & Storage
• High End Enterprise Server
• Hosting & Application delivery


Hardware Features:

• Single AMD EPYC 7000-Series Processor
• Up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
• Expansion slots:
  • 3 PCI-E 3.0 x16 (low profile);
  • 3 PCI-E 3.0 x8 (low profile)
  • M.2 Interface: PCI-E 3.0 x4 (NVMe based)
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: Onboard M-key Number of M.2: Single
• IPMI 2.0 + KVM with dedicated LAN
• 2x 1GbE LAN ports via Intel I210
• 8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode), 1 M.2 NVMe SSD slot Supported
• 740W Redundant Platinum Level high-efficiency Power Supplies (Full redundancy based on configuration and application load)

Supermicro New Generation A+ Solutions - AMD EPYC Processor-based Solutions

A+ Servers are Your Best Choice!

Supermicro's latest range of AMD EPYC 7000 Series SoC-based server and storage solutions offer new levels of optimized performance per watt per dollar, and deliver outstanding core density, superior memory bandwidth, and unparalleled I/O capacity.

Supporting up to 32 "Zen" cores and 64 threads per socket, these Supermicro solutions are tightly coupled with high-throughput, low-latency, hot-swappable NVMe storage, up to 4TB of DDR4 memory over 8 memory channels per socket, and up to 128 PCI-E 3.0 lanes on a dual- or single-socket system.

Supermicro's new generation A+ solutions supporting AMD EPYC enable a new range of powerful and energy-efficient server options to radically lower data center TCO through an optimized balance of compute, memory, I/O, and storage resources.

• Most Comprehensive Line of AMD-based Rackmount/Tower Servers
• Redundant Components (virtually eliminating system downtime)
• Best Price/Performance Ratio
• Superior Product Design (all under one roof)
• Consistently First-to-Market
• Maximized Performance
• Reduced Total Cost of Ownership (TCO)
• Top-Notch Finishing Materials
• 3-Year Limited Warranty
• 24-Hour Server Support
• Uncompromising Quality Control

Specifications:

A+ Server 2013S-C0R (Black) Specifications
Motherboard	H11SSL-C
Processor/Chipset
CPU	Dual AMD EPYC 7000-series Processors Socket SP3
Cores	Up to 32 Cores
Chipset	System on Chip (SoC)
System Memory
Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA/SAS	SATA3 (6 Gbps) Broadcom 3008 SAS3 (12 Gbps) controller IR mode; RAID 0, 1, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Connectivity	Intel I210 Controller
VGA	ASPEED AST2500 BMC
Expansion Slots
PCI Express	3 PCI-E 3.0 x16 (low profile) 3 PCI-E 3.0 x8 (low profile)
M.2	Interface: PCI-E 3.0 x4 (NVMe based) Form Factor: 2280, 22110 Key: Onboard M-key Number of M.2: Single
Input / Output
SATA/SAS	8 SATA3 (6 Gbps) / 8 SAS3 ports via Broadcom 3008
LAN	2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	3 USB 3.0 ports 2 USB 2.0 ports
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Chassis
Form Factor	2U Rackmount
Model	SC825TQ-R740LPB
Dimensions and Weight
Width	17.2" (437mm)
Height	3.5" (89mm)
Depth	25.5" (647mm)
Weight	Net Weight: 35.5 lbs (16.1 kg) Gross Weight: 69 lbs (31.2 kg)
Front Panel
Buttons	Power On/Off button System Reset butto
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED
Drive Bays / Storage
Hot-swap	8 hot-swap 3.5" SAS3/SATA3 Drive Bays
Peripheral Drives
DVD-ROM	Slim DVD-ROM drive (optional)
Backplane
HDD Backplane	Supports 8 SAS3/SATA3 3.5" HDD
System Cooling
Fans	3 heavy-duty PWM fans with optimal fan speed control
Power Supply with Power Distributor
Power	740W Redundant high-efficiency power supply with PMBus
AC Input	100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output	4 Amp @ +5V standby 61.7 Amp @ +12V
Certification	UL/cUL/CB/BSMI/CE/CCC Platinum Certified
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
FAN	Fan status tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard	MBD-H11SSL-C	1	Super H11SSL-C Motherboard
Chassis	CSE-825TQ-R740LPB	1	Black 2U SC825TQ LP chassis w/ Red. 740W PWS
HD Backplane	BPN-SAS3-825TQ	1	8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable	CBL-SAST-0948	2	MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG
Heat Sink	SNK-P0063P	1	2U Passive CPU Heat Sink for AMD Socket SP3 Processors
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Optional Parts List
	Part Number	Qty	Description
Network Card(s)	AOC-S40G-i2Q	-	Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
	AOC-SGP-i2	-	Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
	AOC-SGP-i4	-	Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
	AOC-STG-b4S	-	Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
	AOC-STGN-i2S	-	Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
	AOC-STGN-i1S	-	Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
	AOC-STG-i2T	-	Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
	AOC-STG-i2	-	Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray	MCP-220-00043-0N	-	STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
	MCP-220-00118-0B	-	STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray.
Cable Management Arm	MCP-290-00073-0N	-	Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Adapter Bracket	MCP-120-82503-0N	-	Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
SATA DVD Kit	MCP-220-81502-0N	-	Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
TPM	AOM-TPM-9655V	-	Vertical TPM with Infineon 9655 TCG 1.2
	AOM-TPM-9655V-S	-	Based on AOM-TPM-9655V with Server TXT package
	AOM-TPM-9665V	-	AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
	AOM-TPM-9665V-S	-	Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
	OSNBD3/2/1	-	3/2/1-year onsite NBD service
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)

Views:

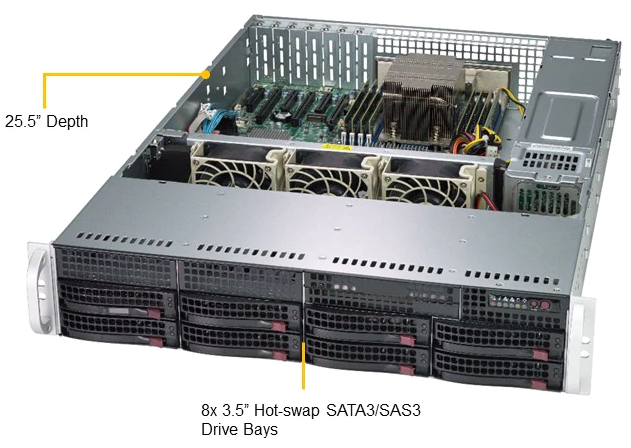

Angled View

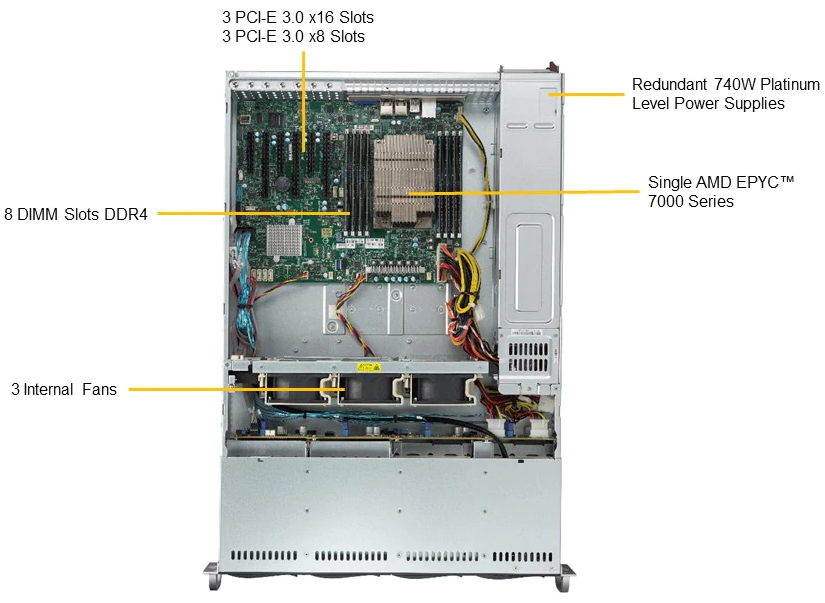

Top View

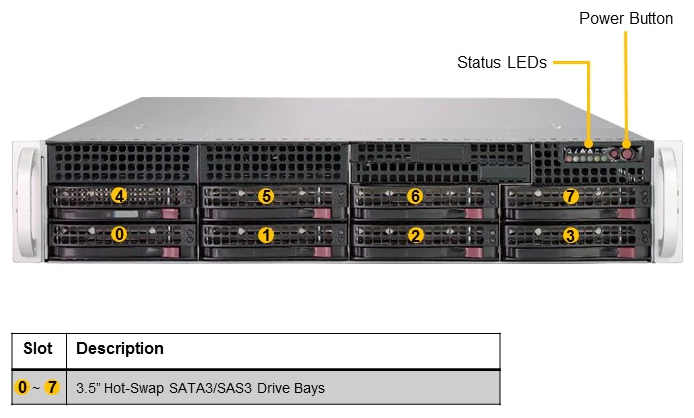

Front View

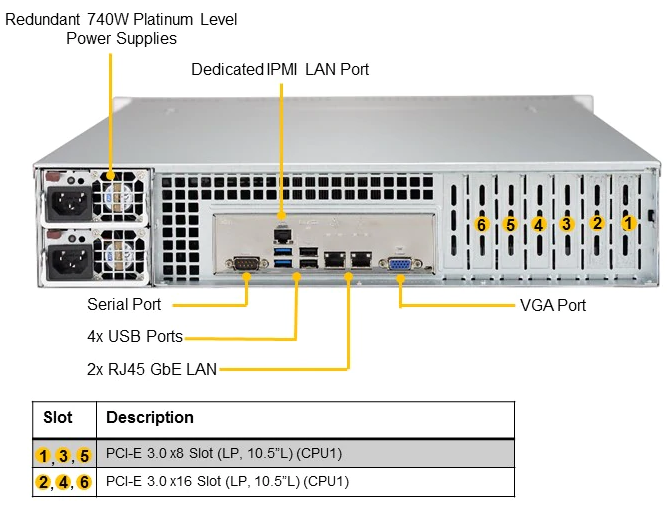

Rear View

Integrated Board:

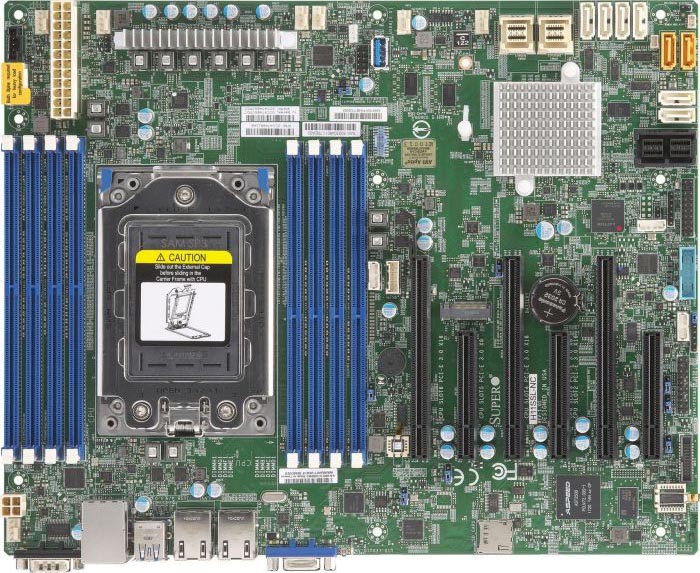

H11SSL-C

Key Features

• Single AMD EPYC 7000-Series Processor
• 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
• Expansion slots:
  • 3 PCI-E 3.0 x16
  • 3 PCI-E 3.0 x8
  • M.2 Interface: 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-key
• 8 SATA 3.0 + Broadcom 3008 for 8 SAS3 ports, 1 M.2
• Dual Gigabit Ethernet LAN Ports
• ASPEED AST2500 BMC graphics
• Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) Up to 4 USB 2.0 ports (2 rear + 2 via header)
• 7 PWM 4-pin Fans with tachometer status monitoring

H11SSL-C Specifications
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.5cm x 24.4cm)
Processor/Cache
CPU	Dual AMD EPYC 7000-series Processors Socket SP3
Cores / Cache	Up to 32 cores
Chipset	System on Chip
System Memory
Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
SAS	Broadcom 3008 SAS3 (12 Gbps) controller RAID 0, 1, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 1GbE LAN via Intel I210 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Input / Output
SAS	8 SAS3 (12 Gbps) ports
SATA	8 SATA3 (6 Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear + 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connector 1 TPM 2.0 header
Expansion Slots
PCI-Express	3 PCI-E 3.0 x8 3 PCI-E 3.0 x16
M.2	Interface: PCI-E 3.0 x4 Form factor: 2280, 22110 Key: M-key
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment
Operating Temperature Range	10°C to 35°C (50°F to 95°F)
Non-Operating Temperature Range	-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)

Parts List - (Items Included)
	Part Number	Qty	Description
H11SSL-C	MBD-H11SSL-C-B	1	H11SSL-C Motherboard
I/O Cable	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00042-0N	1	STD I/O SHIELD FOR X9 SOCKET R SERVER MB
Optional Parts List
	Part Number	Qty	Description
I/O Cable	CBL-SAST-0658	-	INT Mini-SAS HD CBL for PCIe SSD NVMe 12Gb/s 60cm 30AWG
TPM security module	AOM-TPM-9655V	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
	AOM-TPM-9655V-S	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT
	AOM-TPM-9665V	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
	AOM-TPM-9665V-S	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; Provisioned for TXT

Videos:

Supermicro A+ Server Solutions

Supermicro’s market leading server solutions now include servers powered by AMD EPYC processors. These servers deliver outstanding performance to power through the most demanding workloads while driving up productivity in your datacenter. The A+ Server solutions, which includes the building block solutions, are available as high-performance two-socket or a powerful single-socket system to drive a variety of use-cases.

Documentation:

Download the Supermicro Next Generation A+ Solutions Datasheet (.PDF)
