BigTwin

Highest Performing 2U Twin Architecture with 4 or 2 Nodes

Overview

Highlights

16 DIMM slots per node, up to 4TB DDR5-6400 memory
Flexible storage options including PCIe 5.0 EDSFF E3.S and U.2 NVMe drives
Flexible networking options via AIOM from 1Gb to 400 Gb

Innovations

Optional direct-to-chip liquid cooling
Supermicro AIOM - Most Flexible, Cost-Optimized Server I/O
Resource Saving for Best Efficiency and TCO

Optimized for:

Virtualization
Cloud
Software-defined Storage
Hosting & Content Delivery
Hyperscale / Hyperconverge

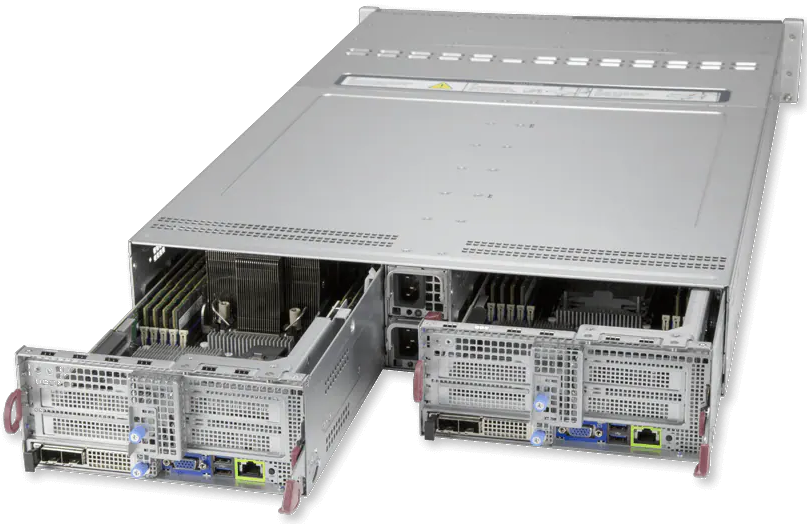

X14 2U2N BigTwin with Intel Xeon 6

Flagship Multi-Node Performance for the Most Demanding Cloud and Storage Applications

CPU: Dual Intel Xeon 6700 series processors with E-cores per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 12 hot-swap 2.5" NVMe or 6 hot-swap 3.5" NVMe/SAS drives per node
PCIe: Up to 3 PCIe 5.0 slots + 1 PCIe AIOM slot per node

2U2N BigTwin with PCIe 5.0

Flagship Multi-Node Performance for the Most Demanding HCI and Storage Applications (X13)

CPU: Dual 5th/4th Gen Intel Xeon Scalable Processors per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 12x hot-swap 2.5" NVMe/SAS/SATA or 6x 3.5" NVMe/SAS/SATA per node
PCIe: 1x PCIe 5.0 x16 (LP) + up to 2x PCIe 5.0 x8 (LP) per node

X14 2U4N BigTwin with Intel Xeon 6

Flagship Multi-Node Performance for the Most Demanding Cloud and Storage Applications

CPU: Dual Intel Xeon 6700 series processors with E-cores per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 8 hot-swap EDSFF E3.S, 6 hot-swap 2.5″ NVMe, or 3 hot-swap 3.5″ NVMe/SAS drives per node
PCIe: Up to 2 PCIe 5.0 slots + 1 PCIe AIOM slot per node

2U4N BigTwin with PCIe 5.0

Flagship Multi-Node Performance for the Most Demanding HCI and Storage Applications (X13)

CPU: Dual 5th/4th Gen Intel Xeon Scalable Processors per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 6x hot-swap 2.5" NVMe/SAS/SATA or 3x 3.5" NVMe/SAS/SATA per node
PCIe: 2x PCIe 5.0 x16 (LP) per node

2U2N BigTwin with PCIe 4.0

Flagship Multi-Node Performance for the Most Demanding HCI and Storage Applications (X12/H12)

CPU: Dual 3rd Gen Intel Xeon Scalable Processors
Memory: Up to 20 DIMMs (4 Intel Optane slots) per node, 4TB DDR4, support for Intel Optane persistent memory
Drives: Up to 12x hot-swap 2.5"NVMe/SAS/SATA or 6x 3.5" NVME/SAS/SATA per node
PCIe: 2x PCIe 4.0 x16 per node

2U4N BigTwin with PCIe 4.0

Flagship Multi-Node Performance for the Most Demanding HCI and Storage Applications (X12/H12)

CPU: Dual 3rd Gen Intel Xeon Scalable Processors or AMD EPYC™ 7003 Series Processors per node
Memory: Up to 20 DIMMs (4 Intel Optane slots) per node, 4TB DDR4, support for Intel Optane persistent memory
Drives: Up to 6x hot-swap 2.5"NVMe/SAS/SATA or 3x 3.5" NVME/SAS/SATA per node
PCIe: 2x PCIe 4.0 x16 per node

X14 2U2N BigTwin with Intel Xeon 6

X14

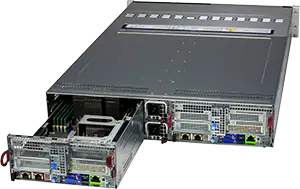

SYS-222BT-DNR

2U 2-Node BigTwin with 12 hot-swap 2.5" NVMe drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 12
Networking: AIOM
Interface: NVMe (Native)

2U2N BigTwin with PCIe 5.0

X14

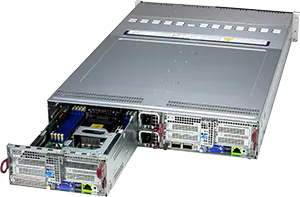

SYS-622BT-DNC8R

2U 2-Node BigTwin with 6 hot-swap 3.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 3.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X13

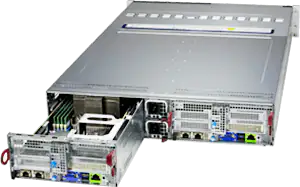

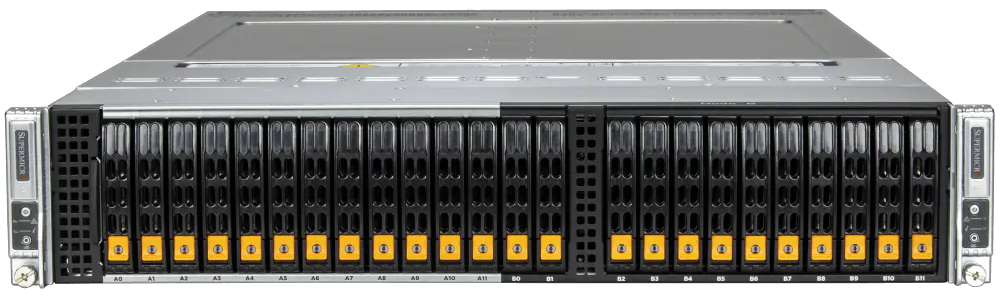

SYS-221BT-DNTR

2U 2-Node BigTwin with 12 hot-swap 2.5" NVMe/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 12
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

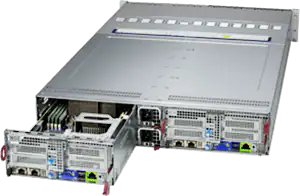

SYS-621BT-DNTR

2U 2-Node BigTwin with 6 hot-swap 3.5" NVMe/SATA drives per node"

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

SYS-221BT-DNC8R

2U 2-Node BigTwin with 12 hot-swap 2.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 12
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

SYS-621BT-DNC8R

2U 2-Node BigTwin with 6 hot-swap 3.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X14 2U4N BigTwin with Intel Xeon 6

X14

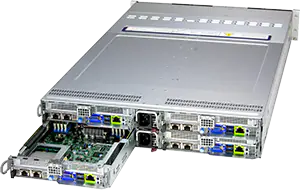

SYS-222BT-HNC8R

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X14

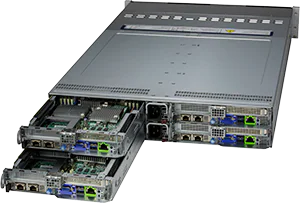

SYS-222BT-HNC9R

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X14

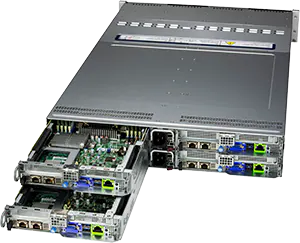

SYS-622BT-HNC8R

2U 4-Node BigTwin with 3 hot-swap 3.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 3.5"
Drive: 3
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X14

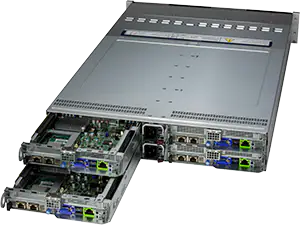

SYS-222BT-HNR

"2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: NVMe (Native)

X13

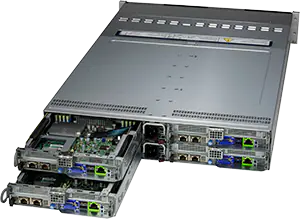

SYS-222BT-HER

2U 4-Node BigTwin with 8 hot-swap E3.S 1T NVMe drives per node

CPU: 2
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: E3.S1T
Drive: 8
Networking: AIOM
Interface: NVMe (Native)

2U4N BigTwin with PCIe 5.0

X13

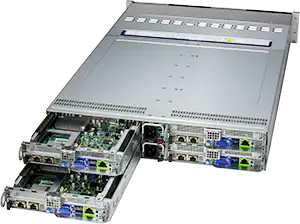

SYS-221BT-HNR

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: NVMe (Native)

X13

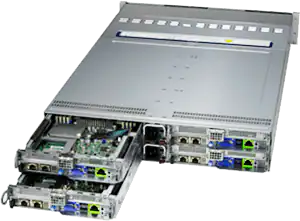

SYS-221BT-HNTR

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

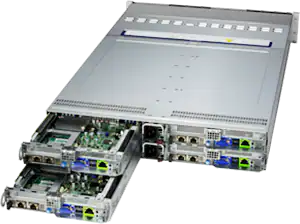

SYS-221BT-HNC8R

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

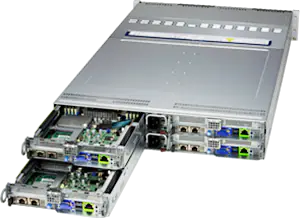

SYS-221BT-HNC9R

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe/SATA (2 NVMe hybrid) drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

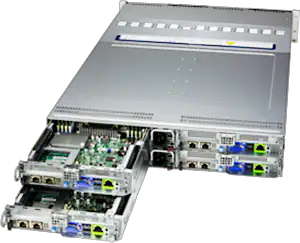

SYS-621BT-HNC8R

2U 4-Node BigTwin with 3 hot-swap 3.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 3
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X13

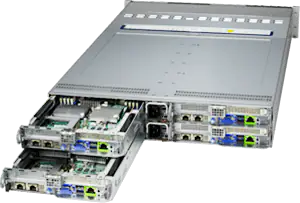

SYS-621BT-HNTR

2U 4-Node BigTwin with 3 hot-swap 3.5\" NVMe\/SATA drives per node

CPU: 2
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 3
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

2U2N BigTwin with PCIe 4.0

X12

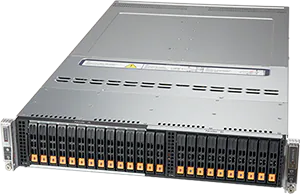

SYS-220BT-DNTR

2U 2-node BigTwin with 12 2.5" NVMe/SATA drives per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 12
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X12

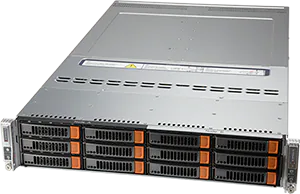

SYS-620BT-DNTR

2U 2-node BigTwin with 6 3.5" NVMe/SATA bays per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X12

SYS-220BT-DNC8R

2U 2-node BigTwin with 6 3.5" NVMe/SAS/SATA bays per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 12
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X12

SYS-620BT-DNC8R

2U 2-node BigTwin with 6 3.5" NVMe/SAS/SATA bays per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

2U4N BigTwin with PCIe 4.0

X12

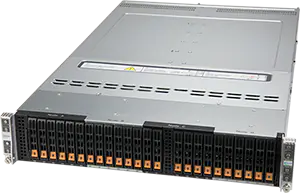

SYS-220BT-HNTR

2U BigTwin with 6 2.5" NVMe/SATA drives per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X12

SYS-220BT-HNC8R

2U BigTwin with 6 2.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X12

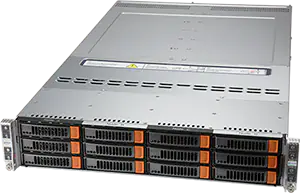

SYS-620BT-HNTR

2U BigTwin with 3 3.5" NVMe/SATA drives per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 3
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)

X12

SYS-220BT-HNC9R

2U BigTwin with 6 2.5" NVMe/SAS/SATA drives per node and HW RAID

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X12

SYS-620BT-HNC8R

2U BigTwin with 3 3.5" NVMe/SAS/SATA drives per node

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 3
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X12

SYS-220BT-HNC8R-US

2U BigTwin with 6 2.5" NVMe/SAS/SATA drives per node (Made in USA)

CPU: 2
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

H12

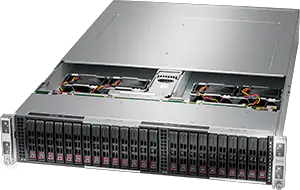

AS-2124BT-HTR

2U BigTwin with 6 2.5" SATA drives per node

CPU: 2
CPU Type: AMD EPYC 7002/7003 Series processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: SIOM, SIOM InfiniBand
Interface: SATA (Native)

H12

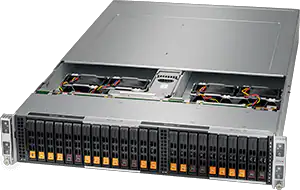

AS-2124BT-HNTR

2U BigTwin with 6 2.5" SATA drives (up to 4 NVMe) per node

CPU: 2
CPU Type: AMD EPYC 7002/7003 Series processors
DIMM Slots: 32
Drive Size: 2.5"
Drive: 6
Networking: SIOM, SIOM InfiniBand, AIOM
Interface: NVMe (Native)

X11

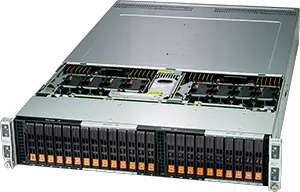

SYS-2029BZ-HNR

2U 4-node BigTwin with 6 2.5" NVMe bays per node

CPU: 2
CPU Type: 2nd Gen Intel Xeon Scalable processors
DIMM Slots: 24
Drive Size: 2.5"
Drive: 6
Networking: SIOM, SIOM InfiniBand, AIOM
Interface: NVMe (Native)
