FatTwin

High-Density, Energy-Efficient Servers

Overview

Highlights

Highly configurable 4U, with 8 and 4 node systems available
Front accessible service design for cold-aisle serviceability
Hot-swappable drive bays – interchangeable NVMe, SAS or SATA

Innovations

Shared Power Architecture for Best Efficiency
Redundant cooling and power configurations for high availability
Optimized Designs for Storage and Compute Density

Optimized for:

Hyperscale / Hyperconverged
Cloud Optimized Servers
Data Center Enterprise Applications
Scale out of Storage expansion
Telco Data Center
Virtualization Server

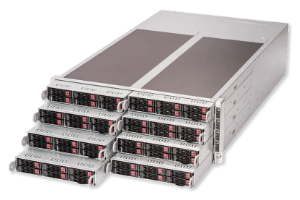

4U4N/4U8N FatTwin with PCIe 5.0

Advanced I/O in a Single Processor Architecture for Big Data and HPC Applications (X13)

CPU: Single 5th/4th Gen Intel Xeon Scalable Processors per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 8x 3.5" NVMe/SAS/SATA or 6x 2.5" NVMe/SAS/SATA per node
PCIe: 1x PCIe 5.0 x16 (LP) per node

4U4N/4U8N FatTwin with PCIe 4.0

Advanced I/O in a Dual Processor Architecture for Big Data and HPC Applications (X12/H12)

CPU: Dual 3rd Gen Intel Xeon Scalable Processors or Single AMD EPYC 7003 Series Processors per node
Memory: Up to 16 DIMMs per node, 4TB DDR4, support for Intel Optane Persistent Memory per node
Drives: Up to 8x 3.5" NVMe/SAS/SATA or up to 6x 2.5" NVMe/SAS/SATA per node
PCIe: 1x PCIe 4.0 x16 (LP) per node

4U4N/4U8N FatTwin with PCIe 5.0

X13

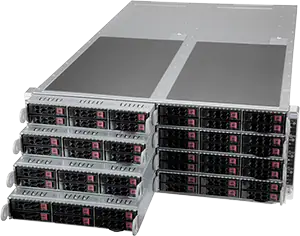

SYS-F511E2-RT

4U 8-Node FatTwin with 6 hot-swap 2.5" NVMe/SAS/SATA drives per node

CPU: 1
Max GPU: NA
Supported GPUs: NA
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: 1x 1G, AIOM
Interface: SAS (Native)
SATA (Native)
NVMe (Native)

X13

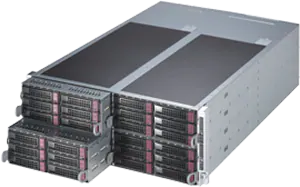

SYS-F521E3-RTB

4U 4-Node FatTwin with 8 hot-swap 3.5" NVMe/SAS/SATA drives per node

CPU: 1
Max GPU: NA
Supported GPUs: NA
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 1x 1G, AIOM
Interface: SAS (Native)
SATA (Native)
NVMe (Native)

4U4N/4U8N FatTwin with PCIe 4.0

X12

SYS-F610P2-RTN

4U 8-node FatTwin with 6 2.5" NVMe/SAS/SATA bays per node

CPU: 2
Max GPU: NA
Supported GPUs: NA
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: 1x 1G, AIOM
Interface: SAS (Native)
SATA (Native)
NVMe (Native)

X12

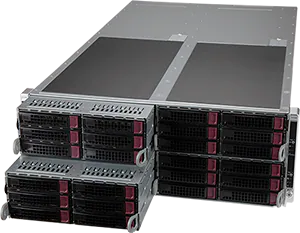

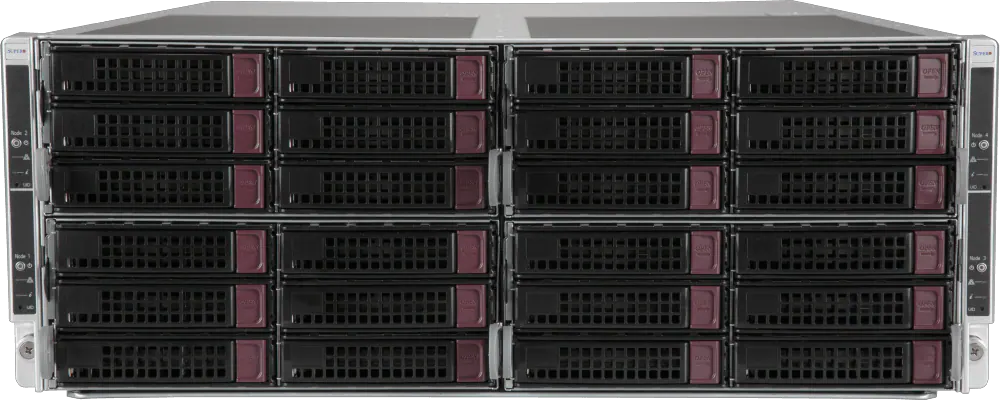

SYS-F620P3-RTBN

4U 4-node FatTwin with 8 3.5" SAS/SATA (optional 6 NVMe) per node

CPU: 2
Max GPU: Up to 1 double-width GPU
Supported GPUs: NA
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 8
Networking: 1x 1G, AIOM
Interface: SAS (Native)
SATA (Native)
NVMe (Native)

H12

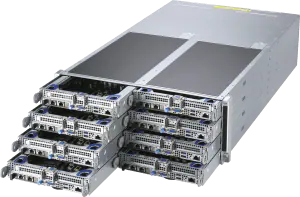

AS-F1114S-FT

4U 8-node FatTwin with 4 fixed 2.5" SATA bays per node

CPU: 1
Max GPU: NA
Supported GPUs: NA
CPU Type: AMD EPYC 7002/7003 Series processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 4
Networking: AIOM
Interface: SAS (Native)

H12

AS-F1114S-RNTR

4U 8-node FatTwin with 2 2.5" NVMe/SATA + 2 2.5" SATA drives per node

CPU: 1
Max GPU: NA
Supported GPUs: NA
CPU Type: AMD EPYC 7002/7003 Series processors
DIMM Slots: 8
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Interface: SAS (Native)
SATA (Native)
