FlexTwin

Purpose-Built Liquid-Cooled, HPC-at-Scale Solution

Overview

Highlights

New 2U 4-node architecture
Maximum performance density
Support for latest generation Intel Xeon 6900 series processors with up to 24,576 cores per rack

Innovations

Direct-to-chip liquid cooling which removes 90% of server-generated heat
Modular design with optional components - only pay for what is needed

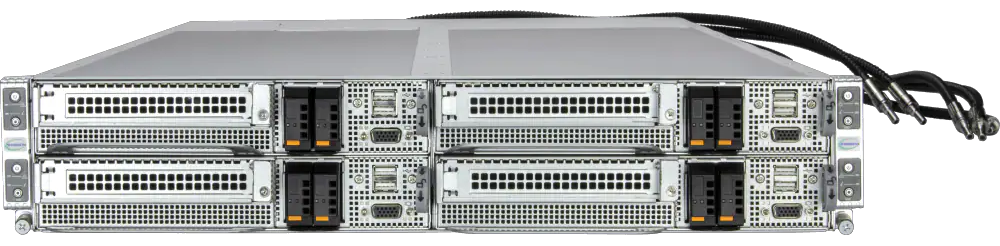

Front-accessible hot-swappable nodes enhance serviceability

Optimized for:

HPC Data Center
Financial Services
Manufacturing
Climate & Weather Modeling
Oil & Gas
Scientific Research

2U4N FlexTwin with Intel Xeon 6

Purpose-built HPC-at-scale solution

CPU: Dual Intel Xeon 6900 series processors with P-cores per node
Memory: Up to 24 DIMMs per node, 6TB DDR5 or 3TB MRDIMM
Drives: Up to 2 front hot-swap E1.S PCIe 5.0 NVMe drive bays per node
PCIe: 1 PCIe 5.0 x16 (LP) + 1 PCIe 5.0 x16 (FHHL) + 1 PCIe 5.0 x16 AIOM per node

2U4N FlexTwin with Intel Xeon 6

X14

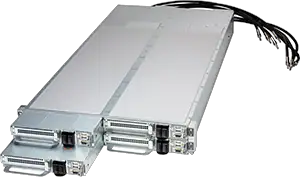

SYS-222FT-HEA-LCC

2U 4-Node FlexTwin with 2 hot-swap E1.S drives per node

CPU: 2
CPU Type: Intel Xeon 6900 series processors with P-cores
DIMM Slots: 24
Drive Size: E1.S
Drive: 2
Networking: AIOM
Interface: -
