GrandTwin

Multi-Node Architecture Optimized for Single Processor Performance

Overview

Highlights

2U2N or 2U4N designs with 12 or 16 DIMMs per node
Front or rear I/O options with modular design to increase flexibility and reduce cost
Front/Cold aisle serviceability with easy front node access

Innovations

Flexible storage options with new support for EDSFF E1.S drives
Resource Saving for Best Efficiency and TCO

Optimized for:

Virtualization
Cloud
Hosting & Content Delivery
Hyperscale / Hyperconverged
HPC
GPU Virtualization
Scale-out Object Storage
Telco Edge Cloud
Cluster Node

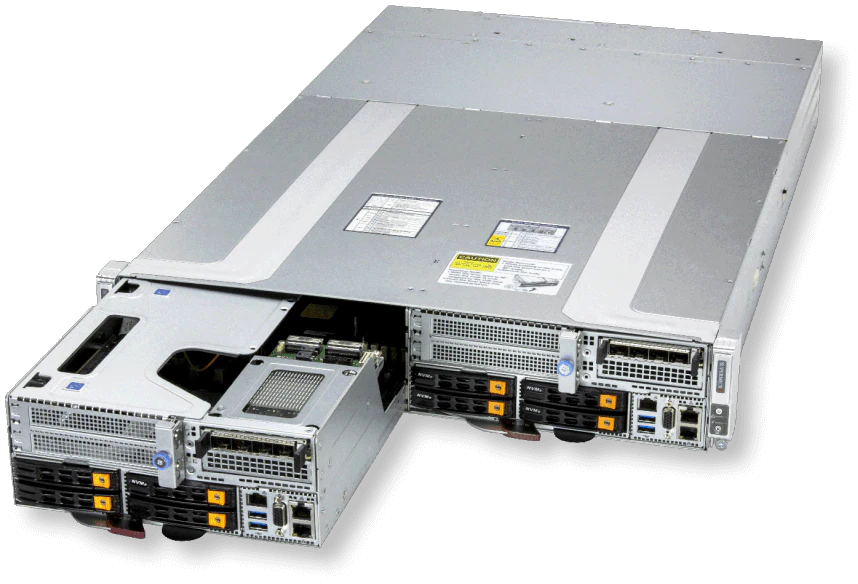

X14 2U2N GrandTwin with Intel Xeon 6

Purpose-Built Single-Socket Architecture with Front I/O and Modular Components

CPU: Single Intel Xeon 6900 series processor with P-cores per node
Memory: Up to 12 DIMMs per node, 3TB DDR5/MRDIMM
Drives: Up to 4 hot-swap 2.5" NVMe drives per node
PCIe: Up to 2 PCIe 5.0 x16 (in x16) FH/10.5"L slots per node

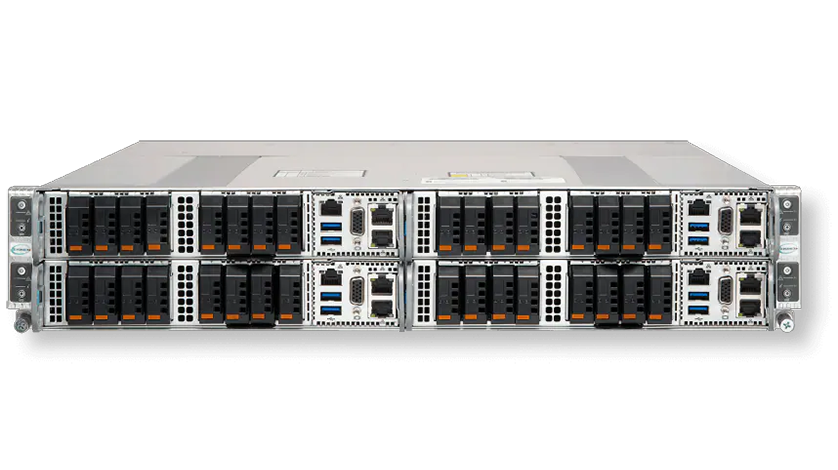

2U4N GrandTwin with Intel Xeon 6

Purpose-Built Single-Socket Architecture with Front or Rear I/O and Modular Components

CPU: Single Intel Xeon 6700 series processor with E-cores per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 8 hot-swap EDSFF E1.S or 6 hot-swap 2.5" NVMe drives per node
PCIe: Up to 1 PCIe 5.0 slot or 2 PCIe 5.0 x16 AIOM slots per node

2U4N GrandTwin with PCIe 5.0

Purpose-Built Single-Socket Architecture with Front or Rear I/O and Modular Components (X13/H13)

CPU: Single 5th/4th Gen Intel Xeon Scalable Processor or AMD EPYC 9004 Series Processor per node
Memory: Up to 16 DIMMs per node, 4TB DDR5
Drives: Up to 6x hot-swap 2.5" NVMe/SAS/SATA per node
PCIe: Up to 2x PCIe 5.0 x16 AIOM per node

2U4N GrandTwin with PCIe 4.0

Purpose-Built Single-Socket Architecture with Front or Rear I/O and Modular Components (X12)

CPU: Single 3rd Gen Intel Xeon Scalable Processor per node
Memory: Up to 16 DIMMs per node, 4TB DDR4, support for Intel Optane Persistent Memory
Drives: Up to 4x hot-swap 2.5" NVMe/SAS/SATA per nod
PCIe: 1x PCIe 4.0 x16 per node

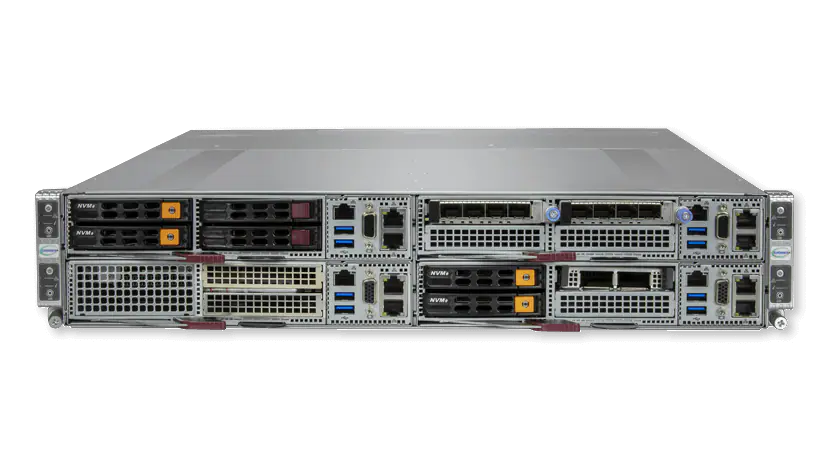

X14 2U2N GrandTwin with Intel Xeon 6

X14

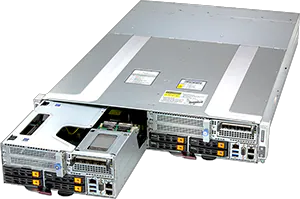

SYS-212GT-DNAF

2U 2-Node GrandTwin with front I/O and double-width GPU support

CPU: 1
CPU Type: Intel Xeon 6900 series processors with P-cores
DIMM Slots: 12
Drive Size: 2.5"
Drive: 4
Networking: -
Total PCI-E Slots#: -
Interface: NVMe (Native)

2U4N GrandTwin with Intel Xeon 6

X14

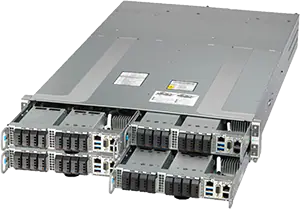

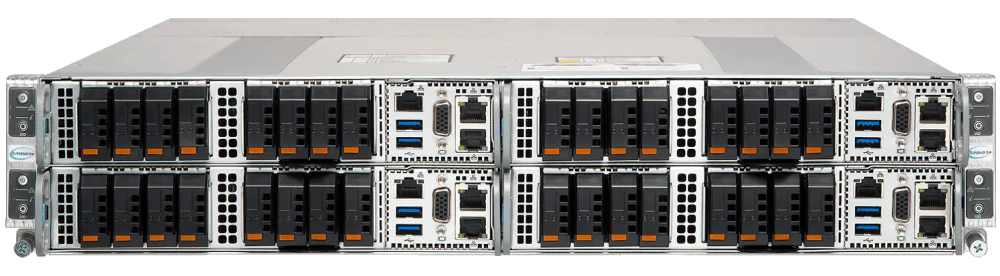

SYS-212GT-HNF

2U 4-Node GrandTwin with up to 8 hot-swap E1.S NVMe drives per node and Front I/O

CPU: 1
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: E1.S
Drive: 8
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)

X14

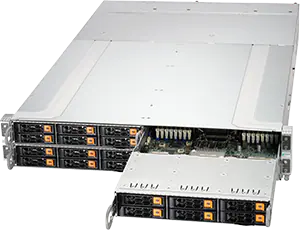

SYS-212GT-HNR

2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe drives per node and rear I/O

CPU: 1
CPU Type: Intel Xeon 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Total PCI-E Slots#: -
Interface: NVMe (Native)

2U4N GrandTwin with PCIe 5.0

X13

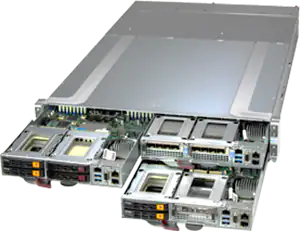

SYS-211GT-HNTF

2U 4-Node GrandTwin with up to 4 hot-swap 2.5" NVMe/SATA drives per node and front I/O

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 4
Networking: AIOM
Total PCI-E Slots#: -
Interface: NVMe (Native)

X13

SYS-211GT-HNTR

2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe/SATA drives per node and rear I/O

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)
NVMe (Native)

X13

SYS-211GT-HNC8F

2U 4-Node GrandTwin with up to 4 hot-swap 2.5" NVMe/SAS/SATA drives per node and front I/O

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 4
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

X13

SYS-211GT-HNC8R

2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe/SAS/SATA drives per node and rear I/O

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)
NVMe (Native)
SAS (Native)

H13

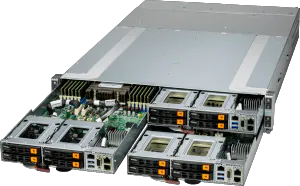

AS-2115GT-HNTF

2U 4-Node GrandTwin with up to 4 hot-swap 2.5" NVMe/SATA drives per node and front I/O

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 12
Drive Size: 2.5"
Drive: 4
Networking: AIOM
Total PCI-E Slots#: -
Interface: NVMe (Native)

H13

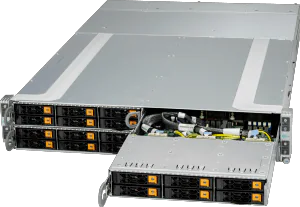

AS-2115GT-HNTR

2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe/SATA drives per node and rear I/O

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 12
Drive Size: 2.5"
Drive: 6
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)
NVMe (Native)

2U4N GrandTwin with PCIe 4.0

X12

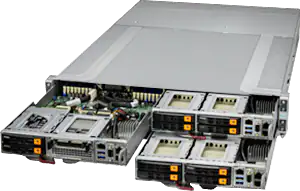

SYS-210GT-HNTF

2U 4-node UP GrandTwin with 4 2.5" NVMe/SATA drives per node

CPU: 1
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 4
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)
NVMe (Native)

X12

SYS-210GT-HNC8F

2U 4-node UP GrandTwin with 4 2.5" SAS/SATA drives per node

CPU: 1
CPU Type: 3rd Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 4
Networking: AIOM
Total PCI-E Slots#: -
Interface: SATA (Native)
NVMe (Native)
SAS (Native)
