Supermicro JBOD storage is a way to connect a system to a group of hard disk drives to expand storage capacity. JBOD stands for "Just a Bunch of Disks" and is a method of combining multiple hard disk drives into a single logical unit. Each drive keeps its own file system and data, but the operating system sees the group of disks as a single volume.
Supermicro offers several JBOD storage options, including:
- JBOD Chassis with an excellent price-performance ratio: A reliable way to extend a company's storage capacities
- JBOD Chassis for maximum data availability: Features redundant power supply, ventilation, and SAS expanders
Key Advantages:
- Versatile Form Factors: Choose from 2U, 3U, and 4U configurations to match the physical and performance requirements of your data center.
- High Capacity Storage: Utilize our servers for extensive storage needs without compromising on system performance, perfect for environments that manage large volumes of data.
- Advanced Storage Features: Our servers support CPU-intensive storage, virtual storage, single-instance storage, data deduplication, and data replication. They are ideal for scenarios demanding high data availability and business continuity.
- Tailored Solutions: Whether you're setting up a virtual tape library or looking for robust business continuity solutions, our storage servers are built to support complex and varied storage environments.
JBOD enclosures are usually not configured to act as a RAID, but they can be. JBOD expansions can be a cost-effective and efficient storage solution, but they do have some drawbacks.
2U Chassis

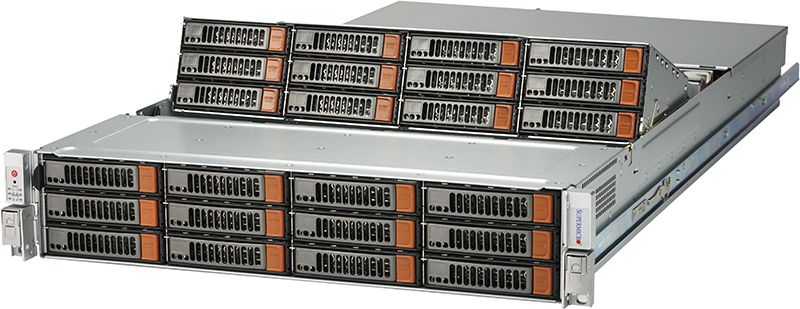

CSE-826SE1C-R1K02JBOD
Simply Double High Density JBOD Storage Enclosure
Key Features
- Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays
- Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput
- 4x Mini-SAS HD ports for Internal/External Cascading
- 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus
- Optimize cooling with 5x 8cm Hot-Swap redundant fans
- JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller

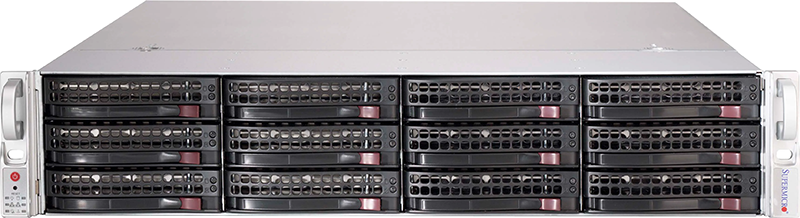

CSE-826BE2C-R802JBOD
2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-826BE2C-R609JBOD
2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-826BE1C-R802JBOD
2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-826BE1C-R609JBOD
2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller

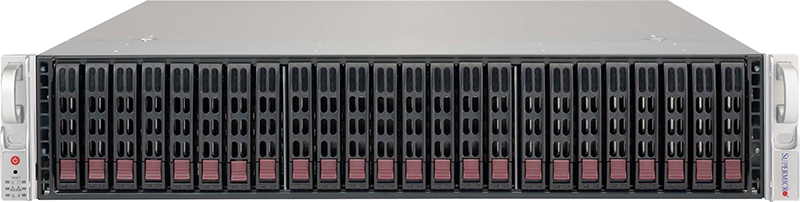

CSE-216BE2C-R609JBOD
2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-216BE1C-R609JBOD
2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
3U Chassis

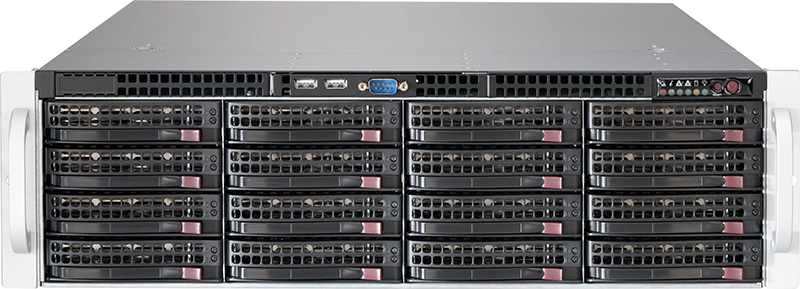

CSE-836BE2C-R609JBOD
3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-836BE2C-R1K03JBOD
3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-836BE1C-R609JBOD
3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-836BE1C-R1K03JBOD
3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
4U Chassis

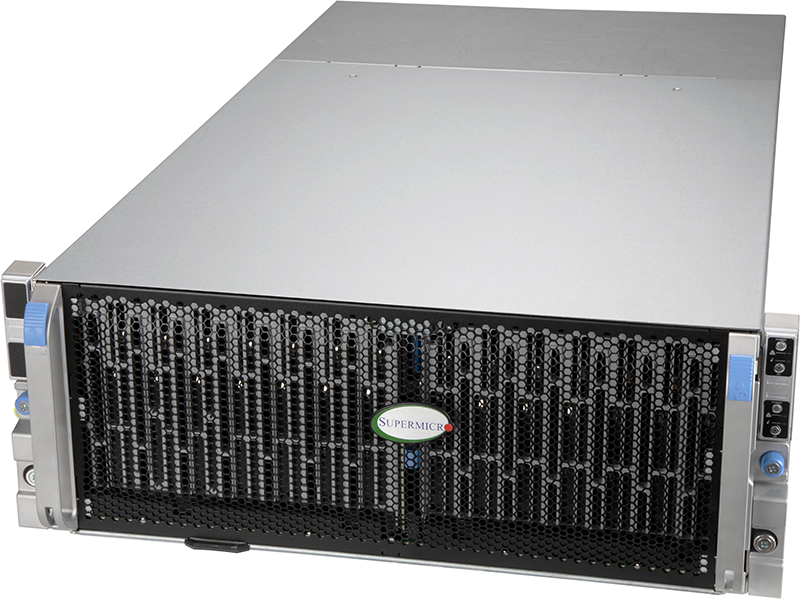

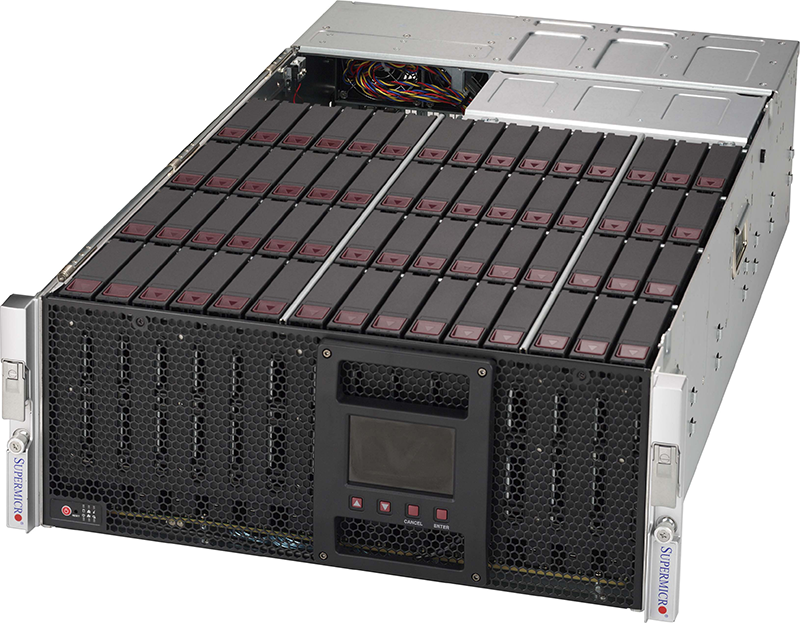

CSE-947SE2C-R1K66JBOD
4U Top-Load JBOD Storage Enclosure with capacity 60 x 3.5"/2.5" hot-swap SAS drive bay with SES3
Key Features
- Dual-Path Storage Enclosure
- Support two canister controllers; 1+1 redundant for Dual-Path Enclosure
- Support 60 3.5" Top Loading SAS3 12 Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports ( MiniSAS HD) per node
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Platinum 1600W power supply
CSE-947SE1C-R1K66JBOD
4U Top-Load JBOD Storage Enclosure with capacity 60 x 3.5"/2.5" hot-swap SAS/SATA drive bay with SES3
Key Features
- Single-Path Storage Enclosure
- Support single canister controllers
- Support 60 3.5" Top Loading SAS3 12 Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports ( MiniSAS HD) per node
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Platinum 1600W power supply

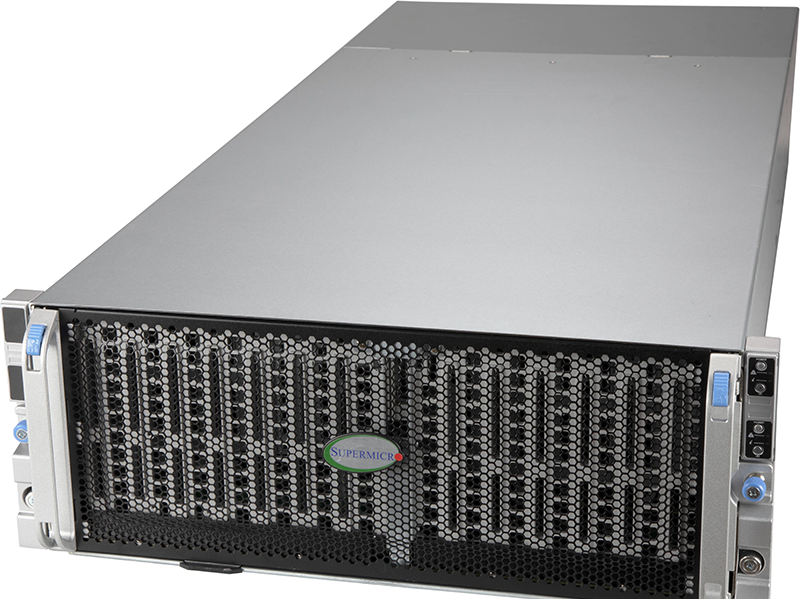

CSE-947HE2C-R2K05JBOD
4U Top-Load JBOD Storage Enclosure with capacity 90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
Key Features
- Dual-Path Storage Enclosure for High Availability Applications
- Support two canister controllers; 1+1 redundant for Dual-Path Enclosure
- Support 90 3.5"/2.5" Top Loading SAS3 12Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644) per node
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Titanium 2000W power supply
CSE-947HE1C-R2K05JBOD
4U Top-Load JBOD Storage Enclosure with capacity 90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
Key Features
- Single-Path Storage Enclosure
- Single canister controllers with field serviceable tray
- Support 90 3.5"/2.5" Top Loading SATA 6Gb/s / SAS3 12Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644)
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Titanium 2000W power supply
CSE-946SE2C-R1K66JBOD
4U Top-Load JBOD Storage Enclosure with capacity 60 x 3.5"/2.5" hot-swap SAS drive bay with SES3
Key Features
- Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS 12Gb/s Hot Swapping HDD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Support front LCD panel for system status & error info (Option)
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-946SE1C-R1K66JBOD
4U Top-Load JBOD Storage Enclosure with capacity 60 x 3.5" hot-swap SAS/SATA drive bay with SES3
Key Features
- Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HHD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Support front LCD panel for system status & error info (Option)
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-946LE1C-R1K66JBOD
4U Top-Load JBOD Storage Enclosure with capacity 45 x 3.5" hot-swap SAS/SATA drive bay with SES3
Key Features
- Extreme High Density and High Capacity Storage Chassis support 45 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Support front LCD panel for system status & error info (Option)
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

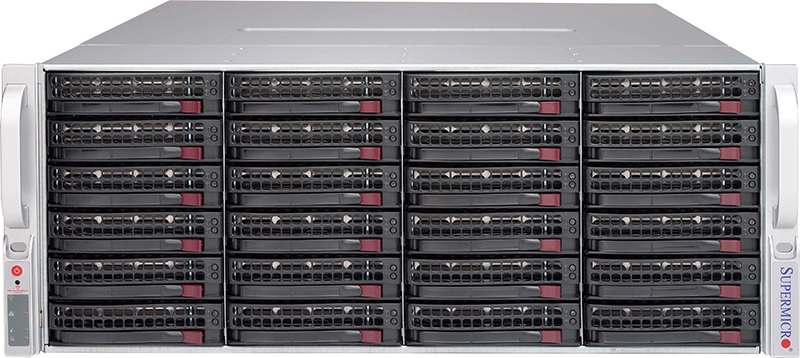

CSE-847E2C-R1K23JBOD
4U Double-sided High Density JBOD Storage Enclosure with capacity 44 x (24 front + 20 rear) 3.5" hot-swap SAS drive bays
Key Features
- 44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
- Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
- 7x 8cm (middle) hot-swap redundant cooling fans
- SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
- JBOD Power Control Board with IPMI for remote monitor and power on-off
- 8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
- Palletized packaging for easy shipping and handling
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-847E1C-R1K23JBOD
4U Double-sided High Density JBOD Storage Enclosure with capacity 44 x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays
Key Features
- 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
- Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
- 7x 8cm (middle) hot-swap redundant cooling fans
- SAS3 (12Gbps) backplane with single expander supports SAS3/SATA3 drives for capacity expansion
- JBOD Power Control Board with IPMI for remote monitor and power on-off
- 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
- Palletized packaging for easy shipping and handling
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE2C-R609JBOD
4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE2C-R1K03JBOD
4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
Key Features
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE1C-R609JBOD
4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE1C-R1K03JBOD
4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
Key Features
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
- AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller

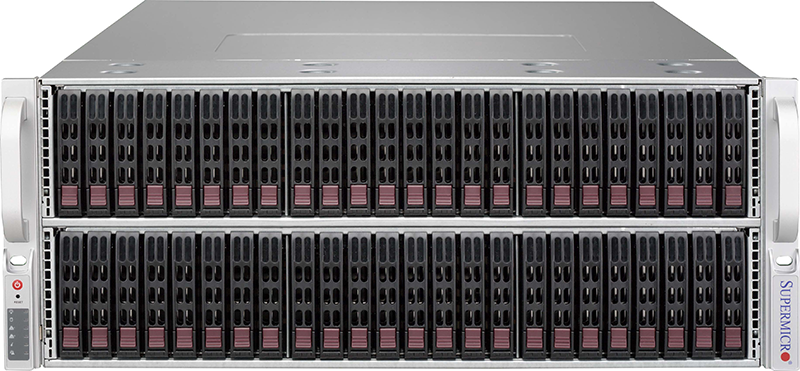

CSE-417BE1C-R1K23JBOD
4U Double-sided High Density JBOD Storage Enclosure with capacity 72 x (48 front + 24 rear) 2.5" hot-swap HDD bays
Key Features
- Extremely high-density 4U storage server chassis (saves 2U space)
- Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
- SAS3 (12Gbps) single expander backplane
- 1200W Titanium Level (1+1) redundant power supplies with PMBus
- Optimized thermal solution with 100% redundant cooling design
- Qualified SAS HBA / controller:
- AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
- AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
