MicroBlade

Highest Density, Energy-Efficiency and Value

Overview

Highlights

Powerful and flexible extreme-density 3U or 6U all-in-one blade architecture
Density optimized designs for up to 4 independent UP nodes per blade server
Up to 86% in power efficiency and 56% in density improvements

Innovations

Resource Saving Architecture
Extremely High Density

Optimized for:

Enterprise Applications
Resource-saving Architecture
Data Center
Cloud
Hosting & Content Delivery

Product Features

Enclosure
3U and 6U Blade Server Enclosures

Memory
Up to 8 DIMM slots, up to 256GB DDR4 memory per node

Power
Platinum and Titanium Level (96%) Efficiency AC/DC power supplies with optional Battery Backup Power (BBP®) support

Management
Redundant Chassis Management Modules, Open Industry Standard IPMI, Redfish APIs

Processors
Up to dual Intel Xeon processor E5-2600 v4/v3 product families

Drives
Up to 4x 2.5" SAS3/SATA3 drives per blade server; up to 2 M.2 NVMe drives on selected models

Input/Output
Redundant 10Gb/1Gb Ethernet switches

Services
Worldwide Global Services

Enclosures

3U (14-blade)

Blade Support:	Up to 14x 2-socket blade servers Up to 14x dual-node 1-socket blade servers
Node Support:	Intel Xeon processor based blade servers
Networking:	Up to 2 hot-pluggable 10G/1G Ethernet switches
Management:	Single hot-pluggable management module
Power Supply:	Up to 4 hot-pluggable 2200W AC or 2000W DC

6U (20-blade)

Blade Support:	Up to 20x 1-socket blade servers
Node Support:	Intel Core processor based blade servers
Networking:	Up to 4 hot-pluggable 2.5G/1G Ethernet switches
Management:	Up to dual redundant management modules
Power Supply:	Up to 8 hot-pluggable 2200W/3000W redundant AC

6U (28-blade)

Blade Support:	Up to 28x 2-socket blade servers Up to 28x dual-node 1-socket blade servers
Node Support:	Intel Xeon processor based blade servers
Networking:	Up to 2 hot-pluggable 10G/1G Ethernet switches
Management:	Up to dual redundant management modules
Power Supply:	Power Supply Up to 8 hot-pluggable 2200W AC * Up to 8 hot-pluggable 2200W DC * Battery Backup Power Up to 4 hot-pluggable 1200W BBP®modules *

* Supported on selected enclosure model(s) and configuration(s)

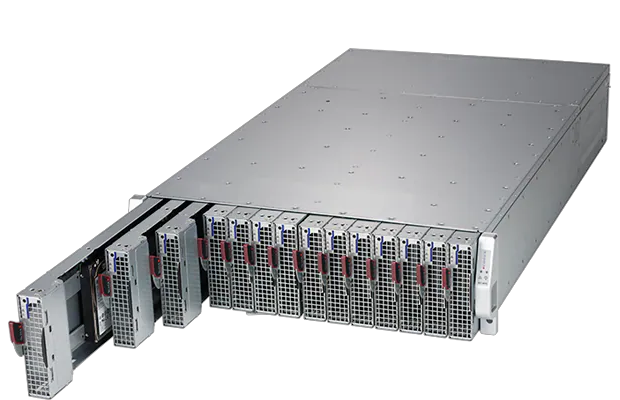

3U (14-blade) Enclosure

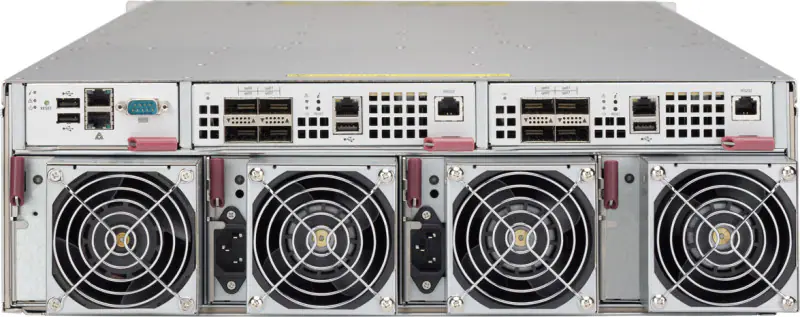

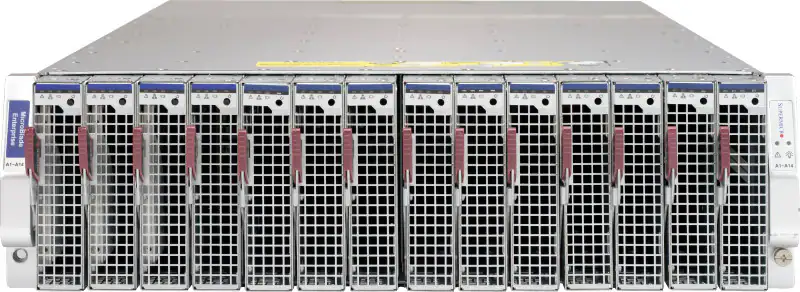

MBE-314E-222

3U Enclosure with 14 hot-swap server blades, 2 hot-swap 2200W Power Supplies + 2 cooling fans

Server Blade: Up to 14 hot-swap server blades
Node Support: Intel based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Supports two hot-plug MBM-GEM-004/MBM-XEM-002/MBM-XEM-100 switches
- Switch modules are not included in the enclosure
Management Module:
- 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply: 2 PWS-2K21A-BR hot-swap high-efficiency 2200W, redundant power supplies
Cooling Design: 2 cooling fans
Dimensions (HxWxD): 5.215" x 17.67" x 32" (132.5mm x 449mm x 813mm)

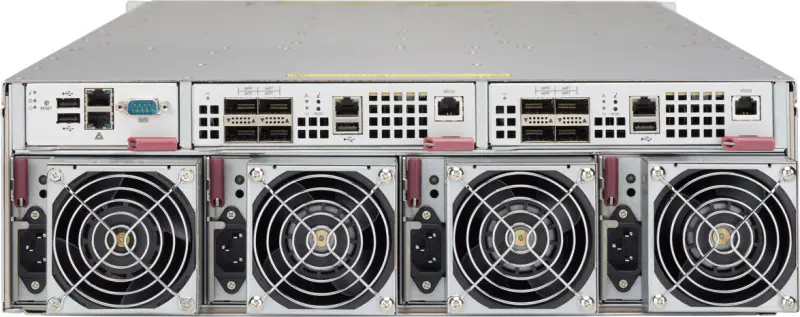

MBE-314E-422

3U Enclosure with 14 hot-swap server blades, 4 hot-swap 2000W Power Supplies + 4 cooling fans

Server Blade: Up to 14 hot-swap server blades
Node Support: Intel based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Supports two hot-plug MBM-GEM-004/MBM-XEM-002/MBM-XEM-100 switches
- Switch modules are not included in the enclosure
Management Module:
- 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply: 4 PWS-2K21A-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant power supplies
Cooling Design: 4 cooling fans
Dimensions (HxWxD): 5.215" x 17.67" x 32" (132.5mm x 449mm x 813mm)

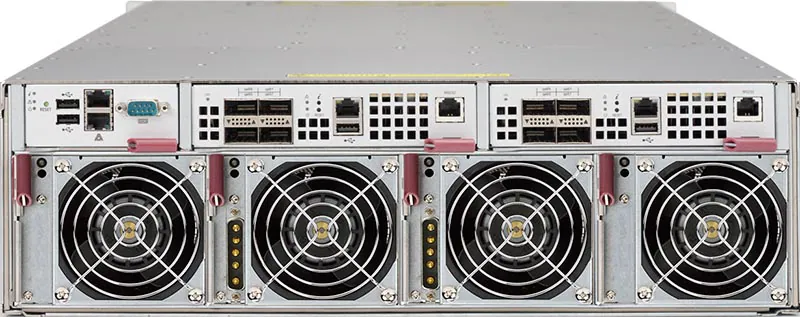

MBE-314E-220D

3U Enclosure with 14 hot-swap server blades, 2 hot-swap 2000W DC Power Supplies + 4 cooling fans

Server Blade: Up to 14 hot-swap server blades
Node Support: Intel based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-001, MBM-GEM-004, MBM-XEM-001, or MBM-XEM-002 switches
- Switch modules are not included in the enclosure
Management Module:
- 1 hot-swap Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply:
- 2 PWS-2K02D-BR hot-swap high-efficiency 2000W, redundant DC power supplies
- DC Power cables (CBL-PWEX-0980-1) are not included in the enclosure
Cooling Design: 4 cooling fans
Dimensions (HxWxD): 5.215" x 17.67" x 32" (132.5mm x 449mm x 813mm)

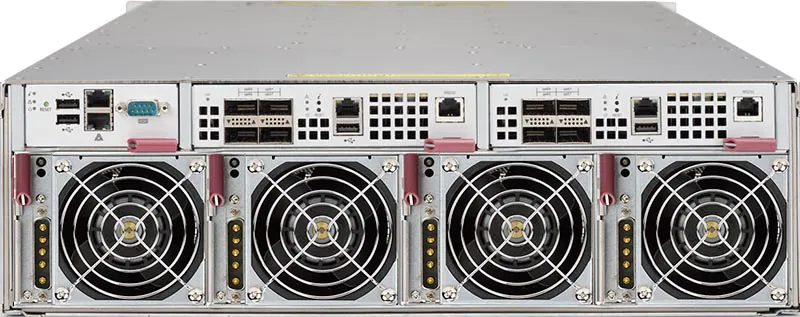

MBE-314E-420D

3U Enclosure with 14 hot-swap server blades, 4 hot-swap 2000W DC Power Supplies + 4 cooling fans

Server Blade: Up to 14 hot-swap server blades
Node Support: Intel based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-001, MBM-GEM-004, MBM-XEM-001, or MBM-XEM-002 switches
- Switch modules are not included in the enclosure
Management Module:
- 1 hot-swap Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply:
- 4 PWS-2K02D-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant DC power supplies
- DC Power cables (CBL-PWEX-0980-1) are not included in the enclosure
Cooling Design: 4 cooling fans
Dimensions (HxWxD): 5.215" x 17.67" x 32" (132.5mm x 449mm x 813mm)

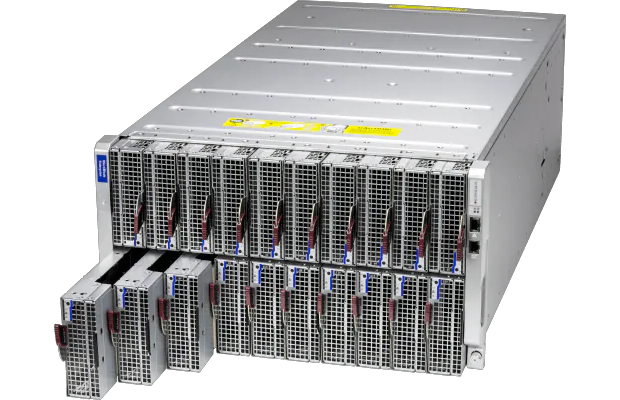

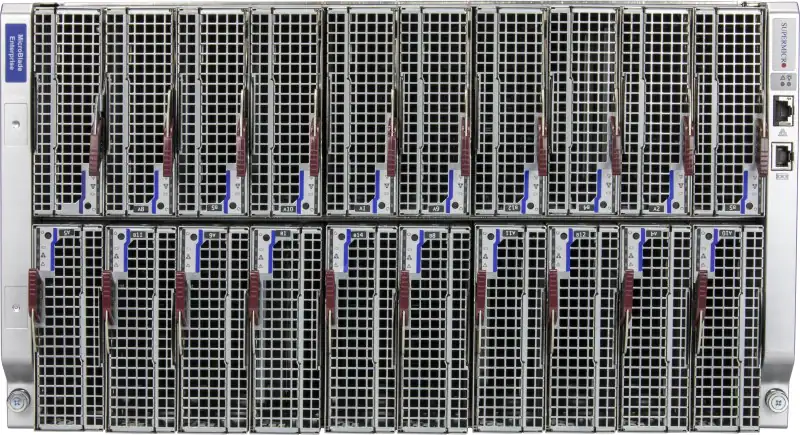

6U (20-blade) Enclosure

MBE-620E-422

6U Enclosure with 20 hot-swap server blades, 4 hot-swap 2200W Power Supplies + 4 cooling fans

Server Blade: Up to 20 hot-swap server blades
Node Support: 13th Gen Intel Core-based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap switches or pass-thru modules
  - Switches: MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, MBM-XEM-002, MBM-XEM-002+, MBM-XEM-100, SBM-25G-100, SBM-25G-200
  - Pass-thru module(s): SBM-25G-P10
- Switch modules not included in the enclosure, must be purchased separately
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure, must be purchased separately
Power Supply: 4 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1)
Cooling Design: 4 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

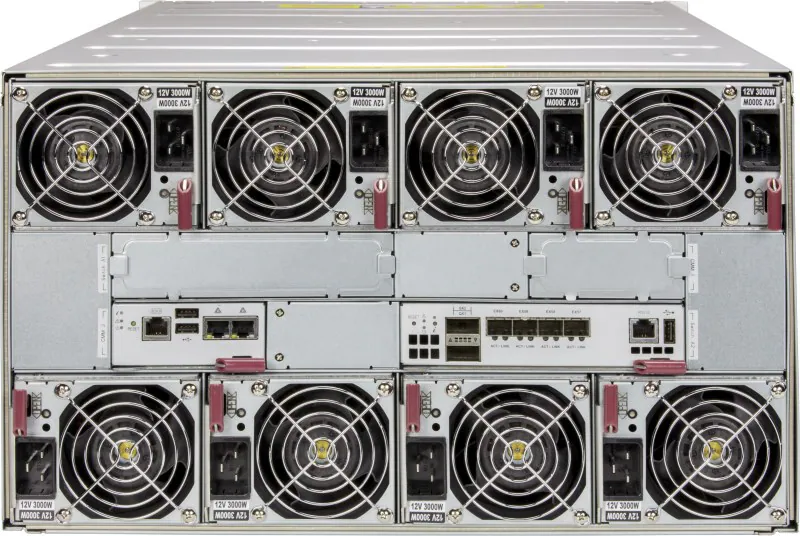

MBE-620E-430

6U Enclosure with 20 hot-swap server blades, 4 hot-swap 3000W Power Supplies + 4 cooling fans

Server Blade: Up to 20 hot-swap server blades
Node Support: 13th Gen Intel Core-based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap switches or pass-thru modules
  - Switches: MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, MBM-XEM-002, MBM-XEM-002+, MBM-XEM-100, SBM-25G-100, SBM-25G-200
  - Pass-thru module(s): SBM-25G-P10
- Switch modules not included in the enclosure, must be purchased separately
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure, must be purchased separately
Power Supply: 4 hot-swap, high-efficiency 3000W (PWS-3K01A-BR) redundant (N+N) power supplies
Cooling Design: 4 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

MBE-620E-622

6U Enclosure with 20 hot-swap server blades, 6 hot-swap 2200W Power Supplies + 2 cooling fans

Server Blade: Up to 20 hot-swap server blades
Node Support: 13th Gen Intel Core-based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap switches or pass-thru modules
  - Switches: MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, MBM-XEM-002, MBM-XEM-002+, MBM-XEM-100, SBM-25G-100, SBM-25G-200
  - Pass-thru module(s): SBM-25G-P10
- Switch modules not included in the enclosure, must be purchased separately
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure, must be purchased separately
Power Supply: 6 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1)
Cooling Design: 2 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

MBE-620E-630

6U Enclosure with 20 hot-swap server blades, 6 hot-swap 3000W Power Supplies + 2 cooling fans

Server Blade: Up to 20 hot-swap server blades
Node Support: 13th Gen Intel Core-based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap switches or pass-thru modules
  - Switches: MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, MBM-XEM-002, MBM-XEM-002+, MBM-XEM-100, SBM-25G-100, SBM-25G-200
  - Pass-thru module(s): SBM-25G-P10
- Switch modules not included in the enclosure, must be purchased separately
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure, must be purchased separately
Power Supply: 6 hot-swap, high-efficiency 3000W (PWS-3K01A-BR) redundant (N+N) power supplies
Cooling Design: 2 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

MBE-620E-822

6U Enclosure with 20 hot-swap server blades and 8 hot-swap 2200W Power Supplies

Server Blade: Up to 20 hot-swap server blades
Node Support: 13th Gen Intel Core-based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap switches or pass-thru modules
  - Switches: MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, MBM-XEM-002, MBM-XEM-002+, MBM-XEM-100, SBM-25G-100, SBM-25G-200
  - Pass-thru module(s): SBM-25G-P10
- Switch modules not included in the enclosure, must be purchased separately
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure, must be purchased separately
Power Supply: 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1)
Cooling Design: -
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

MBE-620E-830

6U Enclosure with 20 hot-swap server blades and 8 hot-swap 3000W Power Supplies

Server Blade: Up to 20 hot-swap server blades
Node Support: 13th Gen Intel Core-based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap switches or pass-thru modules
  - Switches: MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, MBM-XEM-002, MBM-XEM-002+, MBM-XEM-100, SBM-25G-100, SBM-25G-200
  - Pass-thru module(s): SBM-25G-P10
- Switch modules not included in the enclosure, must be purchased separately
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure, must be purchased separately
Power Supply: 8 hot-swap, high-efficiency 3000W (PWS-3K01A-BR) redundant (N+N) power supplies
Cooling Design: -
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

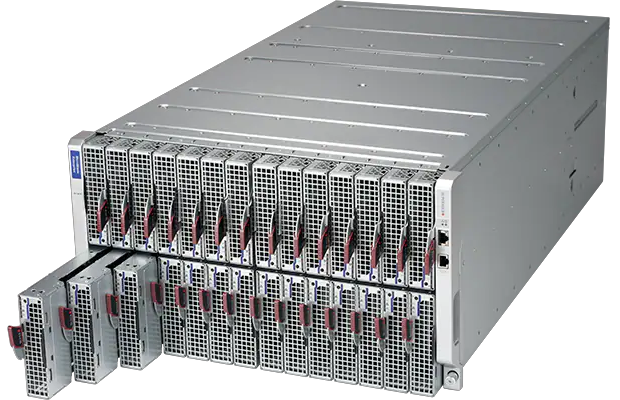

6U (28-blade) Enclosure

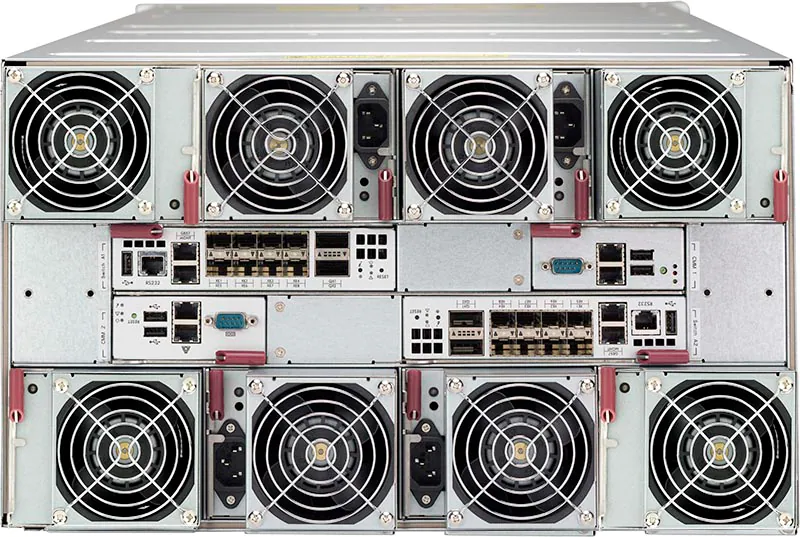

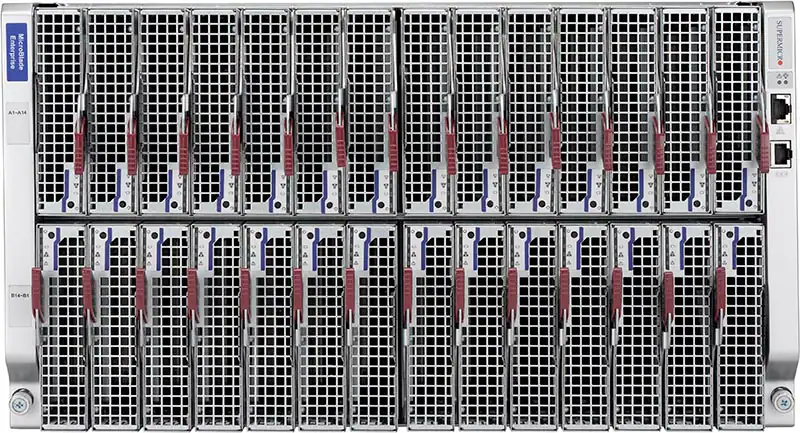

MBE-628E-422

6U Enclosure with 28 hot-swap server blades, 4 hot-swap 2200W Power Supplies + 8 cooling fans

Server Blade: Up to 28 hot-swap server blades
Node Support: Intel E3 and E5 based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches
- Switch modules are not included in the enclosure
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply: 4 PWS-2K21A-BR hot-swap high-efficiency 2200W, N+1 or N+N redundant power supplies
Cooling Design: 8 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)

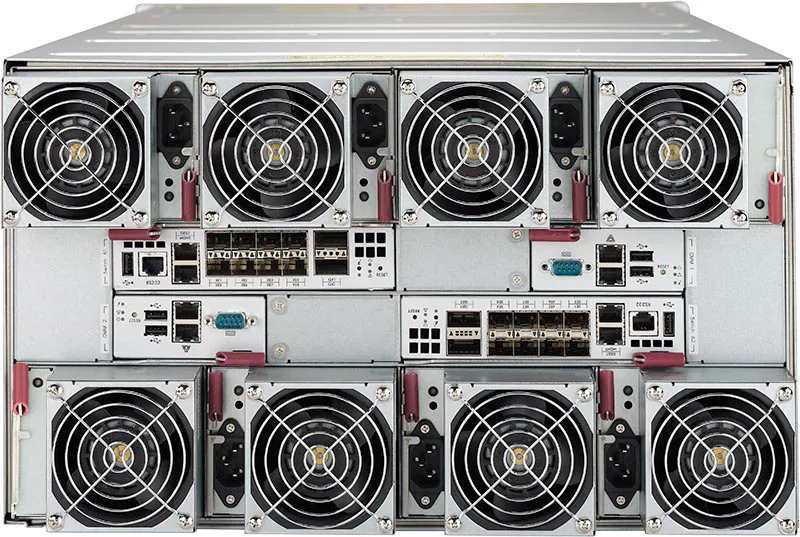

MBE-628E-622

6U Enclosure with 28 hot-swap server blades, 6 hot-swap 2200W Power Supplies + 8 cooling fans

Server Blade: Up to 28 hot-swap server blades
Node Support: Intel E3 and E5 based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches
- Switch modules are not included in the enclosure
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply: 6 PWS-2K21A-BR hot-swap high-efficiency 2200W, N+1 or N+N redundant power supplies
Cooling Design: 8 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)

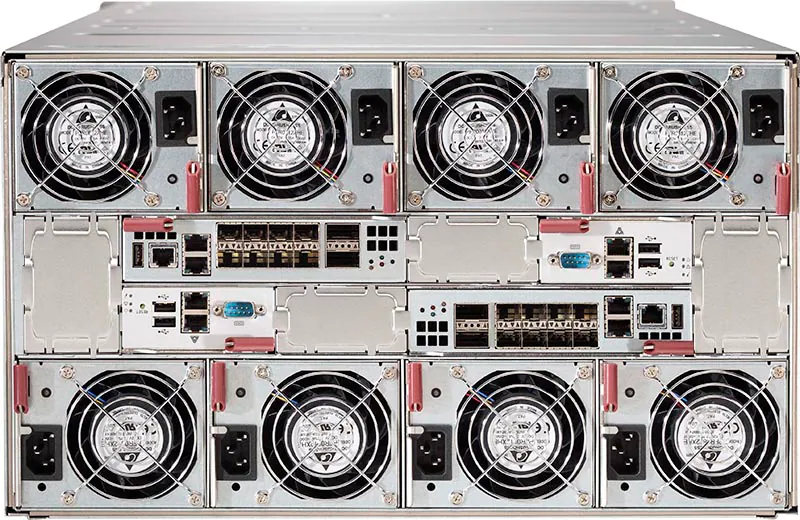

MBE-628E-822

6U Enclosure with 28 hot-swap server blades, 8 hot-swap 2200W Power Supplies + 8 cooling fans

Server Blade: Up to 28 hot-swap server blades
Node Support: Intel E3 and E5 based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches
- Switch modules are not included in the enclosure
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply: 8 PWS-2K21A-BR hot-swap high-efficiency 2200W, N+1 or N+N redundant power supplies
Cooling Design: 8 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)

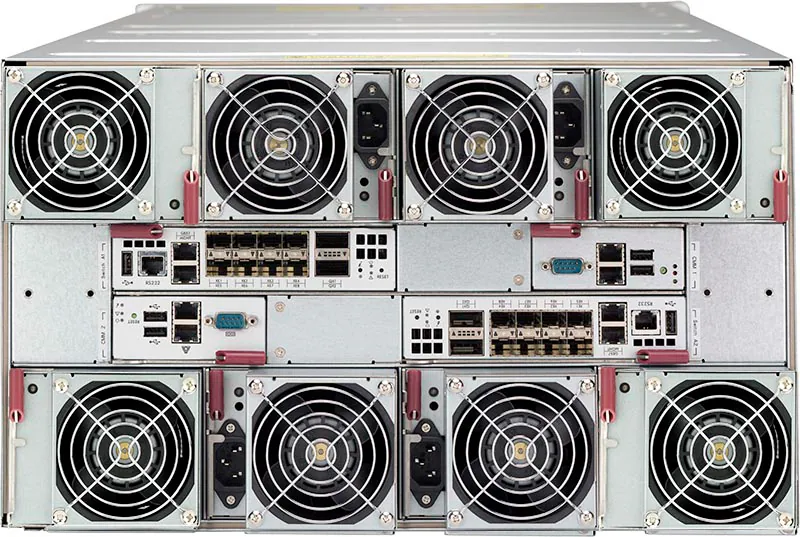

MBE-628E-420D

6U Enclosure with 28 hot-swap server blades, 4 hot-swap 2000W DC Power Supplies + 8 cooling fans

Server Blade: Up to 28 hot-swap server blades
Node Support: Intel E3 and E5 based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-001 or MBM-XEM-001 switches
- Switch modules are not included in the enclosure
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply:
- 4 PWS-2K02D-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant DC power supplies
- DC Power cables (CBL-PWEX-0980-1) are not included in the enclosure
Cooling Design: 8 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

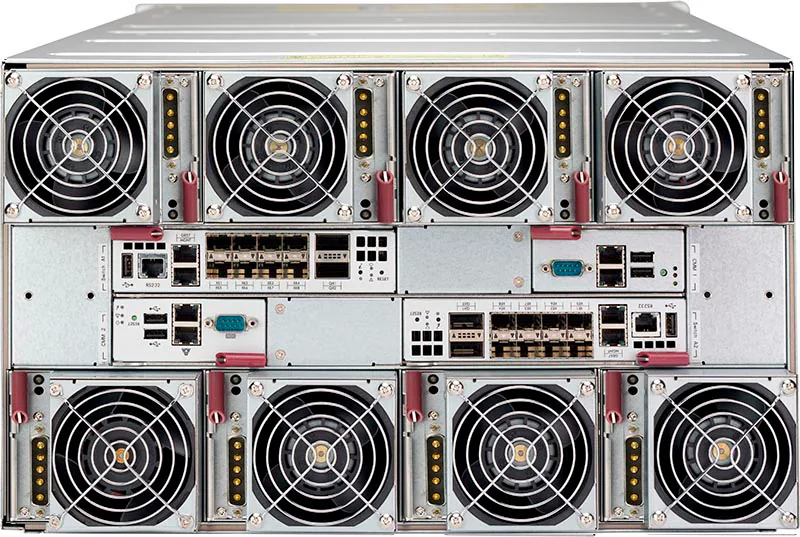

MBE-628E-820D

6U Enclosure with 28 hot-swap server blades, 8 hot-swap 2000W DC Power Supplies + 8 cooling fans

Server Blade: Up to 28 hot-swap server blades
Node Support: Intel E3 and E5 based server blades
LED: Power LED, Fault LED
GbE Switch / Pass-Through Module:
- Up to 2 hot-swap MBM-GEM-001 or MBM-XEM-001 switches
- Switch modules are not included in the enclosure
Management Module:
- Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
- Management module not included in the enclosure
Power Supply:
- 8 PWS-2K02D-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant DC power supplies
- DC Power cables (CBL-PWEX-0980-1) are not included in the enclosure
Cooling Design: 8 cooling fans
Dimensions (HxWxD): 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

3U / 6U Enclosure Blades

X12

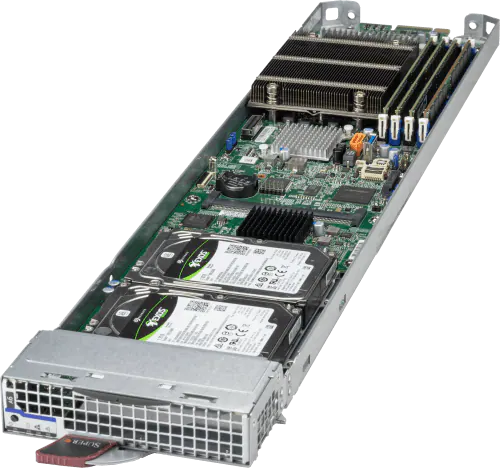

MBI-310T-4C2

3U/6U 1 Node MicroBlade Server with 2x 2.5" SAS3 (12Gbps) drives and 1 SATA3/NVMe (PCIe 3.0 from PCH)

CPU: 1
CPU Type: Socket H5 (LGA 1200), Intel Xeon processor E-2300
DIMM Slots: 4
Drive: 2
Networking: 2x 1Gb
Power Supply: Redundant

X12

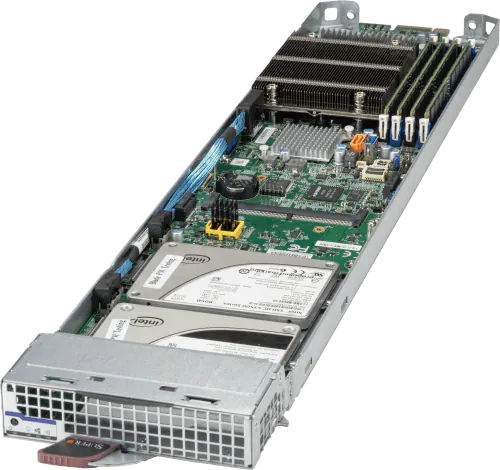

MBI-310T-4T2N

3U/6U 1 Node MicroBlade Server with 2x 2.5" U.2 SATA/NVMe drives, 1 SATA3/NVMe (PCIe 3.0 from PCH), and 1 NVMe (PCIe 4.0)

CPU: 1
CPU Type: Socket H5 (LGA 1200), Intel Xeon processor E-2300
DIMM Slots: 4
Drive: 2
Networking: 2x 10Gb
Power Supply: Redundant

X11

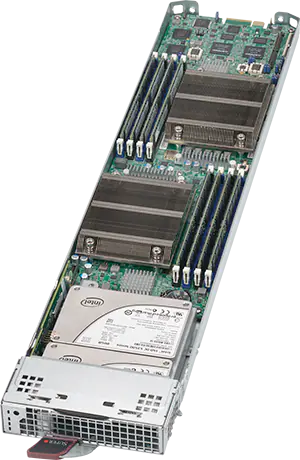

MBI-6219G-T

3U/6U 2 Node MicroBlade Server with 2x 2.5" SATA3 (6Gbps) SSDs or 1x HDD

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon E3-1200 v6/v5 processor family
DIMM Slots: 4
Drive: 1
Networking: 2x 1Gb
Power Supply: Redundant

X11

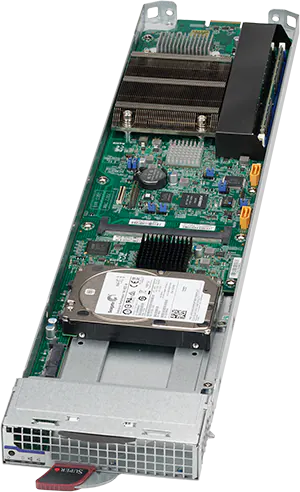

MBI-6119G-C2

3U/6U 1 Node MicroBlade Server with 2x 2.5" SAS3 (12Gbps) HDDs

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon E3-1200 v6/v5 processor family
DIMM Slots: 4
Drive: 2
Networking: 2x 1Gb
Power Supply: Redundant

X11

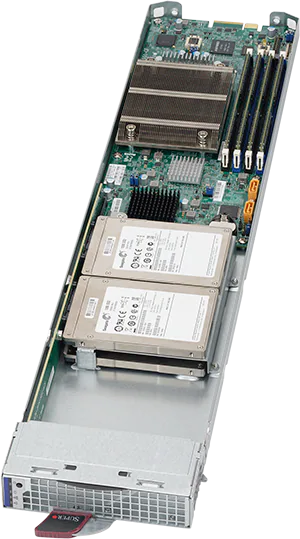

MBI-6119G-C4

3U/6U 1 Node MicroBlade Server with 2x 2.5" SAS3 (12Gbps) HDDs or 4x 2.5" SAS3 (12Gbps) SSDs

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon E3-1200 v6/v5 processor family
DIMM Slots: 4
Drive: 4
Networking: 2x 1Gb
Power Supply: Redundant

X11

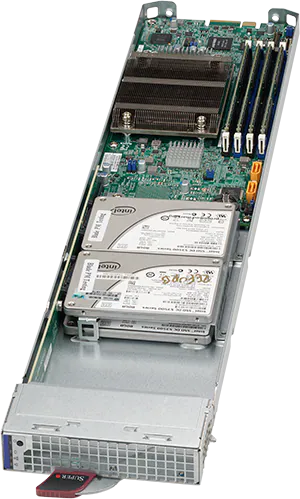

MBI-6119G-T4

3U/6U 1 Node MicroBlade Server with 2x 2.5" SATA3 (6Gbps) HDDs or 4x 2.5" SATA3 (6Gbps) SSDs

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon E3-1200 v6/v5 processor family
DIMM Slots: 4
Drive: 4
Networking: 2x 10Gb
Power Supply: Redundant

X11

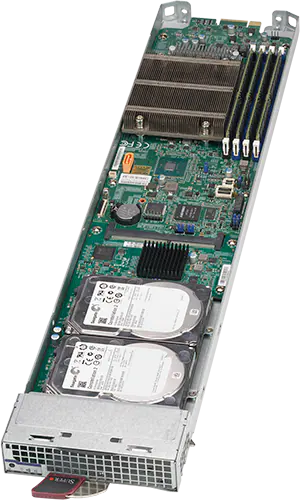

MBI-6119M-C2

3U/6U 2 Node MicroBlade Server with 2x 2.5" SAS3 (12Gbps) drives, 1 PCI-E 3.0 x4/SATA3, 1x SATADOM

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon processor E-2100/E-2200 series
DIMM Slots: 4
Drive: 2
Networking: 2x 1Gb
Power Supply: Redundant

X11

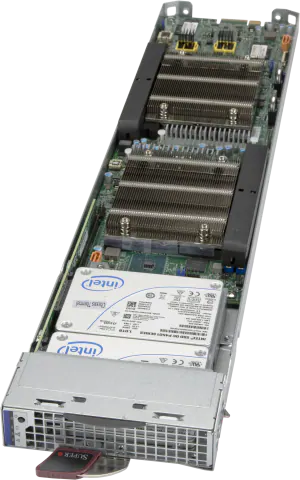

MBI-6219M-2N

3U/6U 2 Node MicroBlade Server with 2x 2.5" NVMe U.2 drives (7mm) or 1 x 15mm 2.5" NVMe U.2 drives

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon processor E-2200 series
DIMM Slots: 2
Drive: 2
Networking: 2x 10Gb
Power Supply: Redundant

X11

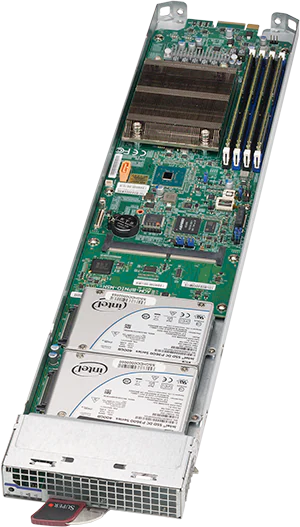

MBI-6119M-T2N

3U/6U 1 Node MicroBlade Server with 2x 2.5" NVMe/SATA3 drives and 1 PCI-E 3.0 x4/SATA3, 1x SATADOM

CPU: 1
CPU Type: Socket H4 (LGA 1151), Intel Xeon processor E-2100/E-2200 series
DIMM Slots: 4
Drive: 2
Networking: 2x 1Gb
Power Supply: Redundant

X11

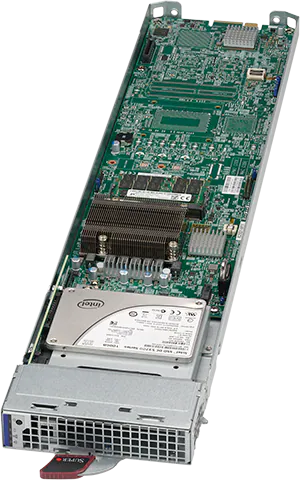

MBI-6119G-T7LX

3U/6U 1 Node MicroBlade Server with 1x 2.5" SATA3 (6Gbps) SSD per blade, 1x M.2 (80mm PCI-E 3.0 x4), 1x M.2 (110mm PCI-E 3.0 x4), 1x SATADOM

CPU: 1
CPU Type: Single Socket FCBGA 1440, Intel Xeon processor E3-1578L v5 built-in
DIMM Slots: 2
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X11

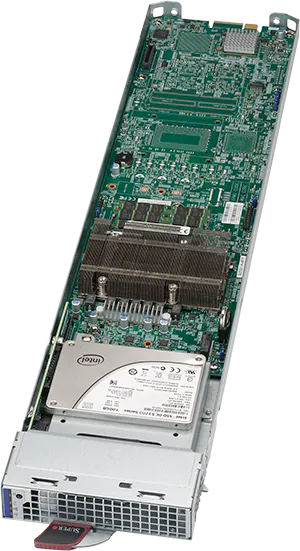

MBI-6119G-T8HX

3U/6U 1 Node MicroBlade Server with 1x 2.5" SATA3 SSD, 1x SATADOM, 2x M.2 (PCI-E 3.0 x4), 1x SATADOM

CPU: 1
CPU Type: Single Socket FCBGA 1440, Intel Xeon processor E3-1585 v5 built-in
DIMM Slots: 2
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X11

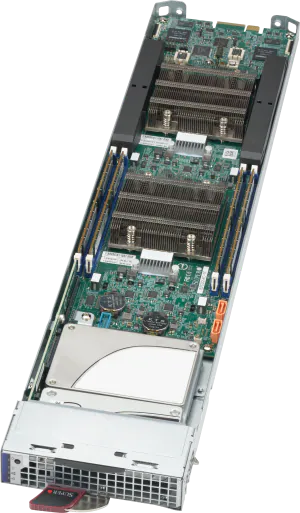

MBI-6219B-T41N

3U/6U 2 Node MicroBlade Server with 1x 2.5" HDD/SSD/NVMe U.2 per node, 1x NVMe M.2 (60/80/110mm), 1x SATADOM

CPU: 1
CPU Type: Single Socket FCBGA 2518, Intel Xeon processor processor D-2141I: 8 core, 16 Threads, 65W
DIMM Slots: 4
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X11

MBI-6219B-T63N

3U/6U 2 Node MicroBlade Server with 1x 2.5" HDD/SSD/NVMe U.2 per node, 1x NVMe M.2 (60/80/110mm), 1x SATADOM

CPU: 1
CPU Type: Single Socket FCBGA 2518, Intel Xeon processor D-2163IT: 12 core, 24 Threads, 75W
DIMM Slots: 4
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X11

MBI-6219B-T83N

3U/6U 2 Node MicroBlade Server with 1x 2.5" HDD/SSD/NVMe U.2 per node and 1x NVMe M.2 (60/80/110mm), 1x SATADOM

CPU: 1
CPU Type: Single Socket FCBGA 2518, Intel Xeon processor D-2183IT: 16 core, 32 Threads, 100W
DIMM Slots: 4
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X11

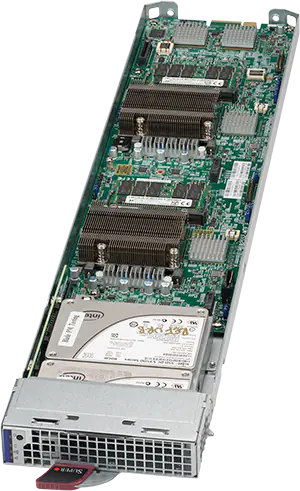

MBI-6219G-T7LX

3U/6U 2 Node MicroBlade Server with 1x 2.5" SATA3 SSDs, 1x SATADOM, 1x M.2 (80mm PCI-E 3.0 x4), 1x M.2 (110mm PCI-E 3.0 x4)

CPU: 1
CPU Type: Socket FCBGA 1440, Intel Xeon processor E3-1578L v5
DIMM Slots: 2
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X11

MBI-6219G-T8HX

3U/6U 2 Node MicroBlade Server with 1x 2.5" SATA3 SSDs, 1x SATADOM, 2x M.2 (PCI-E 3.0 x4)

CPU: 1
CPU Type: Single Socket FCBGA 1440, Intel Xeon processor E3-1585 v5 processors
DIMM Slots: 2
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X10

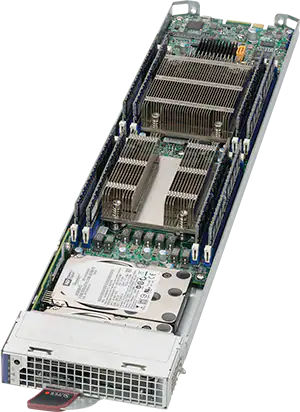

MBI-6128R-T2

3U/6U 1 Node MicroBlade Server with 2x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM

CPU: 2
CPU Type: Dual socket R3 (LGA 2011), Intel Xeon processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
DIMM Slots: 8
Drive: 2
Networking: 4x 1Gb
Power Supply: Redundant

X10

MBI-6128R-T2X

3U/6U 1 Node MicroBlade Server with 2x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM

CPU: 2
CPU Type: Dual socket R3 (LGA 2011), Intel Xeon processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
DIMM Slots: 8
Drive: 2
Networking: 2x 10Gb
Power Supply: Redundant

X10

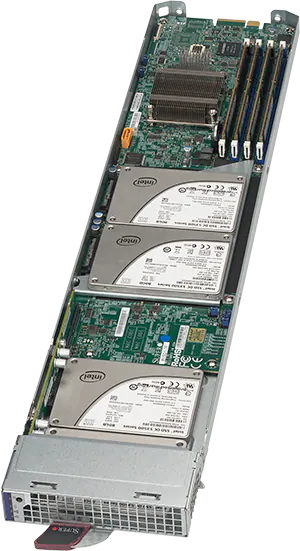

MBI-6118G-T41X

3U/6U 1 Node MicroBlade Server with 4x 2.5" SATA3 (6Gbps) drives; 2x HDD/SSD + 2x SSD, 1x SATA3 DOM

CPU: 1
CPU Type: Single socket FCBGA 1667, Intel Xeon processor D-1541: 8-Core, 16 Threads, 45W
DIMM Slots: 4
Drive: 4
Networking: 2x 10Gb
Power Supply: Redundant

X10

MBI-6118G-T81X

3U/6U 1 Node MicroBlade Server with 4x 2.5" SATA3 (6Gbps) drives; 2x HDD/SSD + 2x SSD, 1x SATA3 DOM

CPU: 1
CPU Type: Single socket FCBGA 1667, Intel Xeon processor D-1581: 16-Core, 32 Threads, 65W
DIMM Slots: 4
Drive: 4
Networking: 2x 10Gb
Power Supply: Redundant

X10

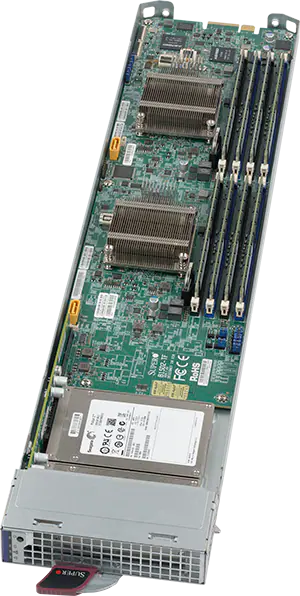

MBI-6218G-T41X

3U/6U 2 Node MicroBlade Server with 1x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM

CPU: 1
CPU Type: Single socket FCBGA 1667, Intel Xeon processor D-1541: 8-Core, 16 Threads, 45W
DIMM Slots: 4
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X10

MBI-6218G-T81X

3U/6U 2 Node MicroBlade Server with 1x 2.5" SATA3 HDD/SSD and 1x SATA DOM

CPU: 1
CPU Type: Single socket FCBGA 1667, Intel Xeon processor D-1581: 16-Core, 32 Threads, 65W
DIMM Slots: 4
Drive: 1
Networking: 2x 10Gb
Power Supply: Redundant

X13

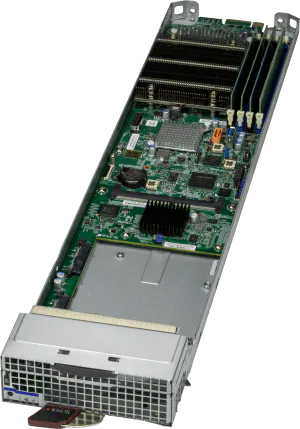

MBI-311A-1C2

6U 1 Node MicroBlade Server with 2x 2.5" SAS3 (12Gbps) drives, 1 SATA3/NVMe (PCIe 4.0 from PCH), 1x SATA DOM

CPU: 1
CPU Type: Single Socket (LGA 1700), 13th Gen Intel Xeon processor: 24 cores, 32 threads
DIMM Slots: 4
Drive: 2
Networking: 2x 1Gb
Power Supply: Redundant

X13

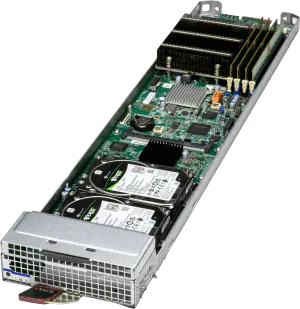

MBI-311C-1C2

6U 1 Node MicroBlade Server with 2x 2.5" SAS3 (12Gbps) drives, 1 SATA3/NVMe (PCIe 4.0 from PCH), 1x SATA DOM

CPU: 1
CPU Type: Single socket (LGA 1700), Intel Pentium, Intel Xeon E-2400 Series Processor
DIMM Slots: 4
Drive: 2
Networking: 2x 1Gb
Power Supply: Redundant

X13

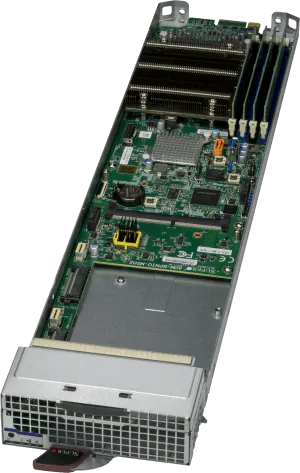

MBI-311A-1T2N

6U 1 Node MicroBlade Server with 2x 2.5" SATA/NVMe drives, 1 SATA3/NVMe (PCIe 4.0 from PCH), 1 NVMe (PCIe 4.0), 1x SATA DOM

CPU: 1
CPU Type: Single socket (LGA 1700), 13th Gen Intel Xeon processor: 24 cores, 32 threads
DIMM Slots: 4
Drive: 2
Networking: 2x 10Gb
Power Supply: Redundant

X13

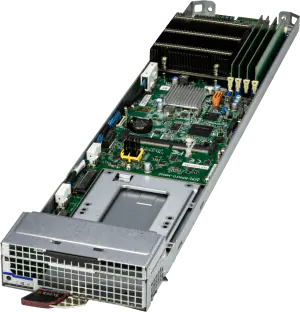

MBI-311C-1T2N

6U 1 Node MicroBlade Server with 2x 2.5" SATA/NVMe drives, 1 SATA3/NVMe (PCIe 4.0 from PCH), 1 NVMe (PCIe 4.0), 1x SATA DOM

CPU: 1
CPU Type: Single socket (LGA 1700), Intel Pentium, Intel Xeon E-2400 Series Processor
DIMM Slots: 4
Drive: 2
Networking: 2x 10Gb
Power Supply: Redundant

X12

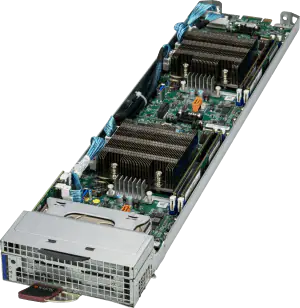

MBI-310I-1D96N

6U 2 Node MicroBlade Server with 1x 2.5" NVMe U.2 + 1 SATA/NVMe M.2 and 1x SATA DOM

CPU: 1
CPU Type: Intel Xeon D-2796NT Processor SoC
DIMM Slots: 2
Drive: 1
Networking: 2x 25Gb
Power Supply: Redundant

X10

MBI-6418A-T5H

6U 4 Node MicroBlade Server with 1x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA3 DOM

CPU: 1
CPU Type: Intel Atom Processor C2550
DIMM Slots: 2
Drive: 1
Networking: 2x 2.5Gb
Power Supply: Redundant

Important Note: MicroBlade (Atom based) is only sold as a complete system with fully configured CPUs, Memory, HDD/SSD and/or SATA DOM.

X10

MBI-6418A-T7H

6U 4 Node MicroBlade Server with 1x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA3 DOM

CPU: 1
CPU Type: Intel Atom Processor C2750
DIMM Slots: 2
Drive: 1
Networking: 2x 1Gb, 2x 2.5Gb
Power Supply: Redundant

Important Note: MicroBlade (Atom based) is only sold as a complete system with fully configured CPUs, Memory, HDD/SSD and/or SATA DOM.
