Overview
Highlights
- 3U systems supporting 24, 12 or 8 nodes with 4 DIMM slots
- Hot-swappable 3.5” or 2.5” NVMe/SAS3/SATA3 options
- Onboard 10 Gigabit Ethernet for optimized cost effectiveness
Innovations
- Designed for Hyperscale and Cost Effectiveness
- Power and Density Optimized
- Front I/O Option for Easy Access and Serviceability
Optimized for:
- Hosting & Content Delivery
- Hyperscale / Hyperconverge
- Resource-saving Architecture
- Data Center
- Cloud
Product Features
Form Factor
3U MicroCloud Server Enclosures
Memory
Up to 4 DIMM slots, up to 512GB DDR4 memory per node
Power
Platinum and Titanium Level (96%) Efficiency
Management
Open Industry Standard IPMI, Redfish APIs, Rack Scale Management
Processors
Up to Intel Xeon processor E5-2600 v4/v3, E3-1200 v6/v5, E/D-2100, Intel Atom processor C3900 product families
Drives
Up to 4x 2.5" SATA3 drives or 2x U.2 NVMe + 2x 2.5" SATA3 drives per node
Input/Output
Up to 1 PCI-E x16 low-profile expansion slot with flexible on-board Micro-LP networking options
Services
Worldwide Global Services
8-Node Servers
X13

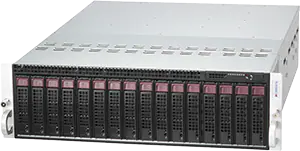

SYS-531MC-H8TNR
3U 8-node MicroCloud SuperServer with 2 hot-swap 3.5" NVMe/SAS/SATA drive bays; 2 M.2 NVMe/SATA slots
- CPU: 1
- CPU Type: Single Socket LGA-1700 (Socket V0), Intel Xeon E-2400/Pentium G7400 and G7400T Processors
- DIMM Slots: 4
- Drive Size: 3.5"
- Drive: 2
- Networking: -
- Power Supply: 2x 2200W Redundant
H13

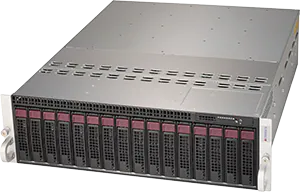

AS-3015MR-H8TNR
3U 8-node MicroCloud A+ Server with 2 front fixed 3.5"/2.5" NVMe/SAS/SATA drive bays; 1 M.2 NVMe/SATA slot
- CPU: 1
- CPU Type: Single Socket AM5 (LGA-1718), AMD EPYC 4004 Series Processor
- GPU: -
- DIMM Slots: 4
- Drive Size: 2.5"/3.5"
- Drive: 2
- Networking: -
- Power Supply: 2x 2200W Redundant
X12
SYS-530MT-H8TNR
3U 8-node MicroCloud SuperServer with 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays; 2 M.2 NVMe/SATA slots
- CPU: 1
- CPU Type: Single Socket H5 (LGA-1200), Intel Xeon E-2300 series and 10th Gen. Pentium Processors
- GPU: -
- DIMM Slots: 4
- Drive Size: 3.5"
- Drive: 2
- Networking: 2x 1Gb
- Power Supply: 2x 2200W Redundant
X11

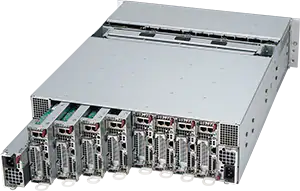

SYS-5039MC-H8TRF
3U 8-node MicroCloud SuperServer with 2x 3.5" SATA3 drives or 2x 2.5" SATA3 w/ optional kits
- CPU: 1
- CPU Type: Single Socket H4 (LGA 1151), Intel Xeon processor E-2100/E-2200, 8th Gen. Intel Core i3 Processors, Intel Celeron, Intel Pentium
- GPU: 1
- DIMM Slots: 4
- Drive Size: 2.5"/3.5"
- Drive: 2
- Networking: 2x 1Gb
- Power Supply: 2200W Redundant
X11

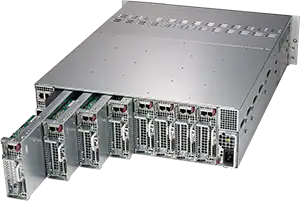

SYS-5039MP-H8TNR
3U 8-node MicroCloud SuperServer with 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits)
- CPU: 1
- CPU Type: S Single Socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processor (Cascade Lake/Skylake)
- GPU: 1
- DIMM Slots: 4
- Drive Size: 2.5"/3.5"
- Drive: 2
- Networking: 2x 1Gb
- Power Supply: 2200W Redundant
X11
SYS-5039MS-H8TRF
3U 8-node MicroCloud SuperServer with 2 hot-swap 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits)
- CPU: 1
- CPU Type: Single socket H4 (LGA 1151), Intel Xeon processor E3-1200 v6/v5, Intel 7th/6th Gen. Core i3 series, Intel Celeron and Intel Pentium
- GPU: -
- DIMM Slots: 4
- Drive Size: 2.5"/3.5"
- Drive: 2
- Networking: 2x 1Gb
- Power Supply: 1600W Redundant
10-Node Servers
12-Node Servers
X12

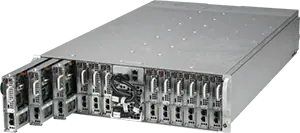

SYS-530MT-H12TRF
3U 12-node MicroCloud SuperServer with 2 internal fixed 3.5" NVMe/SAS drive bays; 1 M.2 SATA slot
- CPU: 1
- CPU Type: Single Socket H5 (LGA-1200), Intel Xeon processor E-2300 series and 10th Gen Pentium Processors
- GPU: -
- DIMM Slots: 4
- Drive Size: 3.5"
- Drive: 2
- Networking: 2x 1Gb
- Power Supply: 2x 2200W Redundant
X11

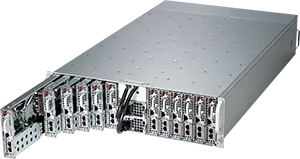

SYS-5039MC-H12TRF
3U 12-node MicroCloud SuperServer with 2x 3.5" SATA3 drives or 4x 2.5" SATA3 or 2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
- CPU: 1
- CPU Type: Single socket H4 (LGA 1151); Intel Xeon processor E-2100/E-2200, 8th Gen Intel Core i3 Processors, Intel Celeron, Intel Pentium
- GPU: -
- DIMM Slots: 4
- Drive Size: 2.5"/3.5"
- Drive: 4
- Networking: 2x 1Gb
- Power Supply: 2000W Redundant
X11
SYS-5039MA8-H12RFT
3U 12-node MicroCloud SuperServer with 2x 3.5" SATA3 or 4x 2.5" SATA3 HDDs or 2x 2.5" NVMe + 2x 3.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
- CPU: 1
- CPU Type: Single socket FCBGA1310, Intel Atom Processor C3750
- GPU: -
- DIMM Slots: 4
- Drive Size: 3.5"
- Drive: 4
- Networking: 2x 10Gb
- Power Supply: 2000W Redundant
