Single Processor Rackmount Servers

Single CPU Servers for Cloud and Enterprise

The industry's broadest portfolio of single processor servers providing optimal choice for small to midsize workloads

X14 1U/2U UP Hyper with Intel Xeon 6

Flagship Rackmount Server Optimized for Single-Processor Performance

CPU: Intel Xeon 6700 series processors with E-cores
Memory: Up to 16 DIMMs, 1TB DDR5
Drives: Up to 8 hot-swap 2.5″ NVMe/SAS/SATA + 4 SAS/SATA or 24 hot-swap 2.5" SAS/SATA
PCIe: Up to 2 PCIe 5.0 slots + 1 PCIe 5.0 AIOM

X14 1U UP CloudDC with Intel Xeon 6

OCP DC-MHS modular design for scale-out data centers

CPU: Intel Xeon 6700 series processors with E-cores
Memory: Up to 16 DIMMs, 1TB DDR5
Drives: Up to 12 hot-swap 2.5" SAS/SATA
PCIe: Up to 2 PCIe 5.0 slots + 1 PCIe 5.0 AIOM slot + 1 DC-SCM

X14 1U/2U WIO with Intel Xeon 6

Next-Generation Performance with Maximum Flexibility for Enterprise Applications

CPU: Intel Xeon 6700 series processor with E-cores
Memory: Up to 8 DIMMs, 1TB DDR5
Drives: Up to 8 hot-swap 2.5" SATA + 2 NVMe or 8 hot-swap 3.5" SATA/SAS
PCIe: Up to 5 PCIe 5.0 slots

H13 Hyper-U with PCIe 5.0

Enterprise-Focused Single-Socket Server Delivering Memory Density, Flexibility and Power Efficiency

CPU: AMD EPYC 9004 Series Processor
Memory: Up to 24 DIMMs, 6TB DDR5
Drives: Up to 12 hot-swap 3.5" or 24 hot-swap 2.5" NVMe/SAS/SATA
PCIe: Up to 3 PCIe 5.0 x16 slots (1U) or 4 PCIe 5.0 x16 slots/8 PCIe 5.0 x8 slots (2U)

X13/H13 1U/2U CloudDC with PCIe 5.0

Next-Generation All-in-One Servers Providing High Storage and Expansion Capacity and Flexible I/O Options for Cloud Scale Data Centers

CPU: 5th/4th Gen Intel Xeon Scalable Processor or AMD EPYC 9004 Series Processor
Memory: Up to 116 DIMMs, 4TB DDR5
Drives: Up to 12 hot-swap 3.5" or 10 hot-swap 2.5" NVMe/SATA
PCIe: Up to 2 PCIe 5.0 x16 slots (1U) or 4 PCIe 5.0 x16 slots (2U) + 2 AIOM/NIC slots (OCP compliant)

X13/H13 1U/2U WIO with PCIe 5.0

Cost-optimized Storage with Flexible I/O Options for Custom Applications

CPU: 5th/4th Gen Intel Xeon Scalable Processor or AMD EPYC 9004 Series Processor
Memory: Up to 8 DIMMs, 2TB DDR5
Drives: Up to 10 hot-swap 2.5" SATA/NVMe or 12 hot-swap 3.5" SATA/NVMe
PCIe: Up to 4 PCIe 5.0 slots

1U WIO/Mainstream with Xeon-E

Ultra-efficient, compact rackmount servers for enterprise and small office workloads

CPU: Intel Xeon E-2400 series or Intel Pentium Processor
Memory: Up to 4 DIMMs, 128GB DDR5
Drives: Up to 8 hot-swap 2.5”, 4 hot-swap 3.5" NVMe/SAS/SATA or 3 internal SATA
PCIe: Up to 2 PCIe 5.0 x8 slots or 1 PCIe 5.0 x16 slot

H13 1U/2U Mainstream with PCIe 5.0

Economical servers designed for small, medium businesses, and finanacial companies

CPU: AMD EPYC 4004 Series Processor
Memory: Up to 4 DIMMs, 192GB DDR5
Drives: Up to 8 front or internal 3.5" SAS/SATA
PCIe: Up to 1 PCIe 5.0 x16 FHHL slot (1U) or 1 PCIe 4.0 x4 LP + 2 PCIe 5.0 x16 LP slots (2U)

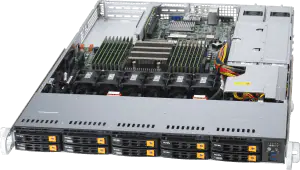

X12/H12 1U CloudDC and WIO with PCIe 4.0

All-in-One Servers with PCIe 4.0 and Flexible I/O Options for Cloud Scale Data Centers

CPU: 3rd Gen Intel Xeon Scalable Processor or AMD EPYC 7003/7002 Series Processor
Memory: Up to 2TB (Xeon Scalable)/4TB(EPYC)
Drives: Up to 10 hot-swap 2.5" SATA/U.2 NVMe or 4 hot-swap 3.5" SATA

X12/H12 2U CloudDC and WIO with PCIe 4.0

High Storage and Expansion Capacity with PCIe 4.0 and Flexible I/O Options for Cloud Scale Data Centers

CPU: 3rd Gen Intel Xeon Scalable Processors or AMD EPYC 7003/7002 Series Processor
Memory: Up to 2TB(Xeon Scalable)/4TB (EPYC)
Drives: Up to 24 hot-swap 2.5" U.2 NVMe or 12 hot-swap 3.5" SATA

X12 1U Mainstream with PCIe 4.0

Short-depth Servers with PCIe 4.0 for SMB Applications, Virtualization, Web Hosting, and File Server Applications

CPU: 3rd Gen Intel Xeon Scalable Processor
Memory: Up to 2TB
Drives: 4 hot-swap 3.5 NVMe/SATA

H12/H11 2U Mainstream

Versatile Entry Level and Volume Servers for Enterprise Server Applications

CPU: AMD EPYC 7003/7002/7001 Series Processors
Memory: Up to 2TB
Drives: Up to 12 hot-swap 3.5" SATA + 2 rear hot-swap 2.5" SATA (optional)

X14 1U/2U UP Hyper with Intel Xeon 6

X14

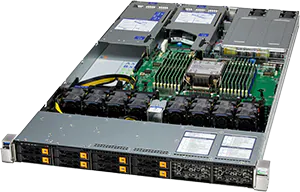

SYS-112H-TN

1U UP Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

CPU: 1
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 8
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Native)

X14

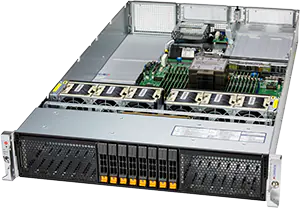

SYS-212H-TN

2U UP Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

CPU: 1
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 8
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Native)

X14 1U UP CloudDC with Intel Xeon 6

X14

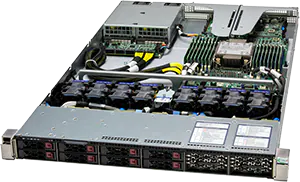

SYS-112C-TN

1U UP CloudDC with DC-MHS, up to 12 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

CPU: 1
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 16
Drive Size: 2.5"
Drive: 8
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X14 1U/2U WIO with Intel Xeon 6

X14

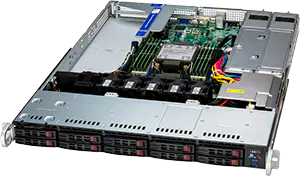

SYS-112B-WR

1U UP WIO with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

CPU: 1
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 8
Drive Size: 2.5"
Drive: 8
Networking: 2x 1G
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

X14

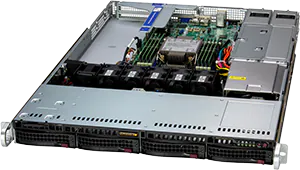

SYS-512B-WR

1U UP WIO with 4 hot-swap 3.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

CPU: 1
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 8
Drive Size: 3.5"
Drive: 4
Networking: 2x 1G
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

X14

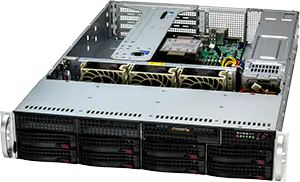

SYS-522B-WR

2U UP WIO with 8 hot-swap 3.5" SAS/SATA (4 NVMe hybrid) bays and up to 5 PCIe 5.0 slots

CPU: 1
CPU Type: Intel Xeon 6 6700 series processors with E-cores
DIMM Slots: 8
Drive Size: 3.5"
Drive: 8
Networking: 2x 1G
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

H13 Hyper-U with PCIe 5.0

H13

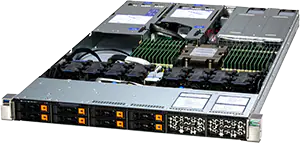

AS-1115HS-TNR

1U UP Hyper with 8 hot-swap 2.5" drive bays and 3 PCIe 5.0 slots

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 24
Drive Size: 2.5"
Drive: 8
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

H13

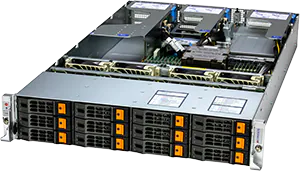

AS-2015HS-TNR

2U UP Hyper with 12 hot-swap 3.5" drive bays and up to 8 PCIe 5.0 slots

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 24
Drive Size: 2.5"/3.5"
Drive: 12
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

H13

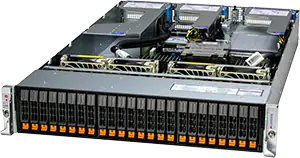

AS-2115HS-TNR

2U UP Hyper with 24 hot-swap 2.5" drive bays and up to 1 PCIe 5.0 slots

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 24
Drive Size: 2.5"
Drive: 24
Networking: AIOM
Interface: SATA (Optional)
SAS (Optional)
NVMe (Optional)

X13/H13 1U/2U CloudDC with PCIe 5.0

X13

SYS-111C-NR

1U UP CloudDC with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 slots + 2 PCIe 5.0 AIOM slots

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 2.5"
Drive: 10
Networking: AIOM
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

X13

SYS-521C-NR

2U UP CloudDC with 12 hot-swap 3.5" SAS\/SATA (2 NVMe hybrid) bays and 6 PCIe 5.0 slots + 1 PCIe 5.0 AIOM slot

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 16
Drive Size: 3.5"
Drive: 10
Networking: AIOM
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

H13

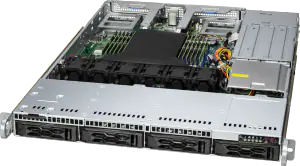

AS-1015CS-TNR

1U CloudDC with 4 hot-swap 3.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 12
Drive Size: 3.5"
Drive: 4
Networking: AIOM
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

H13

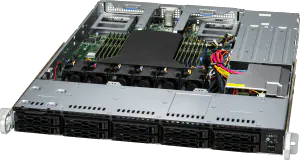

AS-1115CS-TNR

1U CloudDC with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 12
Drive Size: 2.5"
Drive: 10
Networking: AIOM
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

H13

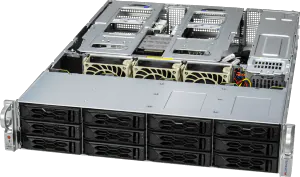

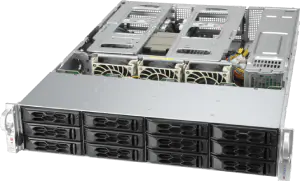

AS-2015CS-TNR

2U CloudDC with 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 AIOM slots

CPU: 1
CPU Type: AMD EPYC 9004 series processors
DIMM Slots: 12
Drive Size: 3.5"
Drive: 12
Networking: AIOM
Interface: SATA (Native)
SAS (Optional)
NVMe (Optional)

X13/H13 1U/2U WIO with PCIe 5.0

X13

SYS-111E-WR

1U UP WIO with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 8
Drive Size: 2.5"
Drive: 10
Networking: 2x 1G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

X13

SYS-511E-WR

1U UP WIO with 4 hot-swap 3.5" SAS/SATA bays and 3 PCIe 5.0 slots

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 8
Drive Size: 3.5"
Drive:4
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X13

SYS-521E-WR

2U UP WIO with 8 hot-swap 3.5" SAS/SATA (4 NVMe hybrid) bays and up to 5 PCIe 5.0 slots

CPU: 1
CPU Type: 4th/5th Gen Intel Xeon Scalable processors
DIMM Slots: 8
Drive Size: 3.5"
Drive: 8
Networking: 2x 1G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

H13

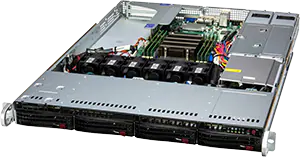

AS-1015SV-WTNRT

1U UP WIO with 4 hot-swap 3.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots

CPU: 1
CPU Type: AMD EPYC 8004 series processor
DIMM Slots: 6
Drive Size: 3.5"
Drive: 4
Networking: 2x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

H13

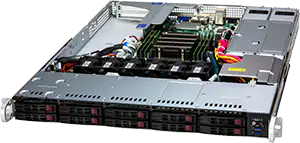

AS-1115SV-WTNRT

1U UP WIO with 10 hot-swap 2.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 3 PCIe 5.0 x16 slots

CPU: 1
CPU Type: AMD EPYC 8004 series processor
DIMM Slots: 6
Drive Size: 2.5"
Drive: 10
Networking: 2x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

H13

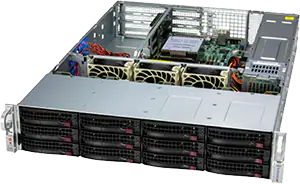

AS-2015SV-WTNRT

2U UP WIO with 12 hot-swap 3.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots + 2 PCIe 5.0 x8 LP slots

CPU: 1
CPU Type: AMD EPYC 8004 series processor
DIMM Slots: 6
Drive Size: 3.5"
Drive: 12
Networking: 2x 10G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

1U WIO/Mainstream with Xeon-E

X13

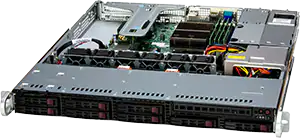

SYS-111R-M

1U Mainstream server with 8 hot-swap 2.5" SAS/SATA bays, 2 PCIe 5.0 slots and internal SAS slot

CPU: 1
CPU Type: Intel Xeon E-2400 series processors and 12th Gen Pentium processors
DIMM Slots: 4
Drive Size: 2.5"
Drive: 8
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X13

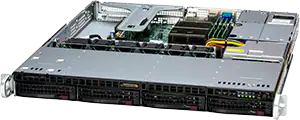

SYS-511R-M

1U Mainstream server with 4 hot-swap 3.5" SAS/SATA bays, 2 PCIe 5.0 slots and internal SAS slot

CPU: 1
CPU Type: Intel Xeon E-2400 series processors and 12th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 4
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X13

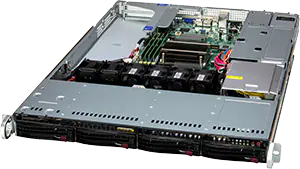

SYS-511R-W

1U WIO with 4 hot-swap 3.5" SAS\/SATA (2 NVMe hybrid) bays, up to 2 PCIe 5.0 slots and 1 PCIe 4.0 slot

CPU: 1
CPU Type: Intel Xeon E-2400 series processors and 12th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 4
Networking: 2x 1G
Interface: SAS (Optional)
NVMe (Optional)
SATA (Native)

X13

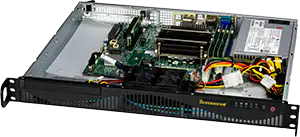

SYS-511R-ML

1U short-depth server with up to 3 internal 2.5" SATA bays and 1 PCIe 5.0 x16 slot

CPU: 1
CPU Type: Intel Xeon E-2400 series processors and 12th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 1
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X12

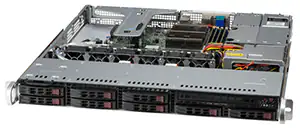

SYS-110T-M

1U UP mainstream with 8 hot-swap 2.5" drive bays

CPU: 1
CPU Type: Intel Xeon E-2300 series processors and 10th Gen Pentium processors
DIMM Slots: 4
Drive Size: 2.5"
Drive: 8
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X12

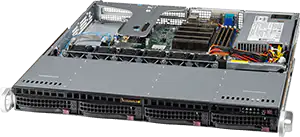

SYS-510T-M

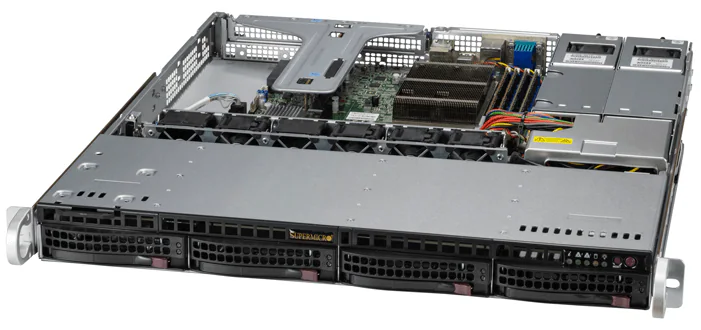

1U UP mainstream with 4 hot-swap 3.5" drive bays

CPU: 1
CPU Type: Intel Xeon E-2300 series processors and 10th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 4
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X12

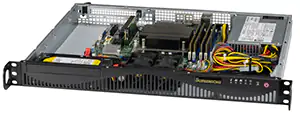

SYS-510T-ML

1U UP short-depth mainstream server

CPU: 1
CPU Type: Intel Xeon E-2300 series processors and 10th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 1
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X12

SYS-510T-MR

1U UP mainstream with 4 hot-swap 3.5" drive bays and redundant power supplies

CPU: 1
CPU Type: Intel Xeon E-2300 series processors and 10th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 4
Networking: 2x 1G
Interface: SAS (Optional)
SATA (Native)

X12

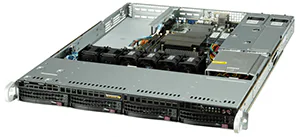

SYS-510T-WTR

1U UP WIO with 4 hot-swap 3.5" drive bays and 2 PCIe 4.0 slots

CPU: 1
CPU Type: Intel Xeon E-2300 series processors and 10th Gen Pentium processors
DIMM Slots: 4
Drive Size: 3.5"
Drive: 4
Networking: 2x 10G
Interface: SAS (Optional)
SATA (Native)
