Super Micro

SuperBlade

Highest Density x86 Multi-Node Server for Enterprise Cloud, HPC Applications


4U Enclosure 6U Enclosure 8U Enclosure

Overview

Highlights

  • Available in 8U, 6U and 4U enclosures with hot-swap NVMe support
  • Advanced networking including NDR/HDR/EDR, InfiniBand and 25 Gigabit Ethernet
  • Available in air and direct liquid cooling

Innovations

  • Resource Saving Architecture
  • New support for EDSFF E1.S and E3.S drives

Optimized for:

  • HPC
  • Hybrid Cloud
  • EDA
  • Virtualization
  • Financial Services

Product Features

Enclosure
8U, 6U and 4U Blade Server Enclosure

Memory
Up to 32 DIMM Slots, up to 8TB DDR5-6400 memory per node

Power
Up to 8x 3000W Titanium Level power supplies

Management
Open Industry Standard IPMI, Redfish APIs, Full Suite of Management Software including SuperCloud Composer

Processors
Single or dual Intel Xeon 6 processors up to 330W per node, or single AMD EPYC processor up to 280W TDP

Drives
Up to 8 E3.S, 4 E1.S or 2 U.2 2.5” drives per node

Input/Output
Redundant 25Gb/10Gb/1Gb Ethernet switches; Up to 400G/200G InfiniBand or 100G Intel Omni-Path Architecture networking for HPC applications

Services
Worldwide Global Services

Enclosures

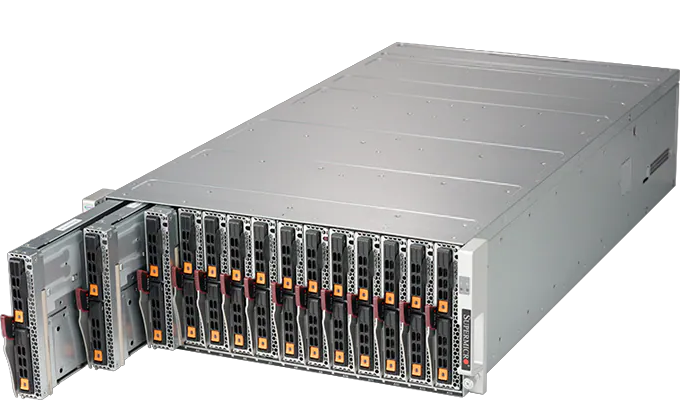

4U

Direct-to-chip liquid-cooled systems for high-density AI infrastructure at scale.


Blade Support: Up to 14x 2-socket blade servers
CPU Support: 3rd Gen Intel Xeon Scalable processors
Networking: Up to 2 hot-pluggable 25G/10G/1G Ethernet switches
Management: Single hot-pluggable management module
Power Supply:
  • Power Supply: Up to 4 hot-pluggable 2200W AC
  • Battery Backup Power: Up to 2 hot-pluggable 1200W BBP modules

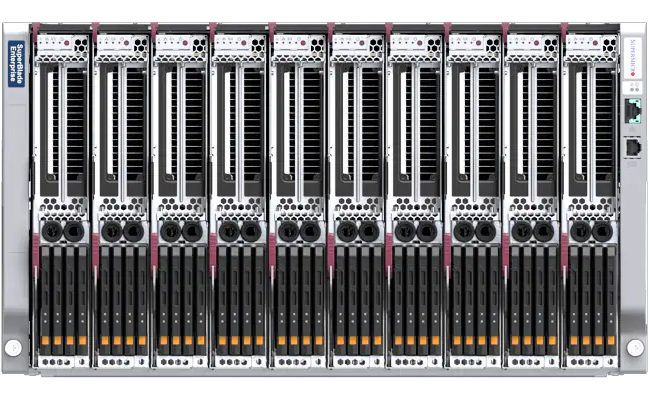

6U

Modular Building Block Platform Supporting Today's and Future GPUs, CPUs, and DPUs


Blade Support:
  • Up to 10x 1-socket or 2-socket blade servers
  • Up to 5x full-height double-width 1-socket or 2-socket blade servers
  • Up to 14x 1-socket or 2-socket blade servers
CPU Support:
  • 5th/4th Gen Intel Xeon Scalable processors
  • Intel Xeon W processors
Networking: Up to 4 hot-pluggable 25G/10G/1G Ethernet switches
Management: Up to dual redundant management modules
Power Supply: Up to 8 hot-pluggable 2200/3000W AC

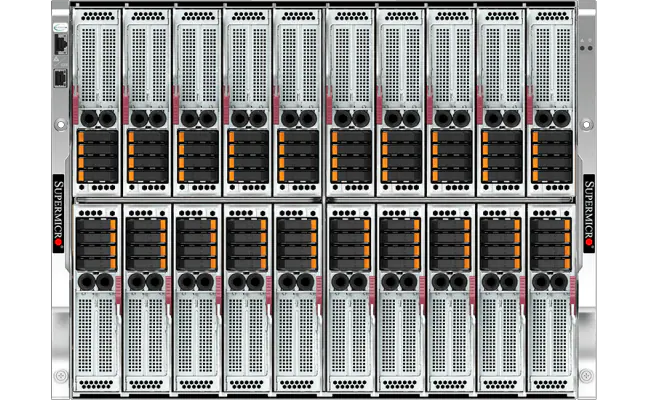

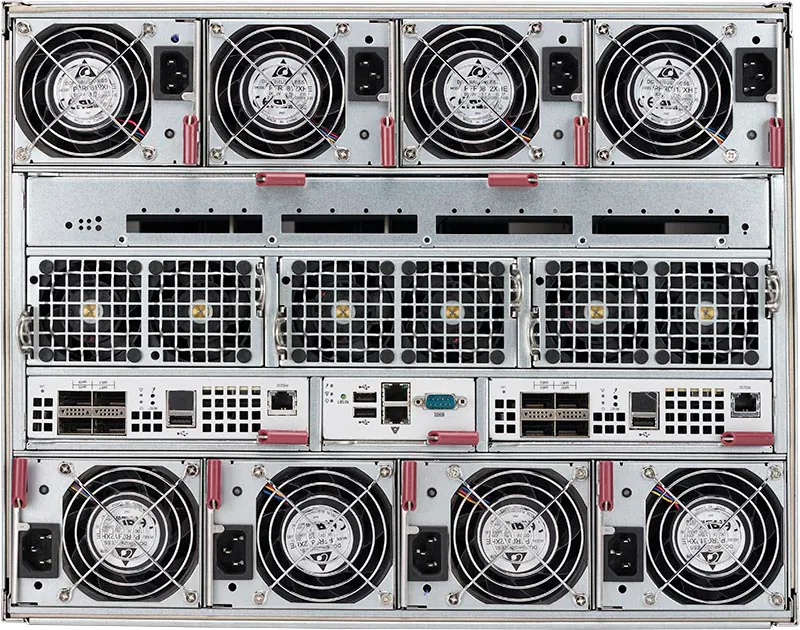

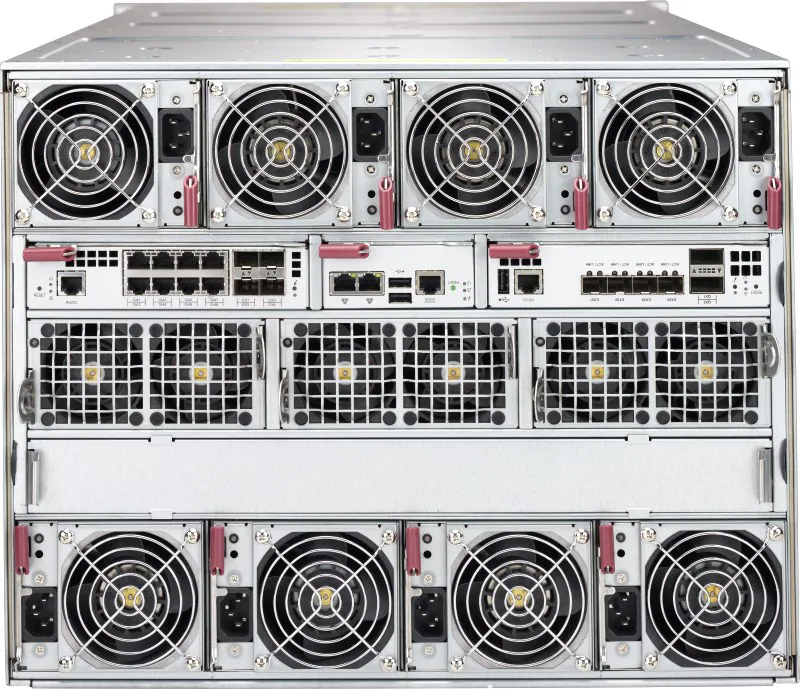

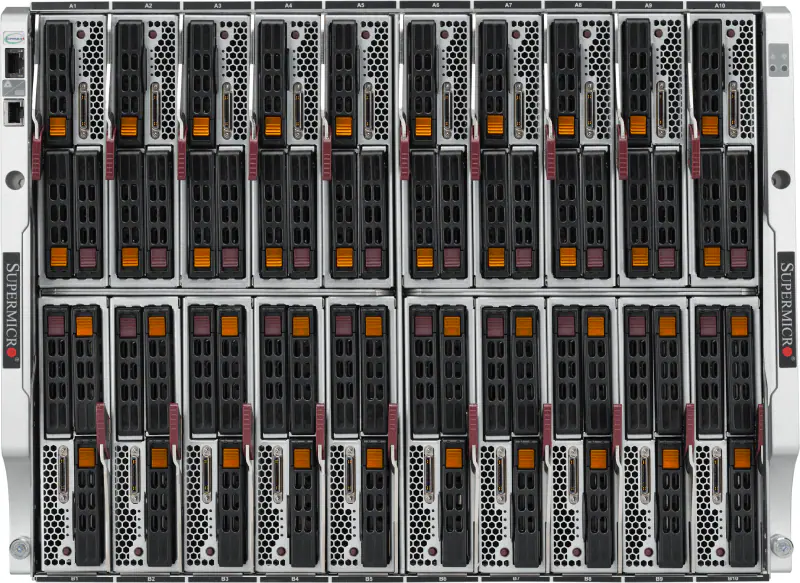

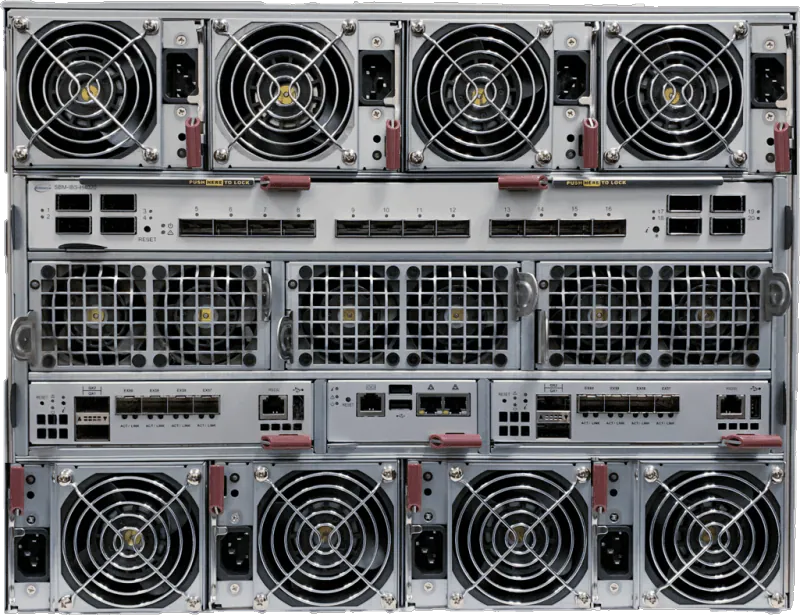

8U

Multi-processor system combining CPU and GPU, Designed for the Convergence of AI and HPC

Blade Support:
  • Up to 20x 1-socket or 2-socket blade servers
  • Up to 10x 4-socket blade servers
  • Support mixed blade servers in a single enclosure
CPU Support:
  • 5th/4th Gen Intel Xeon Scalable processors
  • 3rd Gen AMD EPYC processors
Networking:
  • Up to 4 hot-pluggable 25G Ethernet switches with add-on card
  • Single HDR/EDR InfiniBand switch with add-on card
Management: Up to dual redundant management modules
Power Supply: Up to 8 hot-pluggable 2200/3000W AC

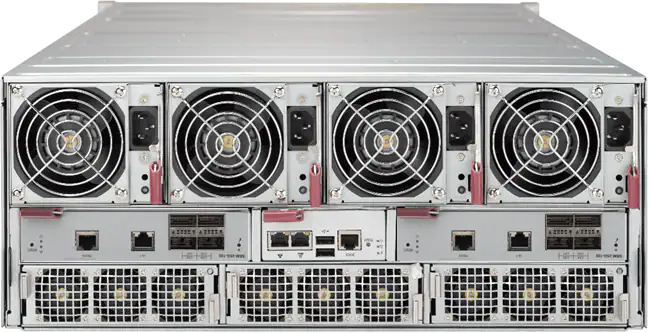

4U Enclosure

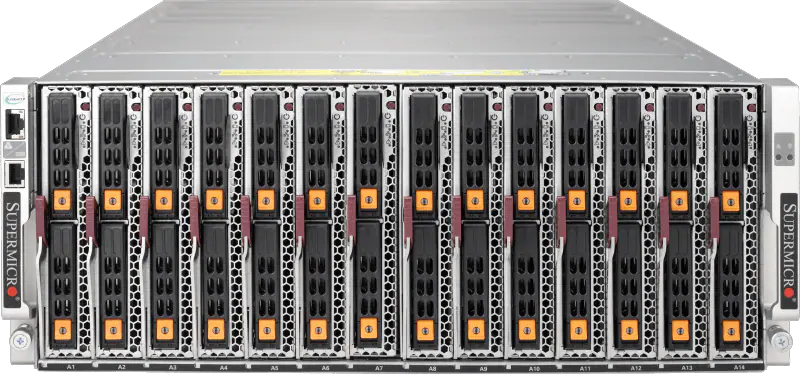

SBE-414J-422

4U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 14x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 4 cooling fans in PWS modules
    • Includes 3x PWS-DF007-3F system fans Module
  • Dimensions (HxWxD): 7" x 17.6" x 32"

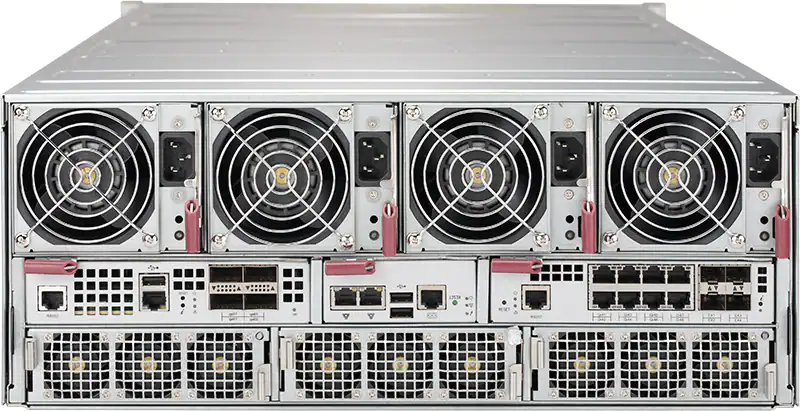

SBE-414E-222

4U Enclosure with 2 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • Processor Blade: Up to 14x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 2 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 2 cooling fans in PWS modules
    • Includes 3x PWS-DF007-3F system fans Module
  • Dimensions (HxWxD): 7" x 17.6" x 32"

SBE-414E-422

4U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • Processor Blade: Up to 14x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 4 cooling fans in PWS modules
    • Includes 3x PWS-DF007-3F system fans Module
  • Dimensions (HxWxD): 7" x 17.6" x 32"

back to top

4U Enclosure Blades

X12

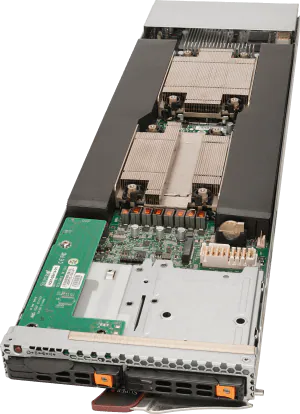

SBI-420P-4T2N

4U 1 Node Blade Server with 2 2.5" NVMe/SATA3 drive bays

  • CPU: 2
  • CPU Type: Dual socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 2
  • Networking: 2x 25Gb
  • Power Supply: 1x 0W Redundant
  • Graphics: Aspeed AST2600
  • Cooling: Passive CPU heatsink CPU1: SNK-P1045V CPU2: SNK-P1045VM

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X11

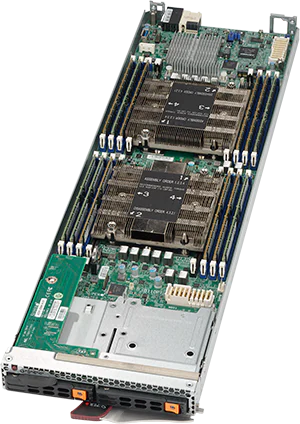

SBI-4429P-T2N

4U 1 Node Blade Server with 2 2.5" NVMe or 2 SATA3 drive bays

  • CPU: 2
  • CPU Type: Dual socket P (LGA 3647) 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • DIMM Slots: 12
  • Drive Size: 2.5"
  • Drive: 2
  • Networking: 2x 10Gb
  • Power Supply: 1x 0W Redundant
  • Graphics: Aspeed AST2500 BMC
  • Cooling: -

back to top

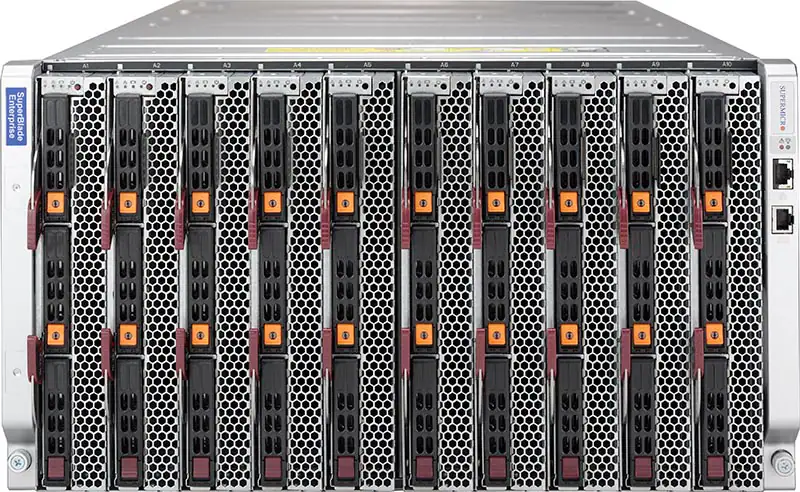

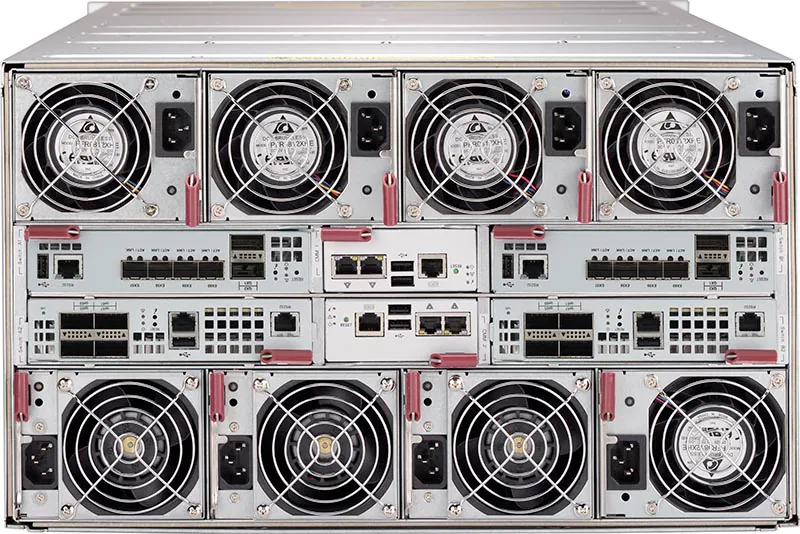

6U Enclosure

SBE-610J-422

6U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • Processor Blade:
    • Up to 10x 1-socket blade servers
    • Up to 10x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design: 4 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J-622

6U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • Processor Blade:
    • Up to 10x 1-socket blade servers
    • Up to 10x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design: 2 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J-822

6U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10x 1-socket blade servers
    • Up to 10x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design: Up to 8 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J2-422

6U Enclosure with 4 hot-swappable 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
    • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design: 4 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J2-622

6U Enclosure with 6 hot-swappable 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
    • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design: 2 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J2-822

6U Enclosure with 8 hot-swappable 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
    • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design: Up to 8 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J2-430

6U Enclosure with 4 hot-swappable 3000W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
    • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 4 hot-plug 3000W Titanium power supplies
  • Cooling Design: 4 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J2-630

6U Enclosure with 6 hot-swappable 3000W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
    • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 6 hot-plug 3000W Titanium power supplies
  • Cooling Design: 6 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-610J2-830

6U Enclosure with 8 hot-swappable 3000W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
    • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 2 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 8 hot-plug 3000W Titanium power supplies
  • Cooling Design: Up to 8 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

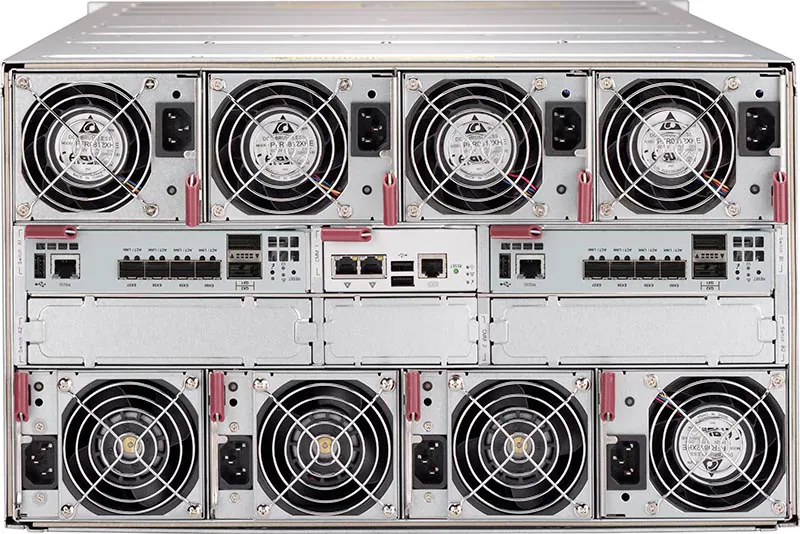

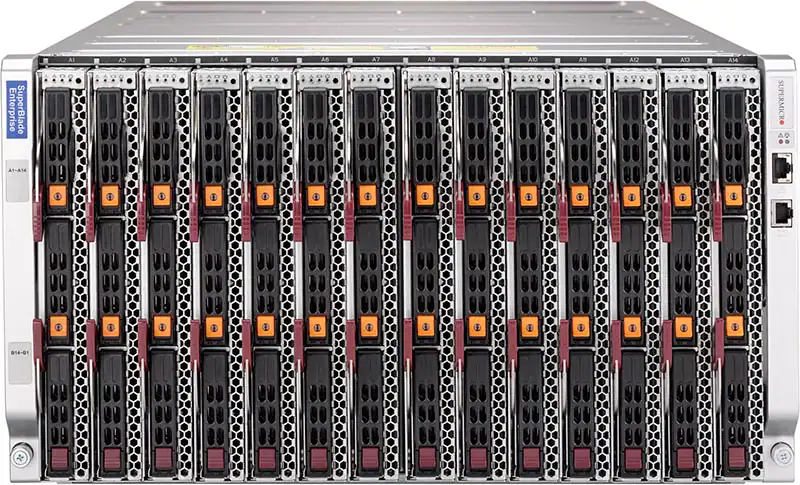

SBE-614E-422

6U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • Processor Blade:
    • Up to 14x 1-socket blade servers
    • Up to 14x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 4 hot-plug 3000W Titanium power supplies
  • Cooling Design: 4 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-614E-622

6U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • Processor Blade:
    • Up to 14x 1-socket blade servers
    • Up to 14x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 6 hot-plug 3000W Titanium power supplies
  • Cooling Design: 6 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

SBE-614E-822

6U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 14x 1-socket blade servers
    • Up to 14x 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMMs for remote system management with software
    • Management Module(s) must be purchased separately
  • Power Supply: 8 hot-plug 3000W Titanium power supplies
  • Cooling Design: Up to 8 cooling fans in PWS modules
  • Dimensions (HxWxD): 10.5" x 17.6" x 32"

back to top

6U Enclosure Blades

X14

SBI-612BA-1NE34

6U 1 Node Blade Server with 4 hot-swap E3.S NVMe SSDs, 2 M.2 NVMe SSD


  • CPU: 1
  • CPU Type: Single Socket BR (LGA-7529), Intel Xeon 6900 series processors
  • GPU: 1
  • DIMM Slots: 12
  • Drive: 4
  • Networking: AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X14

SBI-612BA-5NE34

6U 1 Node Blade Server with 4 hot-swap E3.S NVMe NVMe SSD, 2 M.2 NVMe SSD

  • CPU: 1
  • CPU Type: Single Socket BR (LGA-7529), Intel Xeon 6900 series processors
  • GPU: 1
  • DIMM Slots: 12
  • Drive: 4
  • Networking: AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X14

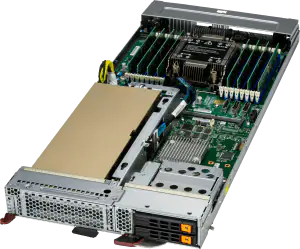

SBI-612B-1C2N

6U 1 Node Blade Server with 2 hot-swap U.2 NVMe/SAS, 2 M.2 NVMe SSD, 1 M.2 2280/22110 NVMe/SATA3 drive

  • CPU: 1
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: 1
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X14

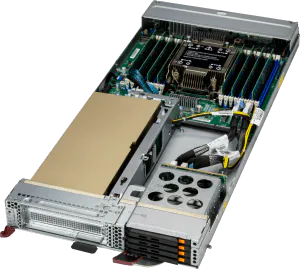

SBI-612B-1NE34

6U 1 Node Blade Server with 4 hot-swap E3.S SSD (PCIe Gen5), 1 M.2 2280


  • CPU: 1
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: 1
  • DIMM Slots: 16
  • Drive: 4
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X14

SBI-612B-5NE34

6U 1 Node Blade Server with 4 hot-swap E3.S 1T NVMe, 1 M.2 2280

  • CPU: 1
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: 1
  • DIMM Slots: 16
  • Drive: 4
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X14

SBI-622B-1NE34

6U 1 Node Blade Server with 6 NVMe SSDs with 4 Hot-swap E3.S SSD (PCIe Gen5) and 2 M.2

  • CPU: 2
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 4
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU & 1 DIMM.

X14

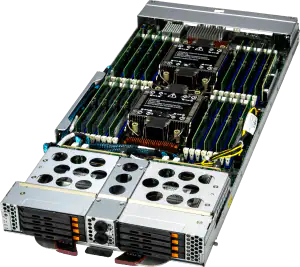

SBI-622B-1NE38

6U 1 Node Blade Server with 10 NVMe SSDs with 8 Hot-swap E3.S PCIe Gen5 and 2 M.2

  • CPU: 2
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 8
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU & 1 DIMM.

X14

SBI-622B-5NE34

6U 1 Node Blade Server with 6 NVMe SSDs with 4 Hot-swap E3.S PCIe Gen5 and 2 M.2

  • CPU: 2
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 4
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU & 1 DIMM.

X14

SBI-622B-5NE38

6U 1 Node Blade Server with 10 NVMe SSDs with 8 Hot-swap E3.S PCIe Gen5 and 2 M.2


  • CPU: 2
  • CPU Type: Single Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 8
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU & 1 DIMM.

X13

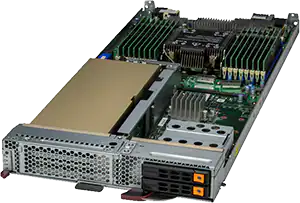

SBI-611E-1C2N

6U 1 Node Blade Server with 2 hot-swap U.2 NVMe/SAS/SATA and 1 M.2 2280/22110 NVMe/SATA3 drive


  • CPU: 1
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: 1
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

SBI-611E-1T2N

6U 1 Node Blade Server with 2 hot-swap 2.5" U.2 NVMe/SATA3, 3 M.2 2280/22110 NVMe, 2 E1.S drive support

  • CPU: 1
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: 1
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

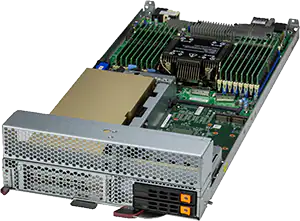

SBI-611E-5T2N

6U 1 Node Blade Server with 2 hot-swap 2.5" U.2 NVMe/SATA3, 3 M.2 2280/22110 NVMe, 2 E1.S drive support

  • CPU: 1
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: 2
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

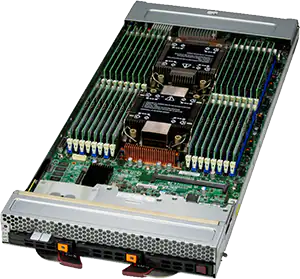

SBI-621E-1C3N

6U 1 Node Blade Server with 2 hot-swap U.2 NVMe/SAS/SATA, 1 Hot-swap SAS drive bay; HW RAID w/ Broadcom 3108

  • CPU: 2
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 3
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

SBI-621E-1T3N

6U 1 Node Blade Server with 3 hot-swap U.2 NVMe/SATA drive bays

  • CPU: 2
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 3
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

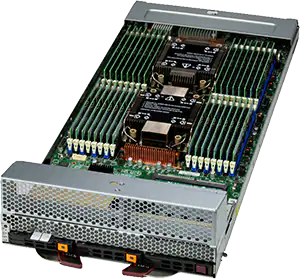

SBI-621E-5T3N

6U 1 Node Blade Server with 3 hot-swap U.2 NVMe/SATA drive bays

  • CPU: 2
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 3
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

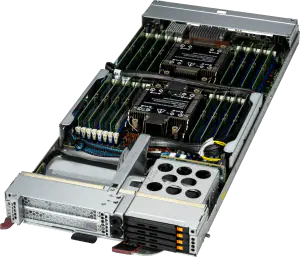

SBI-621E-1NE34

6U 1 Node Blade Server with 4 hot-swap E3.S drive bays

  • CPU: 2
  • CPU Type: Single Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 4
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

SBI-621E-1NE38

6U 1 Node Blade Server with 8 hot-swap E3.S drive bays



  • CPU: 2
  • CPU Type: Dual socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 8
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X12

SBI-610P-1C2N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe/SATA3 M.2 (PCIe 3.0 from PCH)


  • CPU: 1
  • CPU Type: Single socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X12

SBI-610P-1T2N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SATA3 drive bays; 1 NVMe/SATA3 M.2 (PCIe 3.0 from PCH), 2 NVMe M.2 (PCIe 4.0)

  • CPU: 1
  • CPU Type: Single socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X12

SBI-620P-1C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3


  • CPU: 2
  • CPU Type: Dual socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 3
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X12

SBI-620P-1T3N

6U 1 Node Blade Server with 3 hot-plug 2.5" NVMe/SATA3 drive bays

  • CPU: 2
  • CPU Type: Dual socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 32
  • Drive: 3
  • Networking: 2x 25Gb
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X11

SBI-6119P-C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3

  • CPU: 1
  • CPU Type: Single socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 12
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

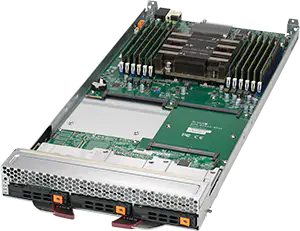

SBI-6119P-T3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 3 hot-plug SATA3 drive bays

  • CPU: 1
  • CPU Type: Single socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 12
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

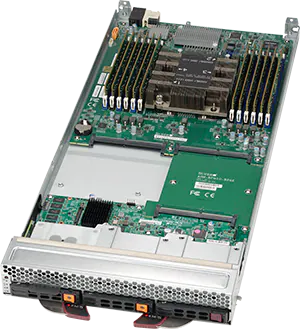

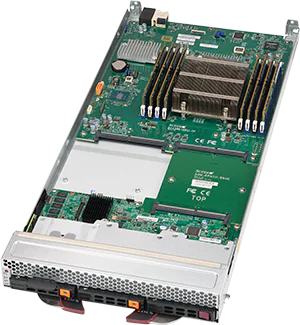

SBI-6119R-C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3

  • CPU: 1
  • CPU Type: Single socket LGA 2066, Intel Xeon Processor W Family
  • GPU: -
  • DIMM Slots: 8
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

SBI-6119R-T3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3

  • CPU: 1
  • CPU Type: Single socket LGA 2066, Intel Xeon Processor W Family
  • GPU: -
  • DIMM Slots: 8
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

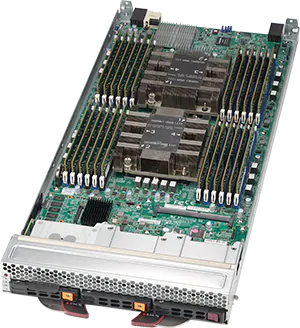

SBI-6129P-C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3

  • CPU: 2
  • CPU Type: Dual socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 24
  • Drive: 3
  • Networking: 2x 10Gb, 2x 25G
  • Power Supply: Redundant

X11

SBI-6129P-T3N

6U 1 Node Blade Server with 3 hot-plug 2.5" NVMe or 3 hot-plug SATA3 drive bays

  • CPU: 2
  • CPU Type: Dual socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 24
  • Drive: 3
  • Networking: 2x 10Gb, 2x 25G
  • Power Supply: Redundant

X11

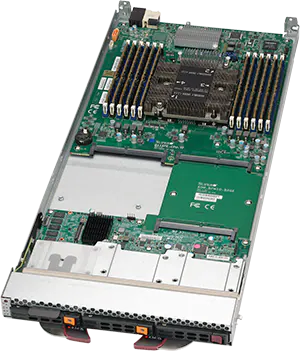

SBI-6419P-C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 SAS3/SATA3 2.5" drive bays or 3 SAS3/SATA3

  • CPU: 1
  • CPU Type: Single socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 12
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

SBI-6419P-T3N

6U 1 Node Blade Server with 3 hot-plug 2.5" NVMe or 3 SATA3 2.5" drive bays

  • CPU: 1
  • CPU Type: Single socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 12
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

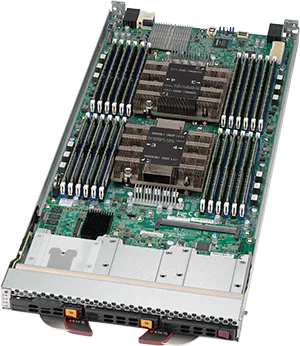

SBI-6429P-C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 SAS3/SATA3 drive bays or 3 SAS3/SATA3 drive bays

  • CPU: 2
  • CPU Type: Single socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 24
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

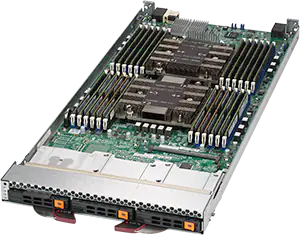

SBI-6429P-T3N

6U 1 Node Blade Server with 3 hot-plug 2.5" NVMe or 3 SATA3 2.5" drive bays

  • CPU: 2
  • CPU Type: Single socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 24
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

SBI-6119PW-C3N

6U 1 Node Blade Server with 2 hot-plug 2.5" NVMe + 1 hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3

  • CPU: 1
  • CPU Type: Single socket P (LGA 3647), Intel Xeon W-32xx processors
  • GPU: -
  • DIMM Slots: 12
  • Drive: 3
  • Networking: 2x 10Gb
  • Power Supply: Redundant

back to top

8U Enclosure

SBE-820H-622

8U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 20 half-height 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband HDR Switch – Support for 1x 200Gbps module
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 6 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820H-822

8U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 20 half-height 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband HDR Switch – Support for 1x 200Gbps module
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820H2-622

8U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 20 half-height 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband HDR Switch – Support for 1x 200Gbps module
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 6 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820H2-822

8U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 20 half-height 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband HDR Switch – Support for 1x 200Gbps module
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820H2-630

8U Enclosure with 6 hot-plug 3000W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 20 half-height 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband HDR Switch – Support for 1x 200Gbps module
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 3000W Titanium power supplies
  • Cooling Design:
    • 6 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820H2-830

8U Enclosure with 6 hot-plug 3000W Titanium (96% efficiency) power supplies

  • Processor Blade: Up to 20 half-height 2-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband HDR Switch – Support for 1x 200Gbps module
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 3000W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820C-422

8U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband EDR or OPA Switch – Support for 1x 100Gbps switch
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 4 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820C-622

8U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband EDR or OPA Switch – Support for 1x 100Gbps switch
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 2 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820C-822

8U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
  • LED: Power LED, Fault LED
  • Networking:
    • Infiniband EDR or OPA Switch – Support for 1x 100Gbps switch
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMM for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J-422

8U 25G Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 4 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J-622

8U 25G Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 2 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J-822

8U 25G Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J2-422

8U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 4 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J2-622

8U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 2 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J2-822

8U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J2-630

8U Enclosure with 6 hot-plug 3000W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 3000W Titanium power supplies
  • Cooling Design:
    • 2 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820J2-830

8U Enclosure with 8 hot-plug 3000W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 4x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • Up to 2 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 3000W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820L-422

8U Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 4 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 4 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820L-622

8U Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 6 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • 6 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

SBE-820L-822

8U Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • Processor Blade:
    • Up to 20 half-height 2-socket blade servers
    • Up to 10 full-height 4-socket blade servers
    • Mixed blade servers in a single enclosure
  • LED: Power LED, Fault LED
  • Networking:
    • Ethernet Switch – Up to 2x modules
    • Switch Modules must be purchased separately
  • Management Module:
    • 1 CMMs for remote system management with software
    • Management Module must be purchased separately
  • Power Supply: 8 hot-plug 2200W Titanium power supplies
  • Cooling Design:
    • Up to 8 cooling fans in PWS modules
    • 3 optional cooling fan modules (PWS-DF005-2F)
  • Dimensions (HxWxD): 14" x 17.6" x 32"

back to top

8U Enclosure Blades

X14

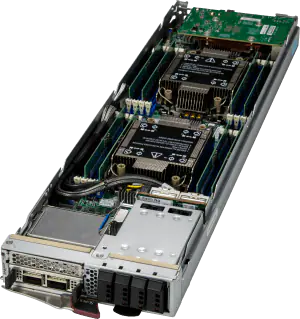

SBI-422B-1NE14

8U 1 Node Blade Server with 4 hot-swap E1.S drives; 1 NVMe M.2 2280

  • CPU: 2
  • CPU Type: Dual Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: -
  • DIMM Slots: 8
  • Drive: 4
  • Networking: 2x 25Gb, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X14

SBI-422B-5NE14

8U 1 Node Blade Server with 4 hot-swap E1.S drives; 1 M.2 2280

  • CPU: 2
  • CPU Type: Dual Socket E2 (LGA-4710), Intel Xeon 6 processors
  • GPU: -
  • DIMM Slots: 8
  • Drive: 4
  • Networking: 2x 25Gb, AIOM
  • Power Supply: -

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

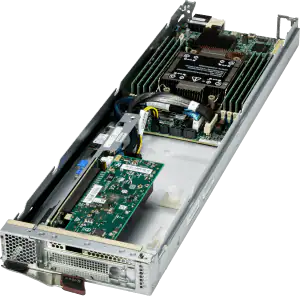

SBI-411E-1G

8U 1 Node Blade Server with 2 M.2 2280/22100

  • CPU: 1
  • CPU Type: Single socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: 1
  • DIMM Slots: 8
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

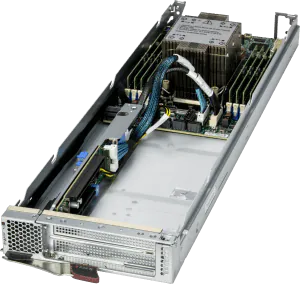

SBI-411E-5G

8U 1 Node Blade Server with 2 M.2 2280/22100

  • CPU: 1
  • CPU Type: Single socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: 1
  • DIMM Slots: 8
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

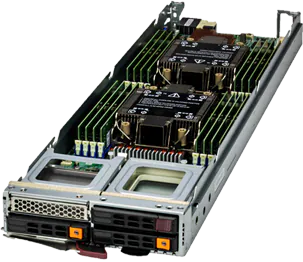

SBI-421E-1T3N

8U 1 Node Blade Server with 2 hot-swap U.2 NVMe/SATA3 drive bays; 1 hot-swap SATA3 drive bay; 1 M.2 2280

  • CPU: 2
  • CPU Type: Dual Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 16
  • Drive: 3
  • Networking: 2x 25Gb, 1x EDR, 1x HDR, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X13

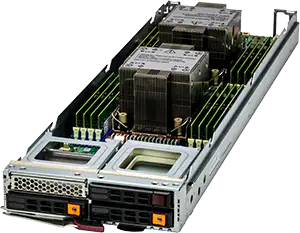

SBI-421E-5T3N

8U 1 Node Blade Server with 2 hot-swap U.2 NVMe/SATA3 drive bays; 1 hot-swap SATA3 drive bay; 1 M.2 2280

  • CPU: 2
  • CPU Type: Dual Socket E (LGA-4677), 5th/4th Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 16
  • Drive: 3
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X12

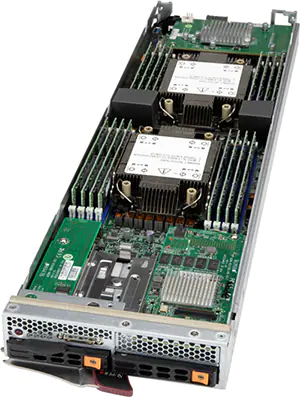

SBI-420P-1C2N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe M.2

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

X12

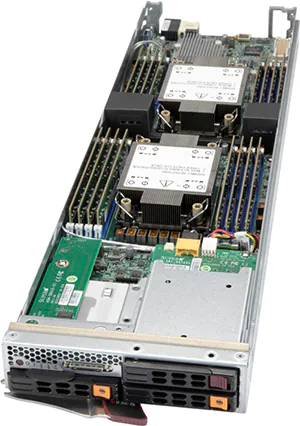

SBI-420P-1T3N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SATA3 drive bays; 1 hot-Plug 2.5" SATA3 drive bay, 1 NVMe M.2

  • CPU: 2
  • CPU Type: Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
  • GPU: -
  • DIMM Slots: 8
  • Drive: 3
  • Networking: 2x 25Gb, 1x EDR, 1x HDR, AIOM
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

H12

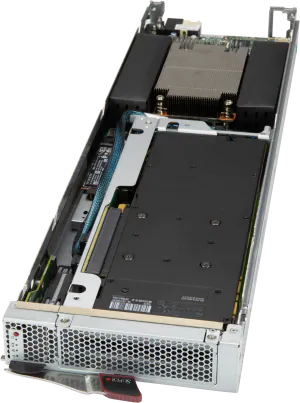

SBA-4119SG

8U 1 Node Blade Server with 1 NVMe/SATA M.2 and 2 PCI-E 4.0 x16

  • CPU: 1
  • CPU Type: Single AMD EPYC 7003/7002 Series Processor
  • GPU: 1
  • DIMM Slots: 8
  • Drive: 0
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

H12

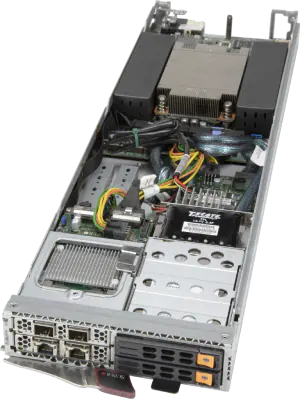

SBA-4114S-C2N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 2 PCI-E x4 M.2

  • CPU: 1
  • CPU Type: Single AMD EPYC 7003/7002 Series Processor
  • GPU: -
  • DIMM Slots: 8
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

H12

SBA-4114S-T2N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SATA3 drive bays; 2 PCI-E x4 M.2

  • CPU: 1
  • CPU Type: Single AMD EPYC 7003/7002 Series Processor
  • GPU: -
  • DIMM Slots: 8
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

H12

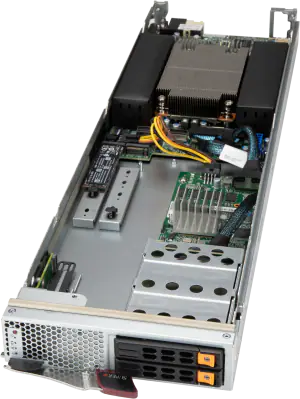

SBA-4119S-C2N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 2 PCI-E x4 M.2

  • CPU: 1
  • CPU Type: Single AMD EPYC 7003/7002 Series Processor
  • GPU: -
  • DIMM Slots: 8
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

H12

SBA-4119S-T2N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SATA3 drive bays; 2 PCI-E x4 M.2


  • CPU: 1
  • CPU Type: Single AMD EPYC 7003/7002 Series Processor
  • GPU: -
  • DIMM Slots: 8
  • Drive: 2
  • Networking: 2x 25Gb, 1x EDR, 1x HDR
  • Power Supply: Redundant

X11

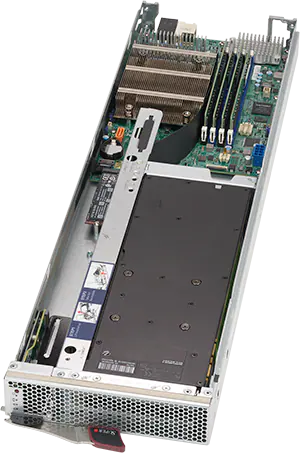

SBI-4119MG-X

8U 1 Node Blade Server with 1 NVMe/SATA M.2, 1 SATA DOM, 1 PCI-E 3.0 x16 (Double width GPU) or 2 PCI-E 3.0 x8 (Single width GPU)

  • CPU: 1
  • CPU Type: Single socket H4 (LGA 1151), Intel Xeon processor E-2100/E-2200 series
  • GPU: 2
  • DIMM Slots: 4
  • Drive: 0
  • Networking: 2x 10Gb
  • Power Supply: Redundant

X11

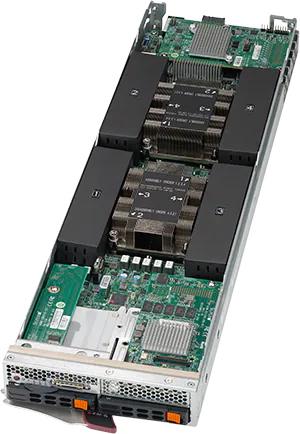

SBI-4129P-C2N

8U 1 Node Blade Server with 2 hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; up to 5 PCI-E x4 M.2

  • CPU: 2
  • CPU Type: Dual socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 16
  • Drive: 2
  • Networking: 2x 10Gb, 2x 25Gb, 1x EDR, 1x OPA
  • Power Supply: Redundant

X11

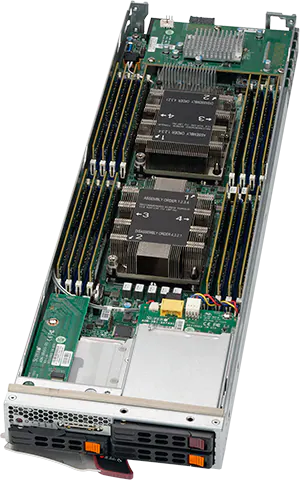

SBI-4129P-T3N

8U 1 Node Blade Server with 2 Hot-plug 2.5" NVMe + 1 SATA3 drive bays or 3 SATA3 drive bays; up to 5 PCI-E x4 M.2

  • CPU: 2
  • CPU Type: Dual socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 16
  • Drive: 3
  • Networking: 2x 10Gb, 2x 25Gb, 1x EDR, 1x OPA
  • Power Supply: Redundant

X11

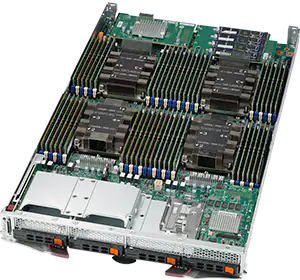

SBI-8149P-C4N

8U 1 Node Blade Server with 4 hot-plug 2.5" NVMe/SAS3/SATA3 drive bays and 2 M.2 NVMe/SATA

  • CPU: 4
  • CPU Type: Quad socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 48
  • Drive: 4
  • Networking: 2x 10Gb, 2x 25Gb, 1x EDR, 1x OPA
  • Power Supply: Redundant

X11

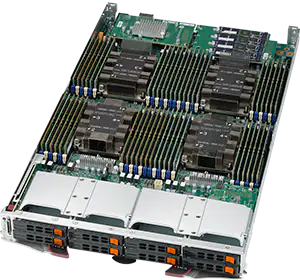

SBI-8149P-T8N

8U 1 Node Blade Server with 8 hot-plug 2.5" NVMe (7mm) / 4 SATA3/NVMe drive bays (15mm)

  • CPU: 4
  • CPU Type: Quad socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • GPU: -
  • DIMM Slots: 48
  • Drive: 8
  • Networking: 2x 10Gb, 2x 25Gb, 1x EDR, 1x OPA
  • Power Supply: Redundant

back to top
