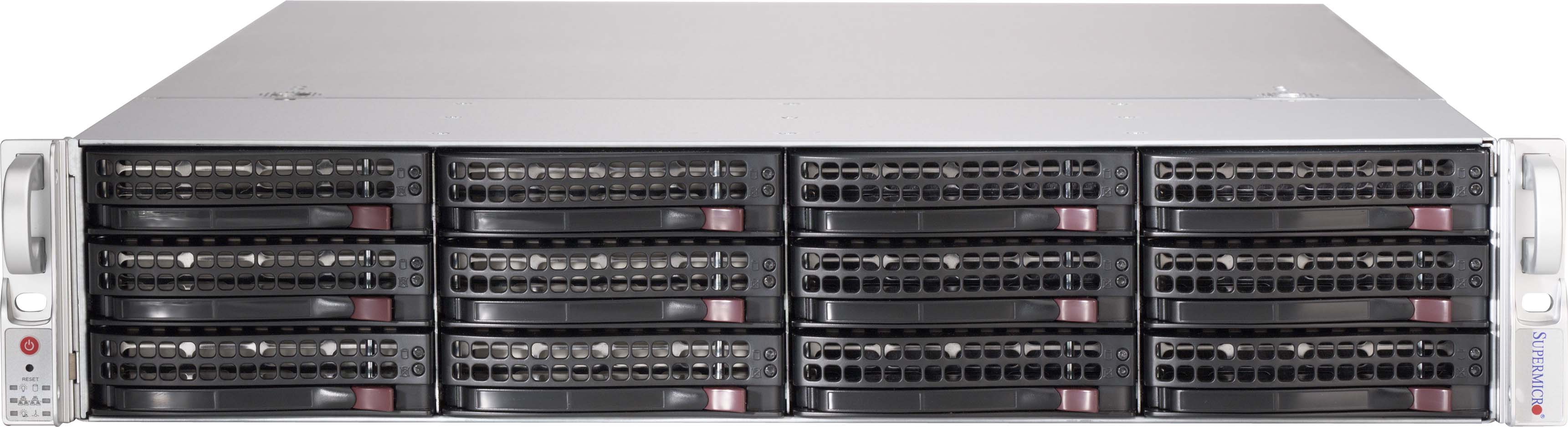

Supermicro SuperChassis 826BE1C-R741JBOD
Cloud Backup, Data Replication, or High Density Archive Storage Applications
Supermicro Products
Supermicro SuperChassis
Supermicro SuperChassis 826BE1C-R741JBOD Cloud Backup, Data Replication, or High Density Archive Storage Applications
#CSE-826BE1C-R741JBOD
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Specifications:
| Product SKUS | |
|---|---|
| CSE-826BE1C-R741JBOD | SuperChassis 826BE1C-R741JBOD |
| Form Factor | |
| 2U JBOD storage chassis | |
| Drive Bays | |
| 12 x 3.5" hot-swap HDD bays for JBOD solution | |
| Qualified SAS Controllers | |
| AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
|
| Backplane | |
| 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Front Panel | |
| Buttons | Power On/Off button System Reset Button Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs |
| System Cooling | |
| Fan | 3 x 80x38mm hot-swap cooling fan(s) |
| Power Supply | |
| 1U 740W Redundant Platinum Power Supply W/PMbus | |
Pricing Notes:
- Pricing and product availability subject to change without notice.
