Supermicro SuperServer 2029BT-HNTR with 8x Samsung PM863a 240GB 2.5" SATA Hard Drives and 4x Intel DC P4510 1TB 2.5"" NVMe PCIe SSD" Including Eight Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz) (P4X-SKL4110-SR3GH), Sixteen 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26), Four SIOM 2-port 10GBase-T Intel X550 with 1U brackets (AOC-MTG-I2TM-O), Four Supermicro Out of Band (OOB) Software License Key (SFT-OOB-LIC)
Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).
Key Features
Hyperscale / Hyperconverged
Compute Intensive Application
Data Center, Enterprise, HPC

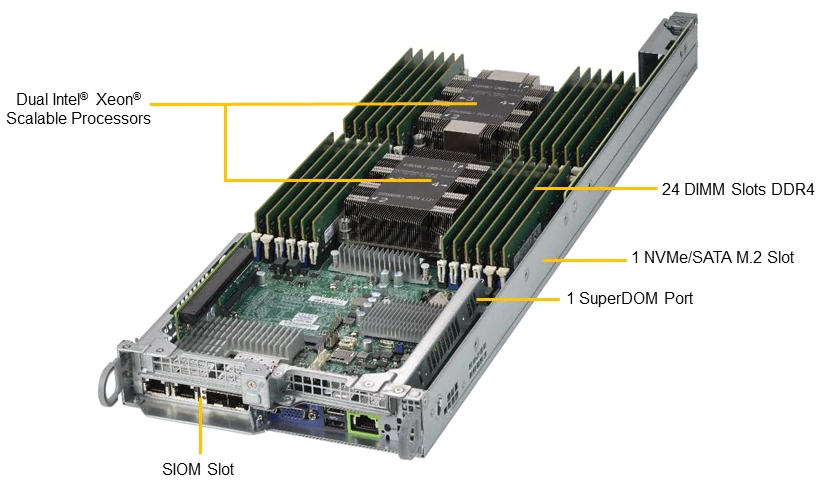

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
Up to 3TB ECC 3DS L/RDIMM, up to DDR4-2666MHz; 24 DIMM slots
2 PCI-E 3.0 x16 (LP) slots; 1 SIOM card support (flexible networking)
Note: must bundle with Network card
4 Hot-swap 2.5" NVMe/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays; 1 M.2 SATA3 or NVMe support
IPMI 2.0 + KVM with dedicated LAN
Video via Aspeed AST2500 BMC
4 Heavy duty 8cm PWM fans with air shroud
2200W Redundant Power Supplies Titanium Level (96%)
Supermicro BigTwin - The Industry's Highest Performing Twin Mult-Node System
The Supermicro BigTwin is the first and only 2U multi-node system supporting the highest performance processor, memory, storage, I/O and an incredible 30% better thermal capacity. The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs.
No-compromise 5th Generation Twin architecture delivers the highest performance and efficiency in a 2U 4-node platform.
The first and only multi-node system that supports the widest TDP range of CPUs (up to 205 watts), fully exploits all memory channels with 24 DIMMs per node and 24 AllFlash NVMe drives.
30% better thermal capacity in a compact 2U form factor enables configurations with the highest performance processor, memory, storage and I/O leveraging the Titanium level 96% efficient PowerStick power supplies (2200W/2600W)
100% more I/O capacity and added flexibility with more than 10 networking options including 1GbE, 10G, 25G, 100G, IB and industry leading SIOM modular interconnect.
Each node can support current and next generation dual Intel Xeon processors with up to 3TB of memory, 24 drives of All-Flash NVMe, Hybrid NVMe/SATA/SAS, SSD and HDD, plus 2 m.2 NVMe/SATA per node.
Features:
The 5th Generation Twin Architecture
The Supermicro BigTwin is a breakthrough modular multi-node server system that eliminates traditional modular vs rack computing design trade-offs. BigTwin is the 5th generation in the patented Supermicro Twin Family with a multitude of innovations and engineering breakthroughs. The no-compromise architecture delivers the efficiency of multi-node density optimized systems with the full features and power of traditional 1U and 2U rack mount systems.
Rear View of 2U BigTwin Server System Showing 4 Hot-swap DP Nodes and 2 Redundant Power Supplies
A No-Compromise Design
The key benefit of BigTwin is the no-compromise design. Historically multi-node systems traded off features and capacity for higher density. They were deployed for workloads that did not require the highest performance or the highest memory density on a single node. The new 2U BigTwin design is a breakthrough multi-node system that supports the highest performing CPUs, full 24 DIMMs of memory and up to 24 all-flash NVMe SSD drives.

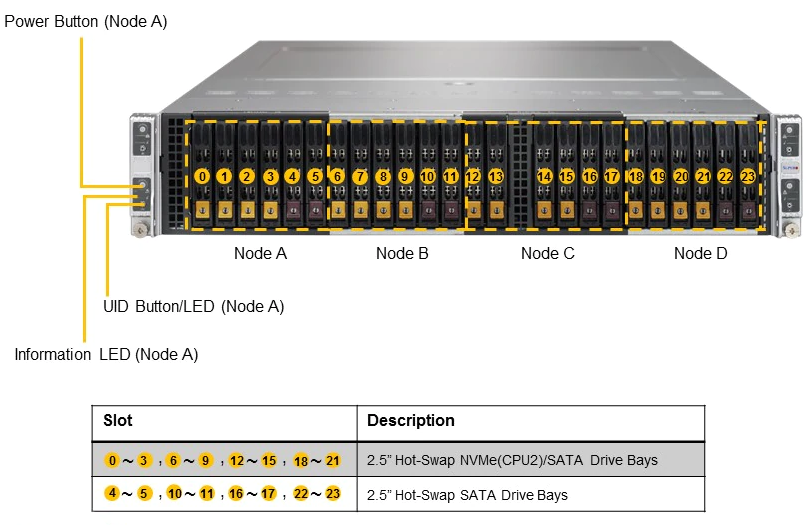

Front View of 2U BigTwin Server System (All-Flash NVMe Model)
All-Flash NVME and 24 DIMMs Per Node
Supermicro has been a leader in introducing NVMe support and advanced NVMe features in our product portfolio and BigTwin continues that tradition. BigTwin supports 24 hotswappable 2.5” U.2 NVMe drives, or mixed configurations with SAS3 and SATA3 drives (varies by different BigTwin models).
Leveraging Supermicro’s building block architecture BigTwin is a shared design with common components where most multi-node systems are one-off designs with limited leverage and integration to the rest of the product family creating sub-optimal service, sparing and training. The building block design also allows the system to be optimized to the specific requirements of the intended workload.
The 24 DIMMs can be used to deliver better performance and responsiveness for database and cloud infrastructure workloads, as well as providing the flexibility to customers looking to invest in lower capacity DIMMs for lowered dollar per GB solutions.
Maximum Memory Support Per Node on 3 Different 2U Twin Architecture Generations
Each BigTwin Server Supports up to
4 hot-swappable DP nodes in 2U
24 DIMMs per node
6 NVMe / SAS / SATA drives per node
1 SIOM card support per node
2 low-profile PCI-E x16 slots per node
Redundant 2200W Titanium Level (96%) Power Supplies
Applications
A hyper-converged solution of 3 nodes plus a hot spare can be hosted by just one BigTwin server. Each node can support dual Intel Xeon E5-2600 v4/v3 processors with up to 3TB of memory, 2 NVMe SSD drives for caching and 4 SAS drives for datastore.
The Supermicro BigTwin is a breakthrough modular multi-node server system, an ultradense and energy efficient powerhouse that provides industry leading performance perwatt, per-dollar, and per-squarefoot.
BigTwin’s 96% Efficiency 2200W Power Stick Design
SIOM: Supermicro Optimized Flexible Networking for 1GB/s to 100GB/s
Supermicro Super I/O Module (SIOM), common across both Rack and Modular platforms, delivers up to 50% I/O cost savings and freedom to select networking options from 1Gb/s to 100Gb/s. The SIOM enables a tighter system integration and leaves a total of two PCI-E 3.0 x16 LP slots for storage or networking add-on-cards on each node.
Dual-port FDR InfiniBand QSFP+ and Dual-port Gigabit Ethernet RJ45
AOC-MTG-i4S
Quad-port 10 Gigabit Ethernet SFP+
AOC-MGP-i4
Quad-port Gigabit Ethernet RJ45
Specifications:
SuperServer 2029BT-HNTR (Black) Specifications
Motherboard
Super X11DPT-B
Processor/Cache (per Node)
CPU
Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W*
Cores
Up to 28 Cores with Intel HT Technology
Note
* 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
24 DIMM slots
Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
Intel C621 chipset
Network
Must bundle with at least one SIOM network card
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC
Input / Output (per Node)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
Video
1 VGA port
DOM
1 SuperDOM (Disk on Module) port
Others
M.2 and SATA DOM for boot drive only
System BIOS
BIOS Type
AMI 32Mb SPI Flash ROM
Management
Software
Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor 5
Watch Dog
Power Configurations
ACPI / APM Power Management
PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSE-217BHQ+-R2K22BP2
Dimensions and Weight
Width
17.6" (447mm)
Height
3.47" (88mm)
Depth
28.75" (730mm)
Package
24.65" (H) x 9.76" (W) x 45.28" (D)
Weight
Gross Weight: 85 lbs (38.6kg)
Net Weight: 54.5 lbs (24.7 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
2 PCI-E 3.0 (x16) Low-profile slots
1 SIOM card support (must bundle with network card)
+1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control
FAN
2x 4-pin fan headers (up to 2 fans), Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
Temperature
CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Operating Environment
Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Videos:
Supermicro SuperMinute: X11 BigTwin
Supermicro introduces its 5th generation Twin architecture the X11 BigTwin. With its no-compromise design, it is the industry’s highest performing 2U multi-node platform.
Supermicro BigTwin Product Loop
Introducing BigTwin, the IT industry’s highest performing twin multi-node system with 4 nodes in 2U supporting the highest performance 205-watt DP Intel Xeon E5-2600 v4/v3 product families, a full 24 DIMMs of memory per node, 24 All-Flash NVMe or hybrid drives, three PCI-E 3.0 x16 I/O options per node, and an industry leading 30% better thermal capacity for maximum performance, efficiency and free air cooling (1.05 PUE). With Supermicro’s 96%+ high-efficiency, fully redundant 2200W, 2600W PowerStick design and advanced thermal architecture.
The BigTwin is optimized for today and future proofed for the next generation of technology breakthroughs advancements, including new generation Intel Skylake processors.
Supermicro SuperServer 2029BT-HNTR with 8x Samsung PM863a 240GB 2.5" SATA Hard Drives and 4x Intel DC P4510 1TB 2.5"" NVMe PCIe SSD" Including Eight Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz) (P4X-SKL4110-SR3GH), Sixteen 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26), Four SIOM 2-port 10GBase-T Intel X550 with 1U brackets (AOC-MTG-I2TM-O), Four Supermicro Out of Band (OOB) Software License Key (SFT-OOB-LIC)
UL/cUL/CB/BSMI/CE/CCC
