Super Micro

2U GPU Servers

Unrivaled GPU Systems

High Perfomance and Balanced Solutions for Accelerated Computing Applications


Liquid-Cooled Universal GPU Systems NVIDIA MGX Systems AMD APU Systems 2U 2-Node Multi-GPU 2U GPU Lines

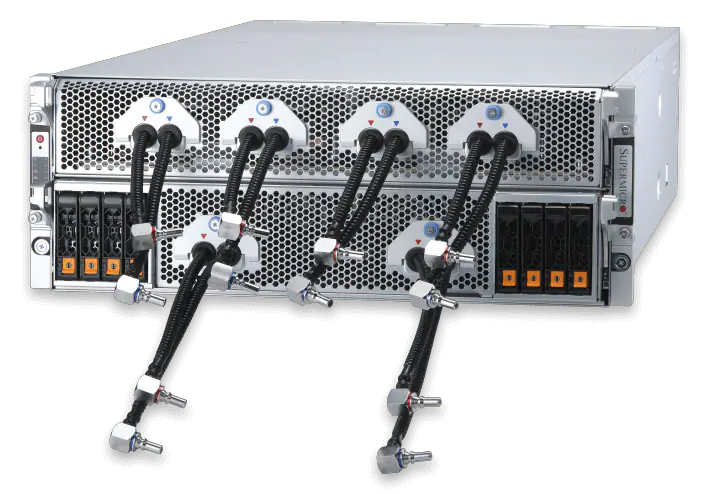

Liquid-Cooled Universal GPU Systems

Direct-to-chip liquid-cooled systems for high-density AI infrastructure at scale.

  • GPU: NVIDIA HGX H100 4-GPU/8-GPUs
  • CPU: Intel Xeon or AMD EPYC
  • Memory: Up to 32 DIMMs, 8TB
  • Drives: Up to 24 Hot-swap U.2 or 2.5" NVMe/SATA drives

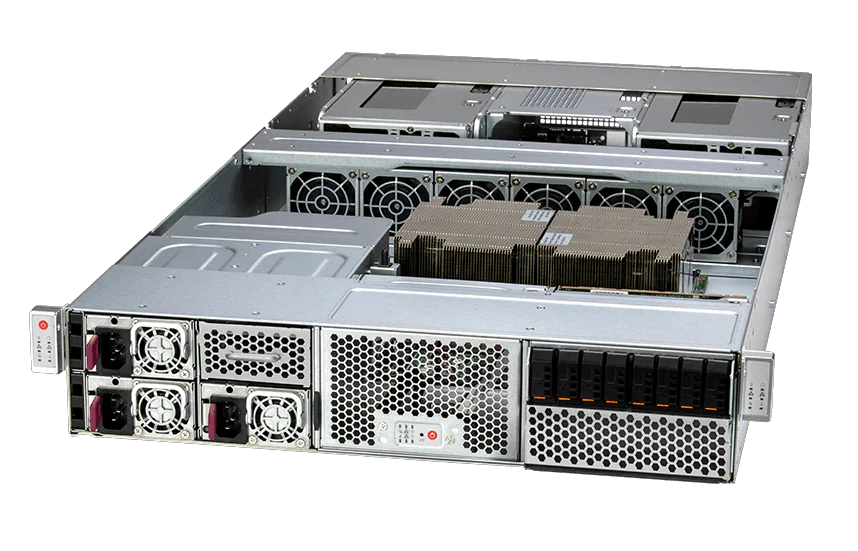

NVIDIA MGX Systems

Modular Building Block Platform Supporting Today's and Future GPUs, CPUs, and DPUs


  • GPU: Up to 4 NVIDIA PCIe GPUs including H100, H100 NVL, and L40S
  • CPU: NVIDIA GH200 Grace Hopper Superchip, Grace CPU Superchip, or Intel Xeon
  • Memory: Up to 960GB ingegrated LPDDR5X memory (Grace Hopper or Grace CPU Superchip) or 16 DIMMs, 4TB DRAM (Intel)
  • Drives: Up to 8 E1.S + 4 M.2 drives

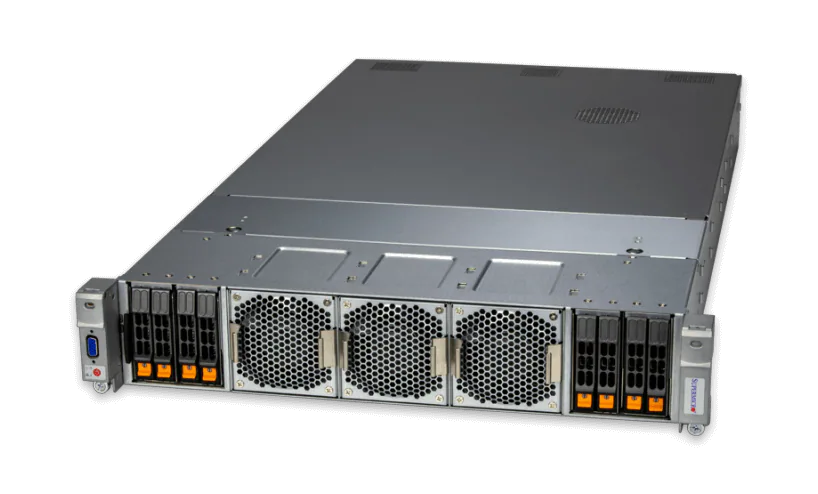

AMD APU Systems

Multi-processor system combining CPU and GPU, Designed for the Convergence of AI and HPC

  • GPU: 4 AMD Instinct MI300A Accelerated Processing Unit (APU)
  • CPU: AMD Instinct MI300A Accelerated Processing Unit (APU)
  • Memory: Up to 512GB integrated HBM3 memory (4x 128GB)
  • Drives: Up to 8 2.5" NVMe or Optional 24 2.5" SATA/SAS via storage add-on card + 2 M.2 drives

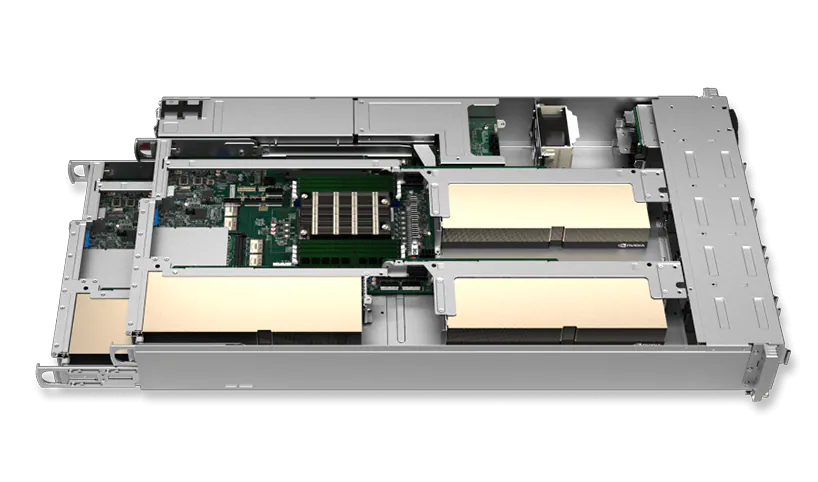

2U 2-Node Multi-GPU with PCIe 4.0

Dense and Resource-saving Multi-GPU Architecture for Cloud-Scale Data Center Applications

  • GPU: Up to 3 double-width PCIe GPUs per node
  • CPU: Intel Xeon or AMD EPYC
  • Memory: Up to 8 DIMMs, 2TB per node
  • Drives: Up to 2 front hot-swap 2.5" U.2 per node

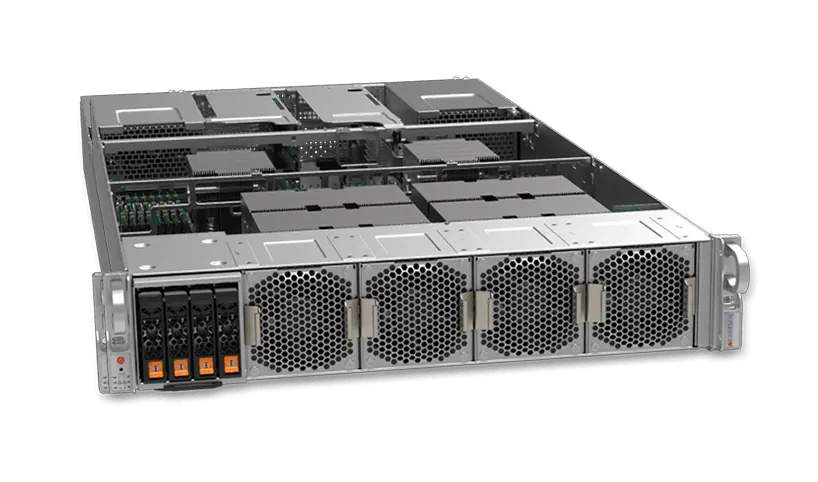

2U GPU Lines


High Performance and Balanced Solutions for Accelerated Computing Applications

  • GPU: NVIDIA HGX A100 4-GPU with NVLink, or up to 6 double-width PCIe GPUs
  • CPU: Intel Xeon or AMD EPYC
  • Memory: Up to 32 DIMMs, 8TB
  • Drives: Up to 10 Hot-swap 2.5" SATA/SAS/NVMe

Liquid-Cooled Universal GPU Systems

X13

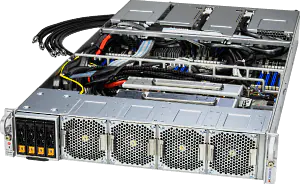

SYS-221GE-TNHT-LCC

DP Intel 2U Liquid-Cooled System with NVIDIA HGX H100 4-GPU

  • GPU: 4
  • GPU-GPU: NVIDIA NVLink
  • CPU: 2
  • CPU Type: 4th/5th Gen Intel Xeon Scalable processors
  • DIMM Slots: 32
  • Drive Size: -
  • Drive: 4
  • Networking: 2x 10G
  • Form Factor: 2U

back to top

NVIDIA MGX Systems

G1

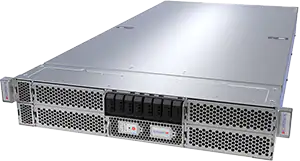

ARS-221GL-NHIR

DP NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

  • GPU: 2
  • GPU-GPU: NVIDIA NVLink
  • CPU: 1
  • CPU Type: NVIDIA Dual 72-core CPUs on a Grace CPU Superchip
  • DIMM Slots: 0
  • Drive Size: E1.S
  • Drive: 3
  • Networking: -
  • Form Factor: 2U

G1

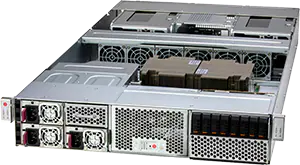

ARS-221GL-NR

DP NVIDIA Grace Superchip system with up to 2 L40S or 2 single non-bridged NVIDIA H100 NVL

  • GPU: 2
  • GPU-GPU: PCIe
  • CPU: 2
  • CPU Type: NVIDIA Dual 72-core CPUs on a Grace CPU Superchip
  • DIMM Slots: 0
  • Drive Size: E1.S
  • Drive: 4
  • Networking: 1x 1G
  • Form Factor: 2U

X13

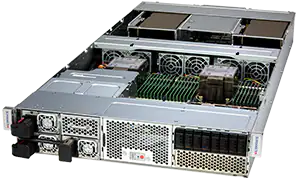

SYS-221GE-NR

DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, or L40S

  • GPU: 4
  • GPU-GPU: NVIDIA NVLink Bridge (optional)
  • CPU: 2
  • CPU Type: 4th/5th Gen Intel Xeon Scalable processors
  • DIMM Slots: 32
  • Drive Size: E1.S
  • Drive: 8
  • Networking: 1x 1G
  • Form Factor: 2U

back to top

AMD APU Systems

H13

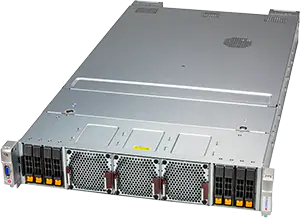

AS-2145GH-TNMR-LCC

2U AMD liquid cooled quad APU system with 4 AMD Instinct MI300A accelerators

  • GPU: 4
  • GPU-GPU: -
  • CPU: 4
  • CPU Type: AMD Instinct MI300A Accelerated Processing Units (APUs)
  • DIMM Slots: 0
  • Drive Size: 2.5"
  • Drive: 8
  • Networking: AIOM
  • Form Factor: 2U

back to top

2U 2-Node Multi-GPU with PCIe 4.0

H12

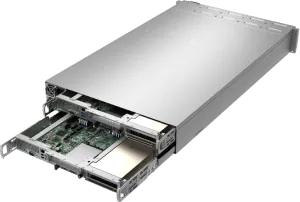

AS-2114GT-DNR

2U 2-Node System with UP AMD and up to 3 GPUs per node

  • GPU: 2
  • GPU-GPU: -
  • CPU: 1
  • CPU Type: AMD EPYC 7002/7003 series processors
  • DIMM Slots: 8
  • Drive Size: 2.5"
  • Drive: 2
  • Networking: AIOM InfiniBand, AIOM
  • Form Factor: 2U

X12

SYS-210GP-DNR

2U 2-Node System with UP Intel and up to 3 GPUs per node

  • GPU: 3
  • GPU-GPU: PCIe
  • CPU: 1
  • CPU Type: 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 8
  • Drive Size: 2.5"
  • Drive: 2
  • Networking: AIOM
  • Form Factor: 2U

H12

AS-2114GT-DPNR

2U 2-Node System with UP AMD and up to 3 GPUs per node

  • GPU: 2
  • GPU-GPU: -
  • CPU: 1
  • CPU Type: AMD EPYC 7002/7003 series processors
  • DIMM Slots: 8
  • Drive Size: 2.5"
  • Drive: 2
  • Networking: AIOM InfiniBand, AIOM
  • Form Factor: 2U

back to top

2U GPU Lines

H12

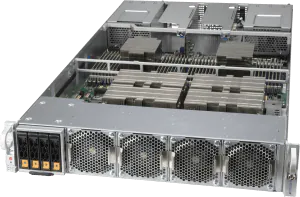

AS-2124GQ-NART

DP AMD System with NVIDIA HGX A100 4-GPU

  • GPU: -
  • GPU-GPU: NVIDIA NVLink
  • CPU: 2
  • CPU Type: AMD EPYC 7002/7003 series processors
  • DIMM Slots: 32
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Form Factor: 2U

H12

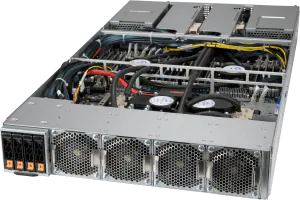

AS-2124GQ-NART-LCC

DP AMD System with NVIDIA HGX A100 4-GPU and Liquid Cooling

  • GPU: 0
  • GPU-GPU: NVIDIA NVLink
  • CPU: 2
  • CPU Type: AMD EPYC 7002/7003 series processors
  • DIMM Slots: 32
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Form Factor: 2U

X11

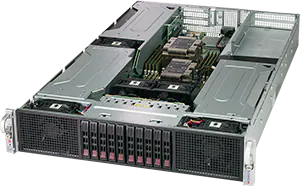

SYS-2029GP-TR

DP Intel System with 6 GPUs

  • GPU: 6
  • GPU-GPU: -
  • CPU: 2
  • CPU Type: 2nd Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 10
  • Networking: SIOM, SIOM InfiniBand, AIOM
  • Form Factor: 2U

X12

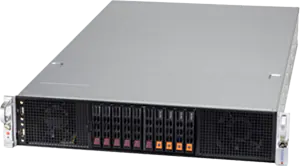

SYS-220GP-TNR

DP Intel System with 6 PCIe GPUs

  • GPU: 6
  • GPU-GPU: PCIe
  • CPU: 2
  • CPU Type: 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 16
  • Drive Size: 2.5"
  • Drive: 10
  • Networking: AIOM
  • Form Factor: 2U

H12

AS-2124GQ-NART+

DP AMD System with NVIDIA HGX A100 4-GPU and 3000W Power Supplies

  • GPU: 0
  • GPU-GPU: -
  • CPU: 2
  • CPU Type: AMD EPYC 7002/7003 series processors
  • DIMM Slots: 32
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Form Factor: 2U

X12

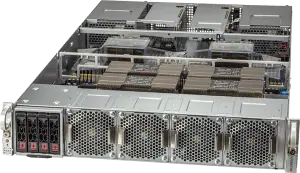

SYS-220GQ-TNAR+

DP Intel System with NVIDIA HGX A100 4-GPU and 3000W Power Supplies

  • GPU: 4
  • GPU-GPU: NVIDIA NVLink
  • CPU: 2
  • CPU Type: 3rd Gen Intel Xeon Scalable processors
  • DIMM Slots: 32
  • Drive Size: 2.5"
  • Drive: 4
  • Networking: 2x 10G
  • Form Factor: 2U
