Top-Loading Storage Servers
Density Maximized Storage Systems Optimized for Software-Defined Data Centers
Overview
Highlights
- Easy-to-deploy 45-bay, 60-bay and 90-bay top loading storage systems

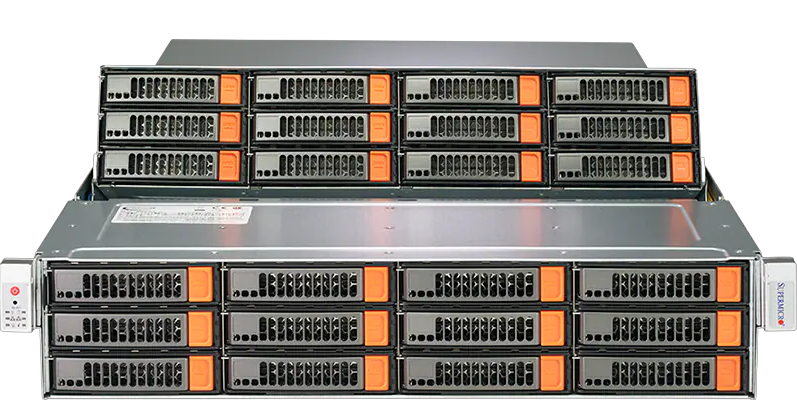

- Double the storage density in a 2U space with Simply Double systems
- Cost-effective 1U cold storage systems supporting 12x 3.5” drives + 4x NVMe drives
Innovations
- Maximum Hot-Swappable Storage Bays
- Tiered Storage and I/O Expandability
Optimized for:
- Hosting & Content Delivery
- Data Replication
- Hyperscale / Hyperconverged
- Data Center
- Software-defined Storage
X13/H13 Simply Double High Density

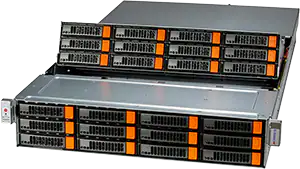

X13
SSG-521E-E1CR24H
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 5.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: 4th/5th Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 3.5"
- Drive: 24
- Networking: AIOM
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)
X13
SSG-521E-E1CR24L
2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: 4th/5th Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 3.5"
- Drive: 24
- Networking: AIOM
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)
H13
ASG-2015S-E1CR24H
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 5.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: AMD EPYC 9004/9005 Series Processors
- DIMM Slots: 12
- Drive Size: 3.5"
- Drive: 24
- Networking: AIOM
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)
H13
ASG-2015S-E1CR24L
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays and PCIe 5.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: AMD EPYC 9004/9005 Series Processors
- DIMM Slots: 12
- Drive Size: 3.5"
- Drive: 24
- Networking: AIOM
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)
X12 4U Top-Loading Single/Multi Node

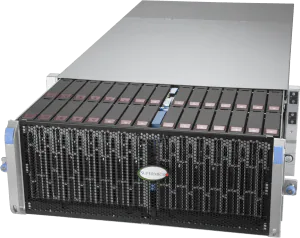

X12
SSG-640SP-E1CR60
4U top-loading storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 2.5"/3.5"
- Drive: 60
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)

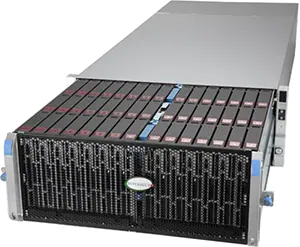

X12
SSG-640SP-E1CR90
4U top-loading storage server with 90 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 2.5"/3.5"
- Drive: 90
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)

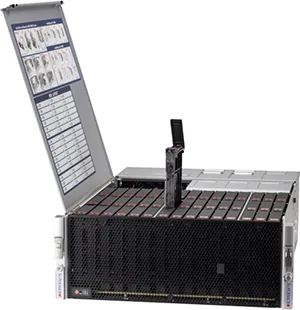

X12
SSG-540P-E1CTR45H
4U UP top-loading storage server with 45 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 4.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 8
- Drive Size: 3.5"
- Drive: 45
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)
X12
SSG-540P-E1CTR45L
4U UP top-loading storage server with 45 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 8
- Drive Size: 3.5"
- Drive: 45
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)

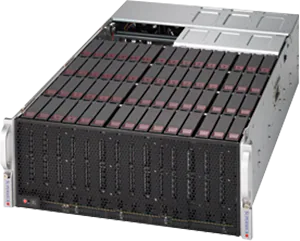

X12
SSG-540P-E1CTR60H
4U top-loading storage server with 60 hot-swap SAS/SATA bays (SAS hardware RAID) and PCIe 4.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 8
- Drive Size: 3.5"
- Drive: 60
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)
X12
SSG-540P-E1CTR60L
4U top-loading storage server with 60 hot-swap SAS/SATA bays and PCIe 4.0
- CPU: 1
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 8
- Drive Size: 3.5"
- Drive: 60
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
NVMe (Optional)

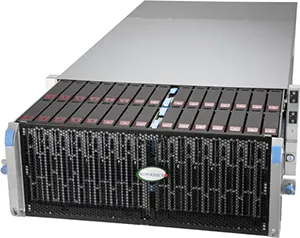

X12
SSG-640SP-DE1CR60
4U 2-node top-loading storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 2.5"/3.5"
- Drive: 30
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)

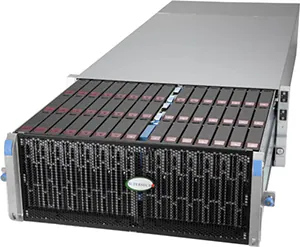

X12
SSG-640SP-DE1CR90
4U 2-node top-loading storage server with 90 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 2.5"/3.5"
- Drive: 45
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
X12
SSG-640SP-DE2CR60
4U 2-node high availability top-loading storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 2.5"/3.5"
- Drive: 60
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
X12
SSG-640SP-DE2CR90
4U 2-node high availability top-loading storage server with 90 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 2.5"/3.5"
- Drive: 90
- Networking: 2x 10G
- Interface: SAS (Native)
SATA (Native)
X12 Simply Double High Density
X12
SSG-620P-E1CR24H
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 3.5"
- Drive: 24
- Networking: AIOM
- Interface: NVMe (Native)
SAS (Optional)
SATA (Optional)
X12
SSG-620P-E1CR24L
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays and PCIe 4.0
- CPU: 2
- Max GPU: NA
- Supported GPUs: NA
- CPU Type: Dual socket 3rd Gen Intel Xeon Scalable processors
- DIMM Slots: 16
- Drive Size: 3.5"
- Drive: 24
- Networking: AIOM
- Interface: NVMe (Native)
SAS (Optional)
SATA (Optional)
