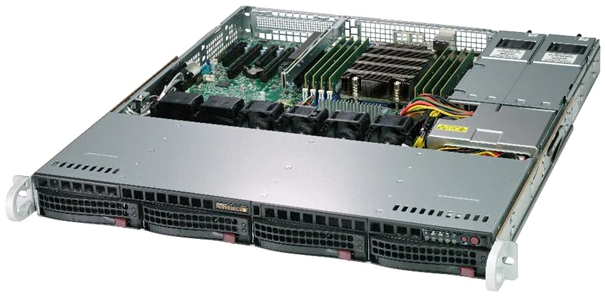

Supermicro A+ Server 1013S-MTR
4 Hot-Swap 3.5" SATA3 Drive Bays,  1 M.2 NVMe SSD slot Supported

Overview:

Key Features

• Web Hosting, VM
• Cloud Computing
• Connectivity/Storage Computer Nodes


Hardware Features:

• Single AMD EPYC™ 7000-Series Processor
• Up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
• Expansion slots:
  • 1 PCI-E 3.0 x16 (FH/HL) slot
  • M.2 Interface: PCI-E 3.0 x4 (NVMe based)
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: Onboard M-key
  • Number of M.2: Single
• Integrated IPMI 2.0 + KVM with dedicated LAN
• 2x 1GbE LAN ports via Intel I210
• 4 hot-swap 3.5" SATA3 drive bays or 4 SAS3 ports (SAS Add-on Card is optional), 1 M.2 NVMe SSD Supported
• 400W Redundant Platinum Level high-efficiency Power Supplies (Full redundancy based on configuration and application load)

Supermicro New Generation A+ Solutions - AMD EPYC Processor-based Solutions

A+ Servers are Your Best Choice!

Supermicro's latest range of AMD EPYC 7000 Series SoC-based server and storage solutions offer new levels of optimized performance per watt per dollar, and deliver outstanding core density, superior memory bandwidth, and unparalleled I/O capacity.

Supporting up to 32 "Zen" cores and 64 threads per socket, these Supermicro solutions are tightly coupled with high-throughput, low-latency, hot-swappable NVMe storage, up to 4TB of DDR4 memory over 8 memory channels per socket, and up to 128 PCI-E 3.0 lanes on a dual- or single-socket system.

Supermicro's new generation A+ solutions supporting AMD EPYC enable a new range of powerful and energy-efficient server options to radically lower data center TCO through an optimized balance of compute, memory, I/O, and storage resources.

• Most Comprehensive Line of AMD-based Rackmount/Tower Servers
• Redundant Components (virtually eliminating system downtime)
• Best Price/Performance Ratio
• Superior Product Design (all under one roof)
• Consistently First-to-Market
• Maximized Performance
• Reduced Total Cost of Ownership (TCO)
• Top-Notch Finishing Materials
• 3-Year Limited Warranty
• 24-Hour Server Support
• Uncompromising Quality Control

Specifications:

A+ Server 1013S-MTR (Black) Specifications
Motherboard	H11SSL-i
Processor/Chipset
CPU	Single AMD EPYC 7000-series Processor (up to 200W) Socket SP3
Cores	Up to 32 Cores
Chipset	System on Chip (SoC)
System Memory
Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Connectivity	Intel I210 Controller
VGA	ASPEED AST2500 BMC
Expansion Slots
PCI Express	1 PCI-E 3.0 x16 (FH/HL) slot
M.2	Interface: PCI-E 3.0 x4 (NVMe based) Form Factor: 2280, 22110 Key: Onbard M-key Number of M.2: Single
Input / Output
SATA	4 SATA3 (6 Gbps) ports
LAN	2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear, 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Chassis
Form Factor	1U Rackmount
Model	CSE-813MFTQC-R407CB
Dimensions and Weight
Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	19.85" (503mm)
Weight	Net Weight: 20 lbs (9.1 kg) Gross Weight: 33 lbs (15.0 kg)
Front Panel
Buttons	Power On/Off button System Reset butto
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED
Drive Bays / Storage
Hot-swap	4 hot-swap 3.5" SATA3 drive bays
Peripheral Drives
Optional	Optional 2.5" drive adapter Optional slim DVD drive
Backplane
HDD Backplane	Supports 4 SATA3 3.5" HDD
System Cooling
Fans	4x 40x28mm 4-pin PWM Cooling Fans
Air Shroud	1 Air Shroud
AC/DC240V Input Redundant Power Supplies
Power	400W 1U Redundant Power Supplies with PMbus
Total Output Power	400W
Dimension (W x H x L)	54.5 x 40 x 220 mm
Input	100 - 240Vac / 6.0 - 3.0A / 50-60Hz 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V	Max: 33A / Min: 0.5A
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	UL/cUL/CB/BSMI/CE/CCC Platinum Level Certified
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
FAN	Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List:

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard	MBD-H11SSL-i	1	Super H11SSL-i Motherboard
Chassis	CSE-813MFTQC-R407CB	1	1U Chassis
HD Backplane	BPN-SAS3-815TQ	1	1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
Cable	CBL-0488L	1	SATA,INT,ROUND,ST-RA,55CM,30AWG
Cable	CBL-SAST-0639	2	SATA,INT,ROUND,ST-RA,31CM,30AWG
Cable	CBL-SAST-0641	1	SATA,INT,ROUND,ST-RA,45CM,30AWG
Part(s)	MCP-120-00031-0N	1	Riser card bracket for SC812,813,813M,815,111,113,113M
Air Shroud	MCP-310-81305-0B	1	Mylar air shroud for 1U X11SPW-TF,RoHS
Riser Card	RSC-RR1U-E16	1	RSC-RR1U-E16 with PIC-E x16 output
Heat Sink	SNK-P0062P	1	1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Optional Parts List
	Part Number	Qty	Description
Storage Control Card and Cable(s)	AOC-S3008L-L8e 1x CBL-SAST-0811	-	Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
	AOC-S3008L-L8i 1x CBL-SAST-0811	-	Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
	AOC-S3108L-H8iR 1x CBL-SAST-0811	-	Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
CacheVault(s)	BTR-TFM8G-LSICVM02 MCP-240-00127-0N MCP-220-00043-0N	-	CacheVault for Broadcom 3108 Supercap mounting bracket for 2.5" HDD location STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray	MCP-220-00043-0N	-	STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
	MCP-220-00118-0B	-	STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray
DVD-ROM / DVD-RW	DVM-PNSC-DVD-SBT3 MCP-220-81502-0N CBL-0099	-	Black Panasonic Slim DVD-ROM SATA Drive Slim SATA DVD mounting kit 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
	DVM-TEAC-DVD-SBT3 MCP-220-81502-0N CBL-0099	-	Black TEAC Slim DVD-ROM SATA Drive Slim SATA DVD mounting kit 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
	DVM-PLDS-DVDRW-SBT4 MCP-220-81502-0N CBL-0099	-	Philips Slim Black DVD-RW SATA Drive, HF Slim SATA DVD mounting kit 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
Drive Tray(s)	MCP-220-00129-0B	-	Black 2x USB 3.0 port tray in slim FDD bay
Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot)	MCP-220-81504-0N CBL-0210L (PWR)	-	12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot)	MCP-220-81506-0N CBL-0099 (PWR)	-	12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) + Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot)	MCP-220-81504-0N MCP-220-81506-0N CBL-SAST-0654 (data) x2 CBL-0210L (PWR) CBL-0099 (PWR) CBL-0161L (Y-cable) CBL-PWEX-0702 (PWD)	-	12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED + Slim DVD Size Drive Kit w/Status LED
TPM	AOM-TPM-9655V	-	Vertical TPM with Infineon 9655 TCG 1.2
	AOM-TPM-9655V-S	-	Based on AOM-TPM-9655V with Server TXT package
	AOM-TPM-9665V	-	AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
	AOM-TPM-9665V-S	-	Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
FAN	FAN-0154L4	2	40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
	OSNBD3/2/1	-	3/2/1-year onsite NBD service
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)

Views:

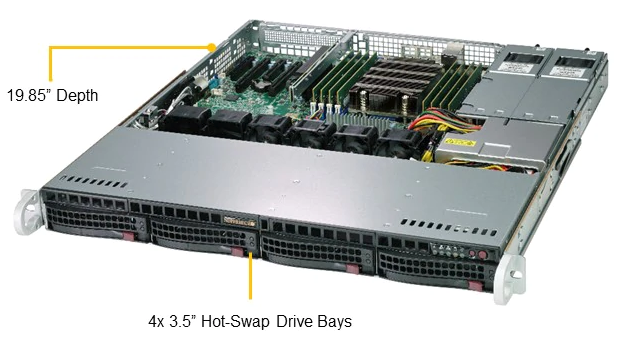

Angled View

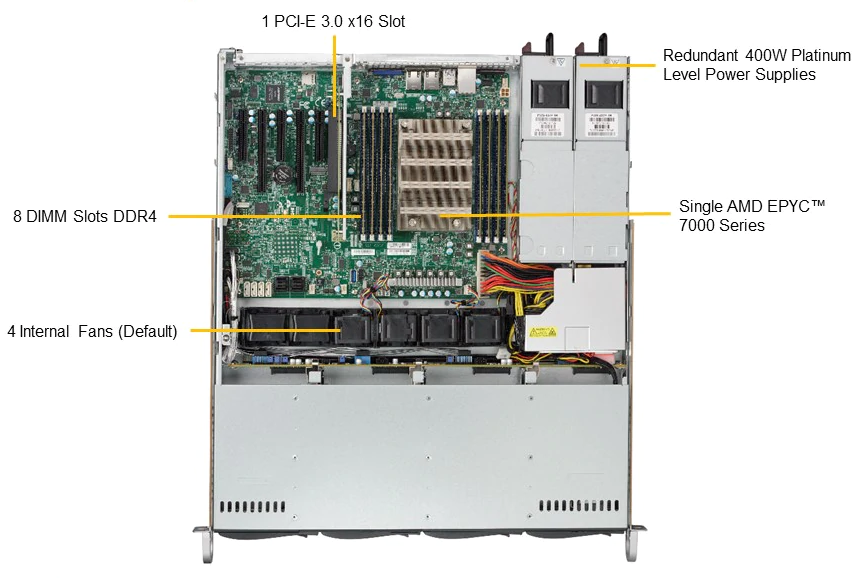

Top View

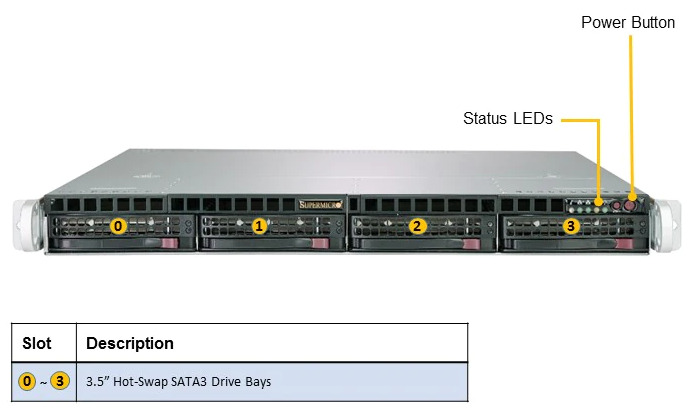

Front View

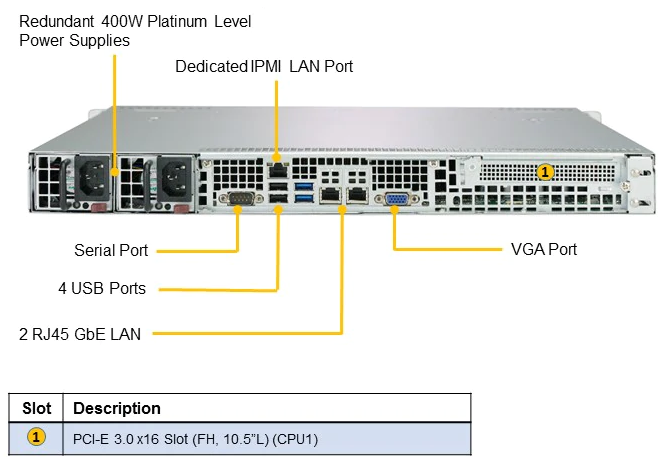

Rear View

Integrated Board:

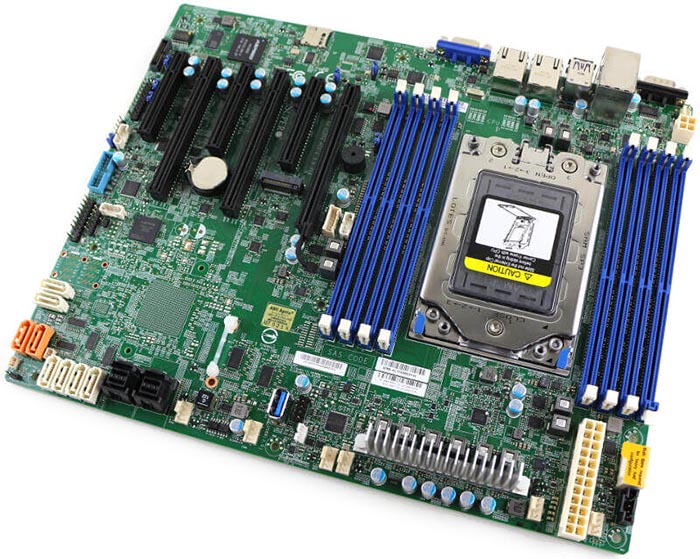

H11SSL-i

Key Features

• Single AMD EPYC 7000-Series Processor
• 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
• Expansion slots:
  • 3 PCI-E 3.0 x16
  • 3 PCI-E 3.0 x8
  • M.2 Interface: 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280, 22110
  • M.2 Key: M-key
• 16 SATA3, 1 M.2
• Dual Gigabit Ethernet LAN Ports
• ASPEED AST2500 BMC graphics
• Up to 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
  Up to 4 USB 2.0 ports (2 rear + 2 via header)
• 7 PWM 4-pin Fans with tachometer status monitoring

H11SSL-i Specifications
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.5cm x 24.4cm)
Processor/Cache
CPU	Dual AMD EPYC 7000-series Processors Socket SP3
Cores / Cache	Up to 32 cores
Chipset	System on Chip
System Memory
Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 1GbE LAN via Intel I210 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Input / Output
SATA	16 SATA3 (6 Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear + 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connector 1 TPM 2.0 header
Expansion Slots
PCI-Express	3 PCI-E 3.0 x8 3 PCI-E 3.0 x16
M.2	Interface: PCI-E 3.0 x4 Form factor: 2280, 22110 Key: M-key
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment
Operating Temperature Range	10°C to 35°C (50°F to 95°F)
Non-Operating Temperature Range	-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)

Parts List - (Items Included)
	Part Number	Qty	Description
H11SSL-i	MBD-H11SSL-i-B	1	H11SSL-i Motherboard
I/O Cable	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00042-0N	1	STD I/O SHIELD FOR X9 SOCKET R SERVER MB
Optional Parts List
	Part Number	Qty	Description
I/O Cable	CBL-SAST-0699	-	MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
TPM security module	AOM-TPM-9655V	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
	AOM-TPM-9655V-S	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT
	AOM-TPM-9665V	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
	AOM-TPM-9665V-S	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; Provisioned for TXT

Videos:

Supermicro A+ Server Solutions

Supermicro’s market leading server solutions now include servers powered by AMD EPYC processors. These servers deliver outstanding performance to power through the most demanding workloads while driving up productivity in your datacenter. The A+ Server solutions, which includes the building block solutions, are available as high-performance two-socket or a powerful single-socket system to drive a variety of use-cases.

Documentation:

Download the Supermicro Next Generation A+ Solutions Datasheet (.PDF)
