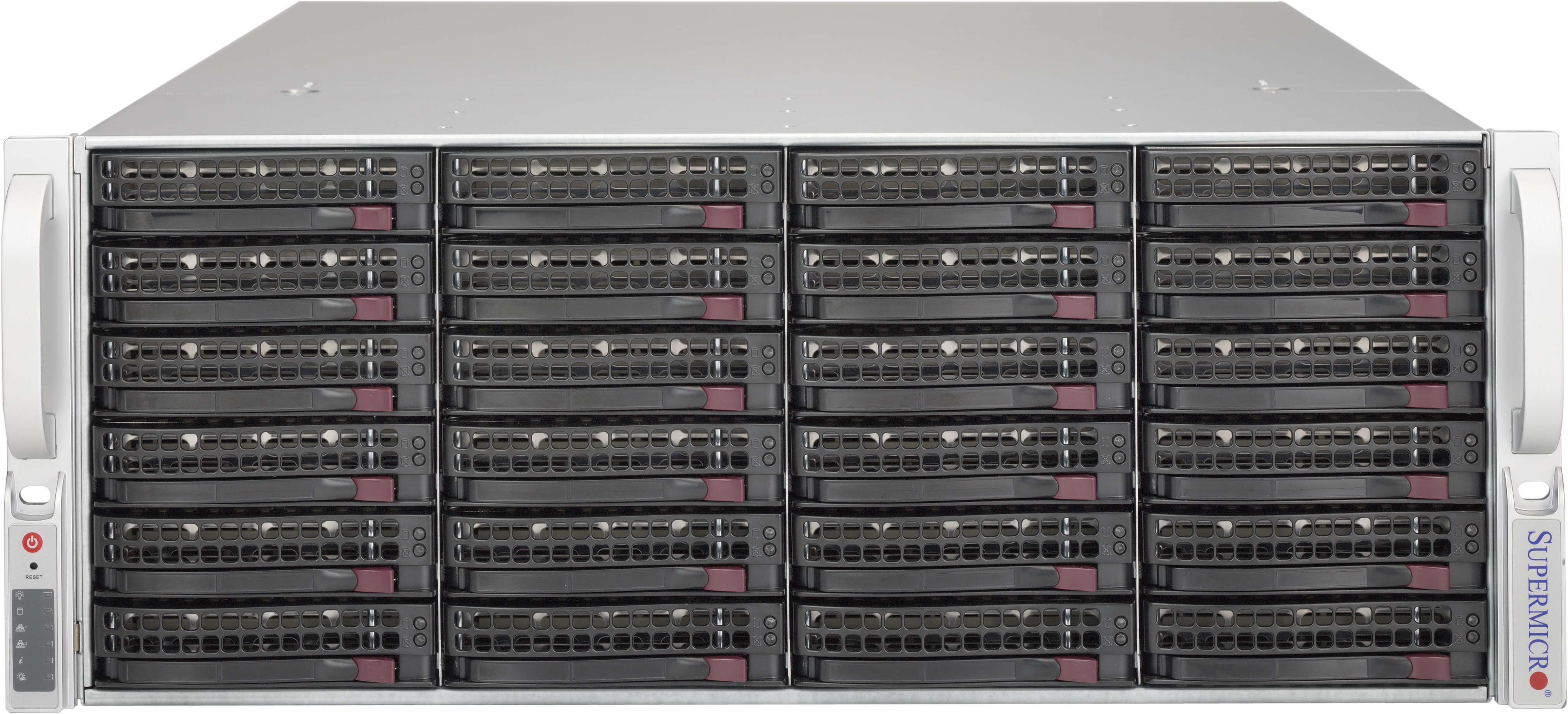

Supermicro SuperChassis 846BE1C-R1K03JBOD
Cloud Backup, Data Replication, or High Density Archive Storage Applications
Supermicro Products
Supermicro SuperChassis
Supermicro SuperChassis 846BE1C-R1K03JBOD Cloud Backup, Data Replication, or High Density Archive Storage Applications
#CSE-846BE1C-R1K03JBOD
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Specifications:
| Product SKUS | |
|---|---|
| CSE-846BE1C-R1K03JBOD | SuperChassis 846BE1C-R1K03JBOD |
| Form Factor | |
| 4U JBOD storage chassis | |
| Drive Bays | |
| 24 x 3.5" hot-swap HDD bays for JBOD solution | |
| Qualified SAS Controllers | |
| AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
|
| Backplane | |
| 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Front Panel | |
| Buttons | Power On/Off button System Reset Button Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs |
| System Cooling | |
| Fan | 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud |
| Power Supply | |
| 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus | |
Pricing Notes:
- Pricing and product availability subject to change without notice.
