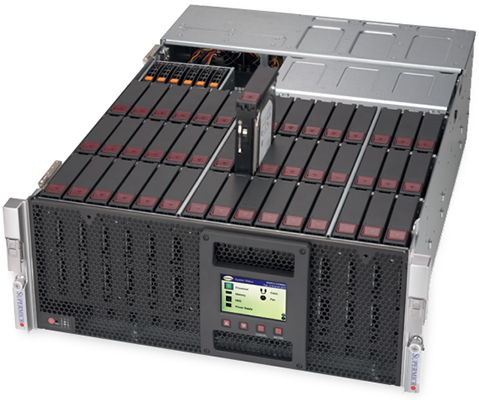

Supermicro Top-Loading SuperStorage 6049P-E1CR45L+
45 Hot-Swap 3.5" SAS3/SATA3 Drive Bays with SES3; 2 Rear Hot-Swap 2.5" Drive Bays
Including Two Intel Xeon Silver 4110 Processor (11M Cache, 2.10 GHz) (P4X-SKL4110-SR3GH), Four 16GB 288-Pin DDR4 2666 Server Memory (MEM-DR416L-SL04-ER26), SIOM 2-port 10GBase-T Ethernet Intel X550 (AOC-MTG-I2T-O), Supermicro Out of Band (OOB) Software License Key (SFT-OOB-LIC)
Our Price: $10,069.00
Click here to jump to more pricing!
Overview:
Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 24 HDDs and 1 NIC or SIOM card).
Key Features
- Corporate Database
- Database Processing & Storage
- Enterprise Server
- HPC, Data Center
- iSCSI SAN
Hardware Features:
- Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
- Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
- 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking)
Note: must bundle with Network card - 45 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5" drive bays; optional 6 NVMe bays
- Broadcom 3616, IT mode, x16 SAS
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 5 Hot-swap 8cm rear exhaust PWM fans
- 1600W Redundant Power Supplies Titanium Level (94%)
SuperStorage Top-Loading - Capacity maximized 45/60/90-bay storage systems optimized for software-defined data centers.
Supermicro top-loading, capacity-maximized storage server family is ideal for use cases such as data replication, data backup, archive and cold storage, video streaming and surveillance, providing customers with more choices to deploy software-defined data centers.
The new SuperStorage system comes with the industry’s most flexible design and features tiered storage packing hot, warm and cold storage in one compact 4U box. It’s the only 45-bay storage server supporting hot-swap NVMe SSDs (6 x U.2) for I/O intensive workloads, highest performance CPUs, up to 3TB of DDR4 memory, and a wide range on-board networking options with SIOM cards. Right-sized for every data center deployment with short depth (less than 26”), easy-to-deploy 45-bay, mainstream 60-bay and extremely dense 90-bay storage servers.
- Complete Portfolio of open industry standard storage offerings optimized for Microsoft, VMWare, RedHat and Software-Defined Storage solutions
- Maximum Performance – Full NVMe support, in hybrid expander and direct-attach storage backplane with up to 20 GB/s throughput
- Maximum Efficiency – High capacity 4U form factors with industry-leading density. Highest efficiency platinum-rated power supplies (95% power efficient)
- Mission Critical Reliability – Fully redundant, fault-tolerant architecture with hot-swappable drive bays, power supplies and cooling fans. The active-active capable JBOD hardware is perfect for mission critical applications
Features:
Executive Summary
Supermicro top-loading, capacity-maximized SuperStorage family is ideal to meet growing capacity challenges, with use cases such as object storage, data backup & replication, archive and cold storage, video streaming and surveillance. The complete offering of dense servers and JBOD enclosures provides customers with more choices to deploy massive capacity in a growing software-defined ecosystem.
This paper details the design advantages of Supermicro’s top-loading SuperStorage family and how our density optimized system deliver the highest performance to support data intensive workloads. In addition offering usability features to improved operational efficiency for high capacity storage deployments.
The High Density Storage Challenge
The key benefit of BigTwin is the no-compromise design. Historically multi-node systems traded off features and capacity for higher density. They were deployed for workloads that did not require the highest performance or the highest memory density on a single node. The new 2U BigTwin design is a breakthrough multi-node system that supports the highest performing CPUs, full 24 DIMMs of memory and up to 24 all-flash NVMe SSD drives.
Drive for Operational Efficiency
So how does one accommodate a tripling of demand for storage in existing facilities? The answer lies with dense devices packed in high density storage systems.

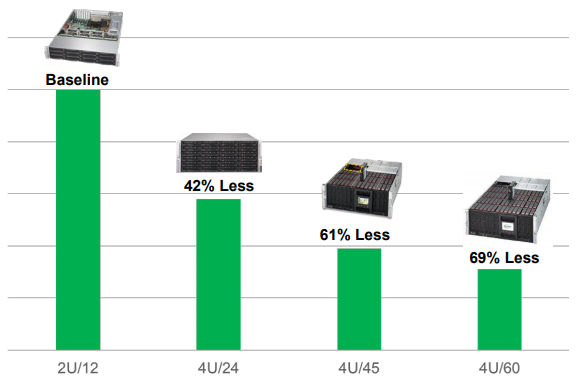

Comparative cost per GB Comparison with traditional front-loading servers
The acquisition cost per GB of a 4U top-loading storage system is approximately 61% percent lower than a traditional 2U 12-bay system, providing a far more economical storage cost model. With similar system configurations (CPU, memory and etc), the toploading system provides an estimated 249GB per watt better power efficiency advantage, when compared to a traditional 2U 12-bay system. This represents around two and a half times more storage capacity per watt, reducing operating costs in data centers.
The Supermicro Top-loading Advantage
Supermicro’s top-loading storage products are built on best-in-class 12GB/s SAS technology providing optimal performance for all SAS/SATA media including SSDs. In a head-to-head benchmark with a competing 60-bay system, Supermicro’s robust design demonstrates aggregate performance advantages with the greatest flexibility in both media and CPU selection. Supermicro leads the top-loading category with support for dual CPUs up to 205W each and up to 3TB of memory across 24 DIMM slots.
Other Tier1 | Supermicro | Why? | |
---|---|---|---|
Processor | 16-22 cores (80W-165W) | Up to 28 core CPU (205W) | Supports intensive workloads - Ability to do more |
Memory | Up to 2 TB (12-16 DIMMs) | Up to 3 TB (24 DIMMs) | Flexible population – From Maximum to Cost Optimized |
Networking | Dual 10GBase-T On board | Flexible SIOM networking | More bandwidth – Up to 3x PCI-E 3.0 x16 |
Disks | 60 HDD + 8 NVMe or 36 HDD+24 SSD + 8 NVMe | 45 or 60 HDD + SSD + 6 NVMe | More bandwidth – Flexible controller options |
Depth (excluding CMA) | 42” | 26” for 45-bay server & JBOD 30” for 60-bay server & JBOD |
Short depth - Fits hyper-scale DC to on premise SMB |
Cooling & Vibration | 4 fans | 5 fans (higher CFM) | Supports More Powerful System - More Performance |
Price / Performance | Single vendor HDD support, fixed configuration. | Media from all vendors (off the shelf), flexible configurations. | Configure to order! – Flexible user choices |

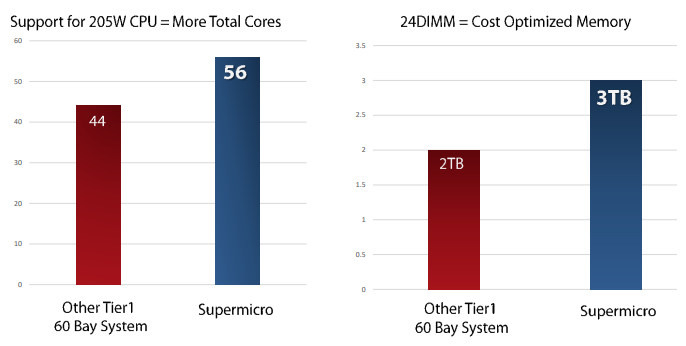

Supermicro supports the fastest x86 CPU and Memory
While other Tier-1 vendors top-loading systems support limited archival applications the Supermicro Top-loading storage server offers the highest x86 specifications for both CPU and memory, making it an ideal platform for the latest software defined storage applications. Supermicro top-loading storage systems support up to the highest performance Intel Xeon Scalable processors with 205W TDP, providing the more cores at higher base frequencies to deliver optimal system performance for both throughput and IOP intensive workloads.
BigTwin’s 96% Efficiency 2200W Power Stick Design

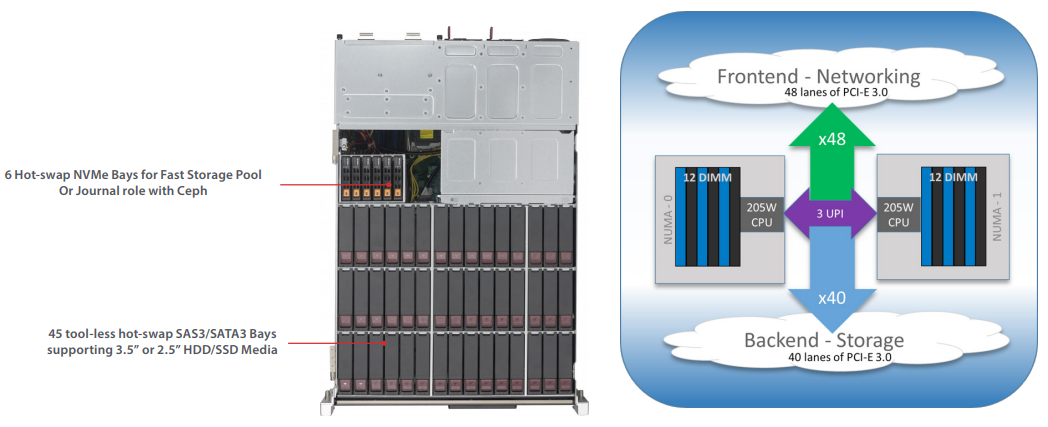

Balanced System Resources for Maximum I/O
With equivalent I/O bandwidth on both the frontend and backend, users get great performance from the start. This also enables advanced users the ability to configure the hardware and optimize their software to meet their application requirements. With 24 DIMM slots, users have most options for memory population, allowing up to 3TB of memory to be installed or the flexibility to populate with lower capacity DIMMs for the best value / TCO.
Innovative technology
Free floating drive bay design not only eliminate weight and vibration from the drives, it also improve system airflow, which allow lower fan speeds, lower noise, and lower power consumption.
Designed for Efficiency & Performance
The optimized opening of the 3.5” drive bay structure provides the best air flow, allowing for efficient heat transfer to cool the drive. This structure also physically supports the media to reduce stress between the drive bays and the backplane, isolating each bay from the rotational vibration of its neighboring drive bay.

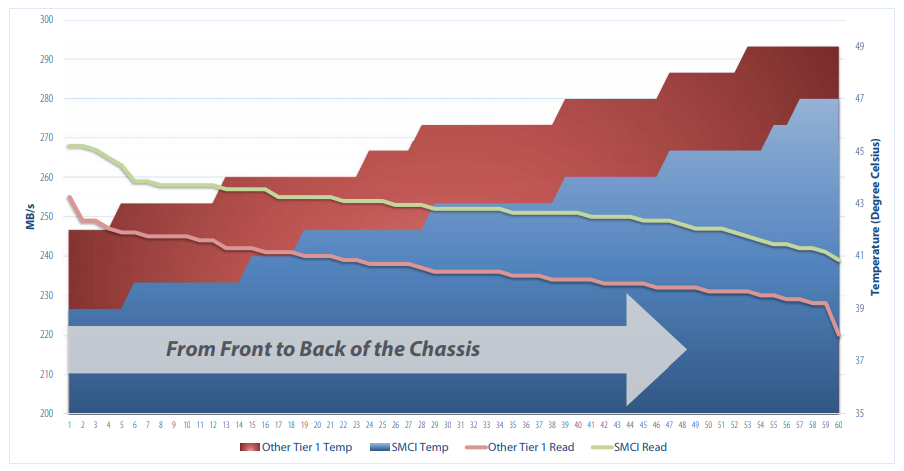

Drive Performance vs Temperature, Supermicro vs Other Tier 1 Competitor

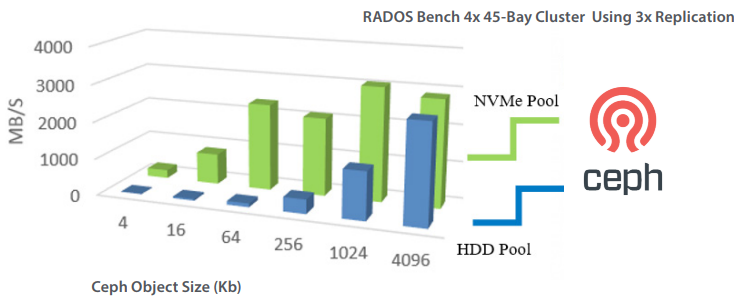

Designed for Mixed Workloads
One of the key server features is the support for up to six NVMe drives. NVMe can deliver a massive performance boost for IOP intensive operations. In application testing using the 45-Bay system with Ceph, we have found that 6x NVMe configured as a fast pool of storage, the NVMe pool has even greater performance than all 45 HDDs. By including NVMe in the design, the Supermicro top-loaders can meet a wider number of application requirements.
Right-depth to Fit Every Rack
The popularity of the mainstream top-loading servers for large scale data centers inspired Supermicro designers to develop a top-loading server family that will fit in any server rack.
The 45- and 60-bay servers offer identical server specification, including Dual Intel Xeon Scalable processors with up to 24 DIMM slots for powerful no-compromise compute performance. The 45-bay server is designed to fit in even the tighest co-location environments with only 26" chassis depth.

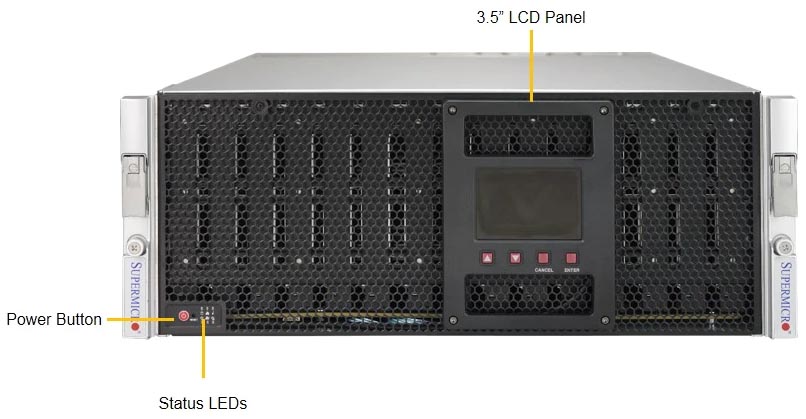

A front-mounted LCD control panel gives the status of all critical components such as power supplies, disk drives, network connections, and environmental monitoring. This makes servicing any failed component much faster, as it can be quickly identified and addressed.
SuperStorage Top-Loading 45- or 60-Bay Storage Server (Front View)
Supermicro onboard SIOM offers flexible high performance networking up to 100GbE, Infiniband, OmniPath, and more while simultaneously saving a PCI-E slot for other add-on cards. Three PCI-E slots are provided; two with 16 lanes, and one with 8 lanes.
SuperStorage Top-Loading 45- or 60-Bay Storage Server (Front View)
This combination of processing power, large memory support, NVMe, and SIOM networking, coupled with the capacity of up to 60 drives, allows these storage servers to handle the most demanding applications. Five rear exhaust fans and two power supplies are provided for redundancy, and all are hot-swappable.
Top-loading JBOD enclosures for storage expansion
The 4U top-loading storage enclosures provide JBOD expansion options with the latest SAS3 12Gb/s expander provided industry best available performance and storage density. Storage expansion can lower overall TCO of storage deployments.
These top-loading enclosures feature double-slide rails with cable management arm for easy access to the each drive bay without interrupting system power and network connectivity. With HDD LED indicators on each drive bay, user can easily locate bad drives and tool-less lock/ release clip make the swap of drive a breeze.
Both SuperStorage systems and JBOD enclsoures can be easily managed via a dedicated IPMI interface with SNMP for remote system power on/off control and system monitoring such as backplane and power supply temperature, power supply health status, and fan speed monitor and control. Standard IPMI protocol allows users to manage multiple systems and JBOD enclosures with a single utility.
High Capacity in a Compact Package
The 45- and 60-bay short depth servers are the ultimate storage products for existing infrastructure or limited colocation facilities. The 45-bay with its compact 26-inch depth makes it very easy to deploy in any rack environment. The server will fit in a standard 40” depth standard rack, even accounting for cable arms. This is substantially less depth than other top loading enclosures and even some of the most popular servers in the market place. This allows a more efficient utilization of space in the datacenter, reducing infrastructure costs.
These storage servers are ideal for enterprise applications such as high capacity container and virtual server applications, HPC, and large scale-out object stores such as Ceph. Because of its feature rich Dual CPU/ 24DIMM main board as well as NVMe support it can handle the most demanding environments.

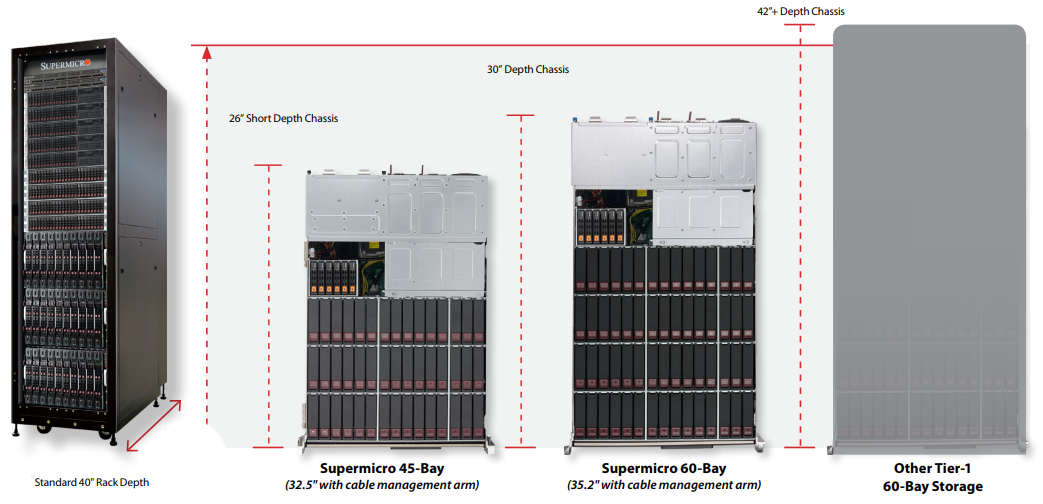

An illustration of server depths in a data center setting
Specifications:
Top-Loading SuperStorage 6049P-E1CR45L+ Specifications | |
---|---|
Motherboard | Super X11DSC+ |
Processor/Cache | |
CPU |
|
Cores | Up to 28 Cores with Intel HT Technology |
System Memory | |
Memory Capacity |
|
Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices | |
Chipset | Intel C621 chipset |
SAS | SAS3 (12Gbps) via Broadcom 3616 AOC; IT Mode, x16 SAS Controller |
SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI |
|
Graphics | ASPEED AST2500 BMC |
Input / Output | |
Serial ATA | 4 SATA3 (6Gbps) ports |
LAN | 1 RJ45 Dedicated IPMI LAN port |
USB |
|
VGA | 1 VGA D-Sub connector port |
Serial Port / Header | 1 Fast UART 16550 port / 1 Header |
System BIOS | |
BIOS Type | AMI UEFI |
Management | |
Software |
|
PC Health Monitoring | |
CPU |
|
FAN |
|
Temperature |
|
Chassis | |
Form Factor | 4U Rackmount |
Model | CSE-946LTS-R1K66P |
Dimensions and Weight | |
Width | 17.2" (437mm) |
Height | 7" (178mm) |
Depth | 26" (660mm) |
Package | 28" (W) x 23" (H) x 42.5" (D) |
Weight |
|
Available Colors | Black |
Front Panel | |
Buttons |
|
LEDs |
|
Expansion Slots | |
PCI-Express |
|
Drive Bays / Storage | |
Hot-swap |
|
Backplane | |
Backplane | SAS3/SATA3 single expander per backplane |
System Cooling | |
Fans | 5 Hot-swap 8cm rear exhaust PWM fans |
Power Supply | |
Power | 1600W Redundant Power Supplies with PMBus |
Total Output Power | 1000W/1600W |
Dimension (W x H x L) | 73.5 x 40 x 265 mm |
Input |
|
+12V |
|
12Vsb | Max: 2A / Min: 0A |
Output Type | 25 Pairs Gold Finger Connector |
Certification | ![]() |
Operating Environment | |
RoHS | RoHS Compliant |
Environmental Spec. |
|
Compliance | |
Compliance | FCC, CE, RCM, VCCI, UL and CB |
Parts List:
Parts List - (Items Included) | |||
---|---|---|---|
Part Number | Qty | Description | |
Motherboard / Chassis | MBD-X11DSC+ | 1 | Super X11DSC+ Motherboard |
CSE-946LTS-R1K66P | 1 | 4U Chassis | |
Add-on Card / Module | AOM-S3616-L-X11DSC-P | 1 | 16-port SAS PCI x16 Controller (Mezzanine),HF,RoHS |
Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD |
BPN-SAS3-946LEL1 | 1 | 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD | |
Cable 1 | CBL-0481L | 2 | SATA,INT,ROUND,ST-ST,81CM,30AWG |
Cable 2 | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH |
Cable 3 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG |
Cable 4 | CBL-PWEX-0863 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S |
Cable 5 | CBL-PWEX-1024 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 45cm,RoHS |
Cable 6 | CBL-SAST-1029 | 2 | SLIMLINE SAS to MiniSAS HD,INT,20CM,34AWG |
Cable 7 | CBL-SAST-1030 | 2 | SLIMLINE SAS to MiniSAS HD,INT,60CM,32AWG |
Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
Power Supply | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF |
FAN 1 | FAN-0184L4 | 5 | 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay) |
Rear Window | MCP-240-94601-0N | - | SC946S rear window w/ 3x LP slots for X10DSC+ |
MCP-290-00132-0N | - | SIOM dummy cover for 226S/826S/946S | |
Optional Parts List | |||
Part Number | Qty | Description | |
6 NVMe Bays | AOC-SLG3-2E4R MCP-220-94607-0N CBL-SAST-0818 CBL-SAST-0850 |
1 1 4 2 |
NVMe AOC SC946S NVMe kits w/ cage, tray, cable, BPN (no NVMe cable)OCuLink v.91,INT,PCIe NVMe SSD, 55CM,34AWG OCuLink to MiniSAS HD V.91, INT, PCIe NVMe SSD, 37CM, 15D15F7D, 34AWG |
Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |
SIOM Network Card(s) | AOC-MGP-I2 AOC-MGP-I4 AOC-MTG-I2T AOC-MTG-I4T AOC-MTGN-I2S AOC-MTG-I4S |
- - - - - - |
SIOM 2-port GbE, Intel i350-AM2 SIOM 4-port GbE, Intel i350-AM4 SIOM 2-port 10GBase-T, Intel X550 SIOM 4-port 10GBase-T, Intel X550 SIOM 2-port 10G SFP+, Intel 82599ES SIOM 4-port 10G SFP+, Intel XL710 |
Views:

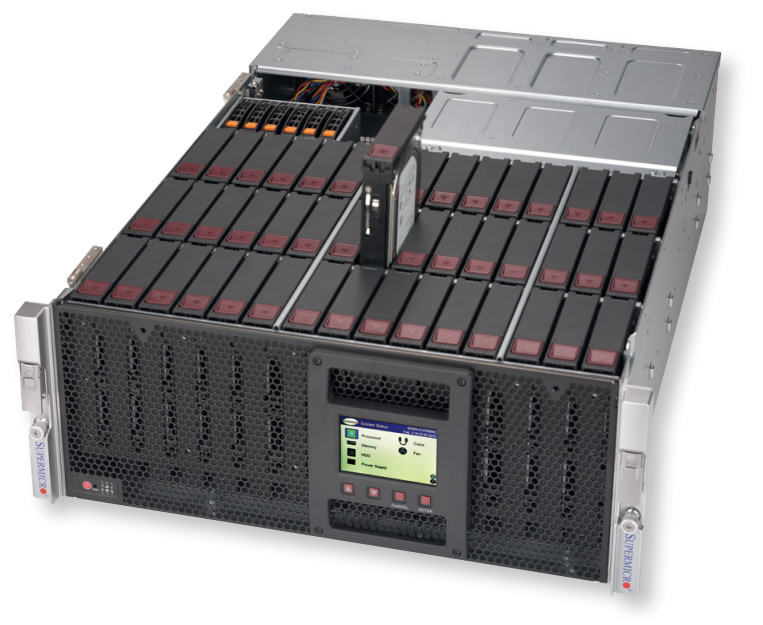

Angled View

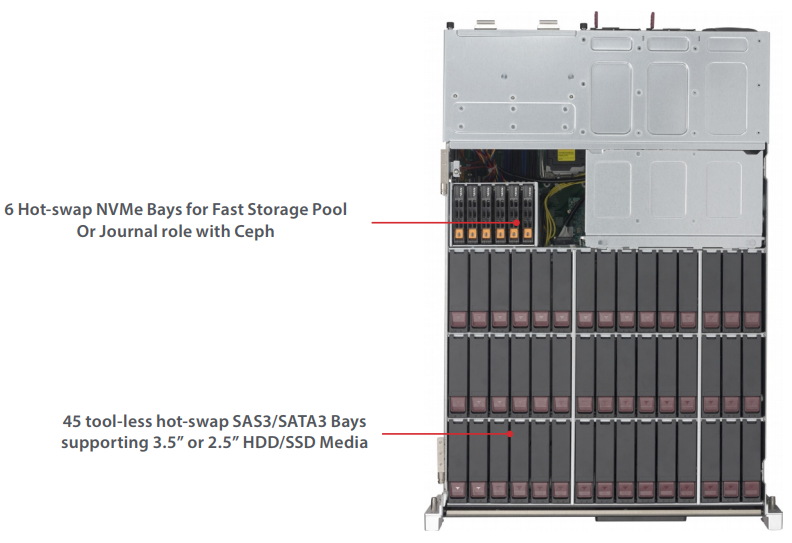

Top View
Front View

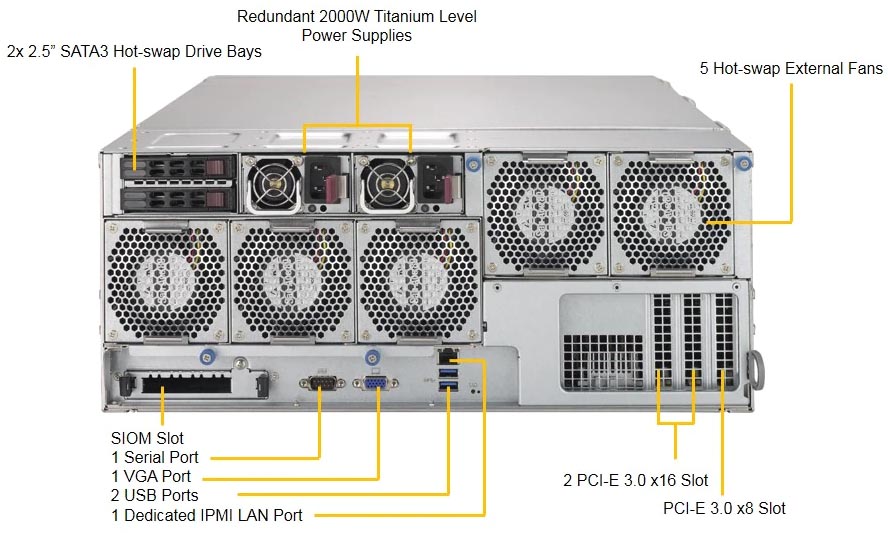

Rear View
Integrated Board:

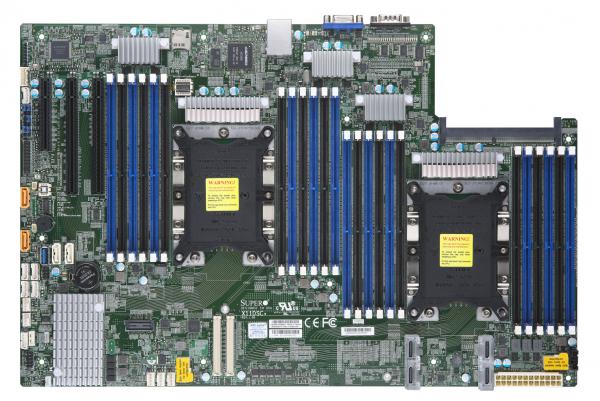

X11DSC+ (For SuperServer Only)
Key Features
- Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
- Intel C621
- Up to 3TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
- Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Intel Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
- 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8+x8 for SAS3 Add-On-Module
- 4 PCI-E 3.0 NVMe x4 Internal Port(s)
X11DSC+ Specifications | |
---|---|
Physical Stats | |
Form Factor | Proprietary |
Dimensions | 16.9" x 11" (42.93cm x 27.94cm) |
Processor/Cache (per Node) | |
CPU |
|
Cores / Cache | Up to 28 cores / Up to 60 MB cache |
System Memory | |
Memory Capacity | Up to 3TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots |
Memory Type | 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
DIMM Sizes |
|
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
On-Board Devices | |
Chipset | Intel C621 |
SATA | Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
IPMI | ASPEED AST2500 |
Network Controllers | N/A |
Graphics | Aspeed AST2500 BMC |
Input / Output | |
SATA | 2 Flexible LAN expansion via SIOM module |
USB | 3 USB 3.0 ports (2 rear + 1 Type A) |
Video Output | 1 VGA D-Sub Connector port |
Serial Port / Header | 1 COM Port (1 rear) |
TPM | 1 TPM Header |
Expansion Slots | |
PCI-E |
|
System BIOS | |
BIOS Type | AMI 32Mb SPI Flash ROM |
BIOS Features | ACPI 6.0 |
Management | |
Software | Intel Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog |
Power Configurations |
|
PC Health Monitoring | |
Voltage | +1.8V, +3.3V, +5V, +5V standby, 5 (4-pin), 5+1 Phase-switching voltage regulator, Chassis intrusion header, Chipset Voltage, Supports system management utility, VBAT |
FAN | 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
Temperature | N/A |
LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID |
Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS |
Operating Environment | |
Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
Videos:
Supermicro SuperMinute: Top Loading Storage Family
At 4U rack space, Supermicro capacity maximized, top-loading family of storage systems are right-sized for every data center deployments with short-depth, easy to deploy 45 Bay, mainstream 60 bay and extreme density 90 bay. With 12 TB hard drives, the top loading storage family delivers over 10 PB capacity per rack.
Documentation:
Download the Supermicro SuperStorage Datasheet (.PDF)
